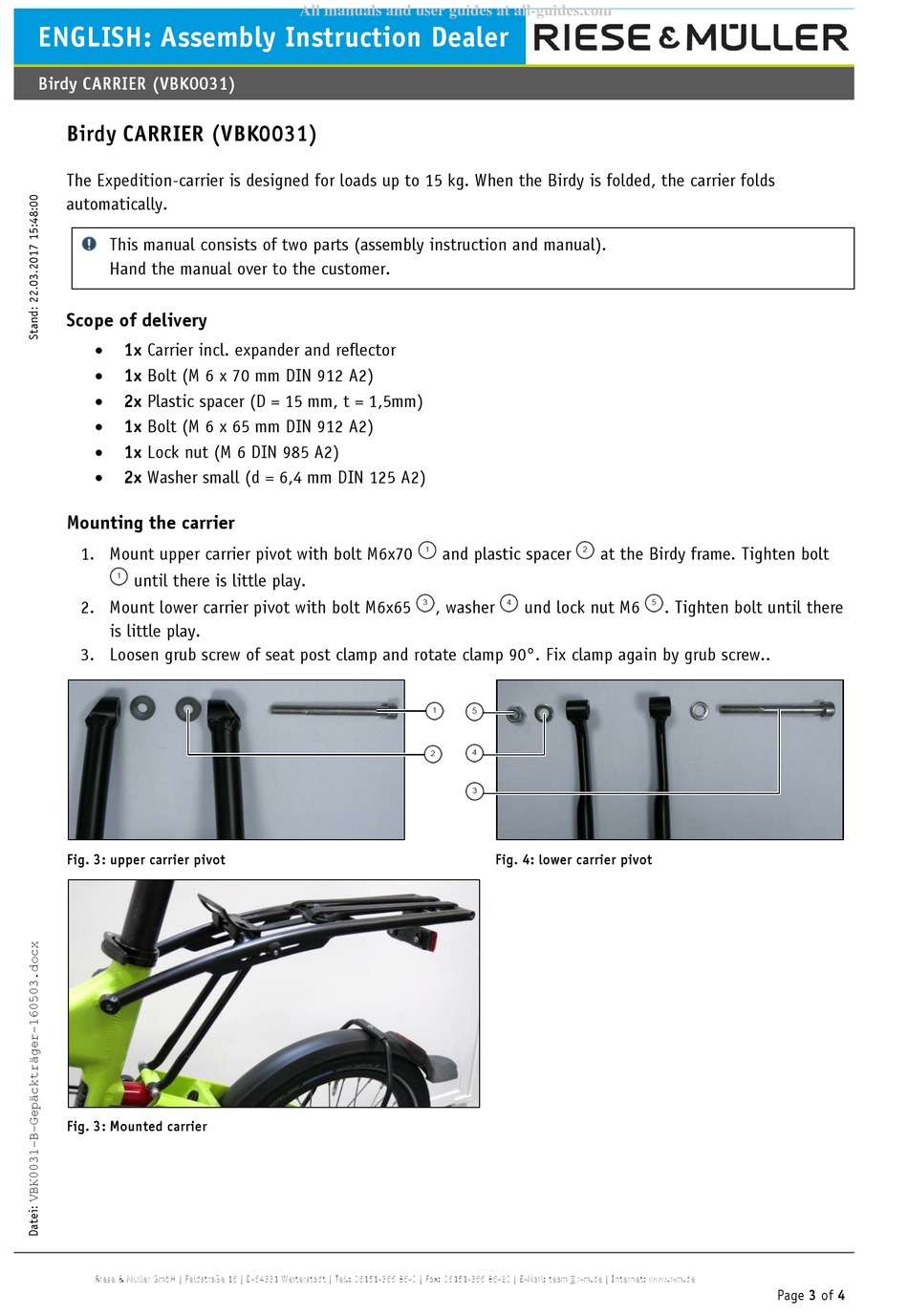

RIESE & MÜLLER Birdy Montageanleitung Seite 3

ENGLISH: Assembly Instruction Dealer
Birdy CARRIER (VBK0031)
Birdy CARRIER (VBK0031)
The Expedition-carrier is designed for loads up to 15 kg. When the Birdy is folded, the carrier folds
automatically.
This manual consists of two parts (assembly instruction and manual).
Hand the manual over to the customer.
Scope of delivery

1x Carrier incl. expander and reflector

1x Bolt (M 6 x 70 mm DIN 912 A2)

2x Plastic spacer (D = 15 mm, t = 1,5mm)

1x Bolt (M 6 x 65 mm DIN 912 A2)

1x Lock nut (M 6 DIN 985 A2)

2x Washer small (d = 6,4 mm DIN 125 A2)
Mounting the carrier
1. Mount upper carrier pivot with bolt M6x70
until there is little play.
2. Mount lower carrier pivot with bolt M6x65
is little play.
3. Loosen grub screw of seat post clamp and rotate clamp 90°. Fix clamp again by grub screw..
Fig. 3: upper carrier pivot
Fig. 3: Mounted carrier
Riese & Müller GmbH | Feldstraße 16 | D-64331 Weiterstadt | Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail: team@r-m.de | Internet: www.r-m.de
All manuals and user guides at all-guides.com
and plastic spacer
, washer
at the Birdy frame. Tighten bolt
und lock nut M6 . Tighten bolt until there
Fig. 4: lower carrier pivot
