Risk of Damage
– Only use the charger supplied to charge the
battery in the hand control.
– Only connect the charger to the mains supply
when the hand control is connected to the
charger.
– Make sure that the voltage specifications
shown on the charger correspond to those of
the mains supply.
A
F
E
1. Insert the jack plug F of the charger C into the jack
socket E on the spiral cable D of the hand control A
until it engages.
2. Insert the mains plug B of the charger into a power
socket.
The red indicator lamp G on the hand control
extinguishes when the battery is sufficiently charged
for next use. It is not possible to overcharge the
battery.
1574469-F
B
G
C
D

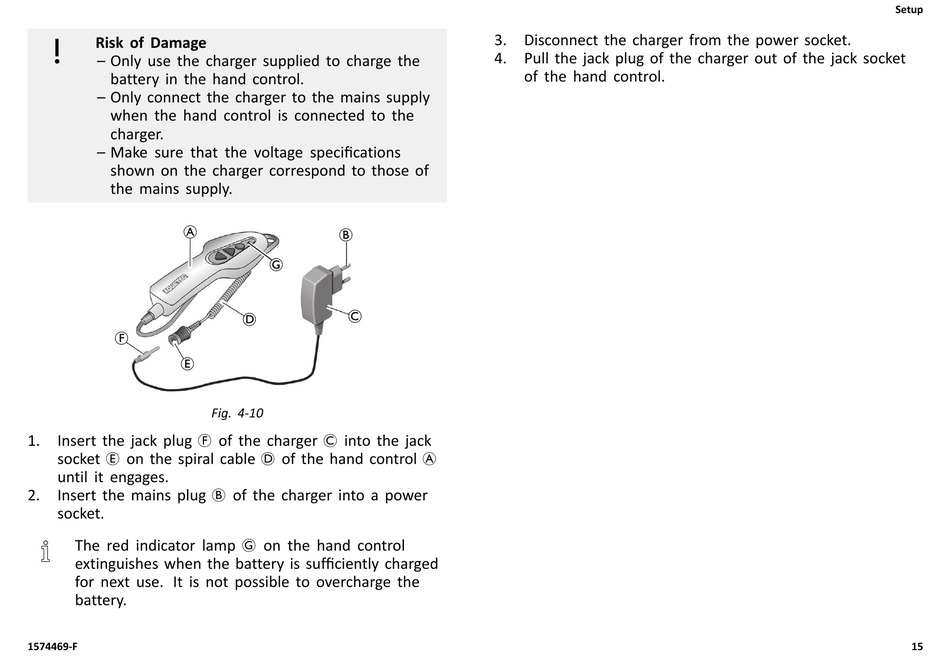

Fig. 4-10
3. Disconnect the charger from the power socket.
4. Pull the jack plug of the charger out of the jack socket
of the hand control.
