Unpack/Pack the Direct Print Module
CAUTION!
Danger of injury by imprudent handling when lifting or placing the printing system.
Do not underestimate the weight of the printing system (9 ... 12 kg).
Protect the printing system against uncontrolled movement.
Lift the direct print module out of the box.
Check the direct print module for transport damages.
Remove the foam transportation safeguards near the printhead.
Check delivery for completeness.
Scope of Delivery
•
Print mechanics.
•
Control unit.
•
Power cable.
•
Connection cable.
•
Mini controller.
•
Manometer.
•
Pneumatic tube.
NOTICE!
Retain the original packaging for subsequent transport.

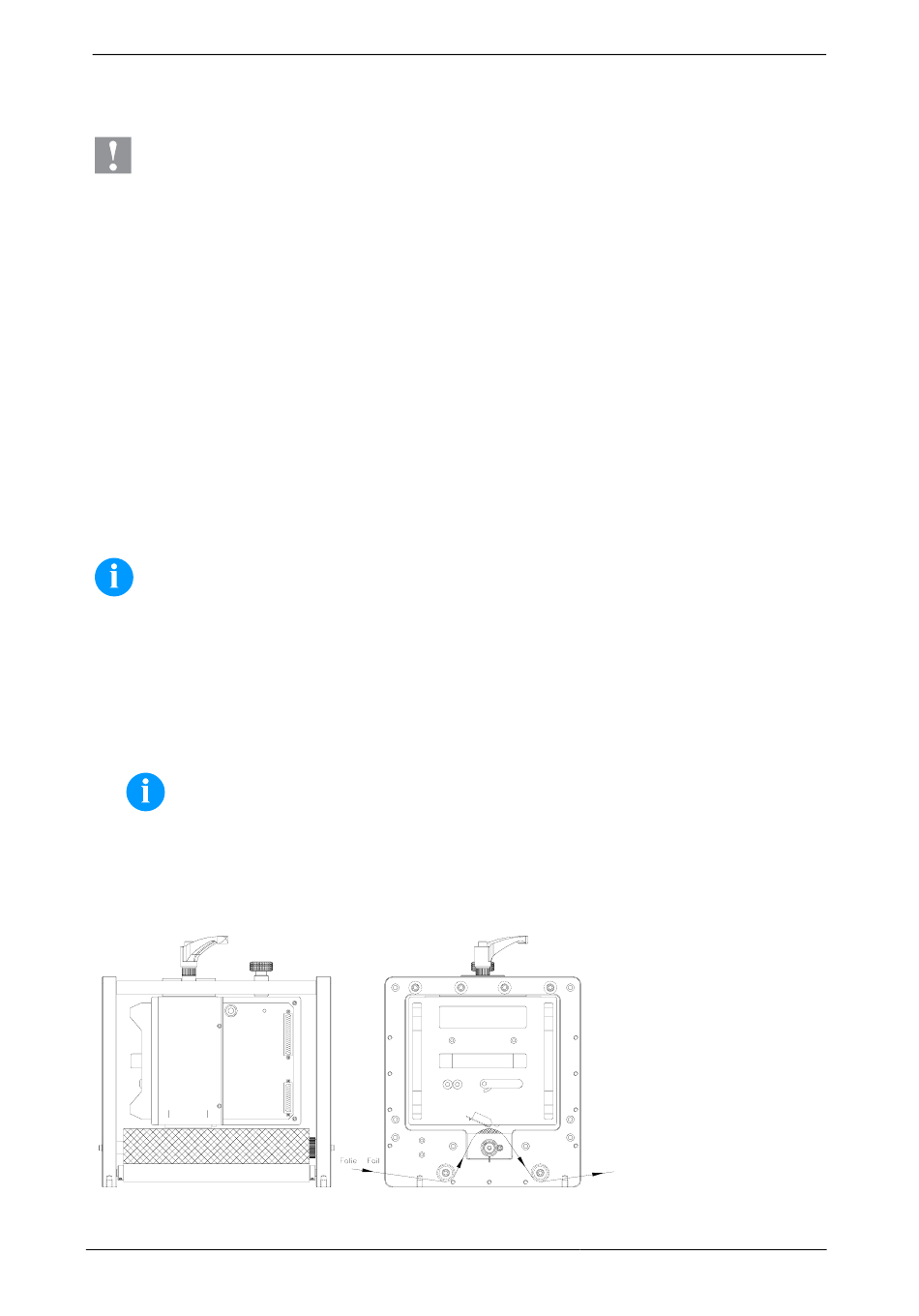

Install the Print Mechanics at Machines (Installation with Mounting Frame)
At the bottom of the mounting frame are two M8 threads that can be used for the attachment at the machine. Additionally multi-
functional connecting parts are supplied. Please observe the following conditions:
•
The maximum thread engagement of the M8 threads is 10 mm.
•
The print mechanics has to be installed with a distance from printhead to brake stator of 1 ... 2.5 mm.
NOTICE!
A distance of 2 mm is recommended.
•
The best print results can be received if the silicon of the pressure roll consists of a hardness of approx. 40° ... 50 ° Shore
A and/or the elastometer of the counter-pressure plate shows a hardness of approx. 60 ± 5 Shore A (average value of
roughness Ra ≥ 3,2 mm).
•
The print surface has to be installed parallel to the linear movement of print unit and the focal line of printhead.
Discrepancies to the focal line and cavities in the print surface can lead to an inferior print quality at these positions.
All manuals and user guides at all-guides.com
•
•
•
•
•
•
•
English
Push-on connector.
I/O accessories (female connectors for I/O)
1 transfer ribbon roll.
Empty core, mounted on transfer ribbon rewinder.
Cleaning foil for printhead.
Documentation.
CD with printer drivers.
Dynacode II
