ISOMETER® isoMED427x-(PT)
Anschlussbild
L
N
Anschlüsse
Separate Anschlüsse von E (Erde) und KE (Kontrollerde) an PE
Anschluss an das zu überwachende IT-System; Versorgungsspan-
nung (siehe Typenschild) über Schmelzsicherung 6 A
isoMED427x:
Anschluss an Temperaturfühler nach DIN44081
isoMED427P-PT:
Anschluss an einen Temperaturfühler PT100 ()
Anschluss an Messstromwandler (STW2)
Anschluss für externe Test-Taste
RS-485-Schnittstelle
Terminierung Schalter R (on/off)
Alarm-Relais K1

Vorgehen beim Anschluss

1. Klemme E und KE an Erde (PE) anschließen.
2. Klemme A und B an BMS-Bus anschließen. Der BMS-
Bus muss an seinen Enden terminiert sein!
3. Messstromwandler an Z/k und l anschließen.
4. Temperatursensor an Z und Z/k anschließen.
5. Klemme L1 an L1 des IT-Netzes anschließen
(mit 6 A-Sicherung).
6. Klemme L2 an L2 des IT-Netzes anschließen
(mit 6 A-Sicherung).
7. Meldeausgänge 11/12/14 anschließen.
4
isoMED427x_D00440_01_Q_DEEN / 11.2023
STW2
Z
ON
6A
6A
T
T1

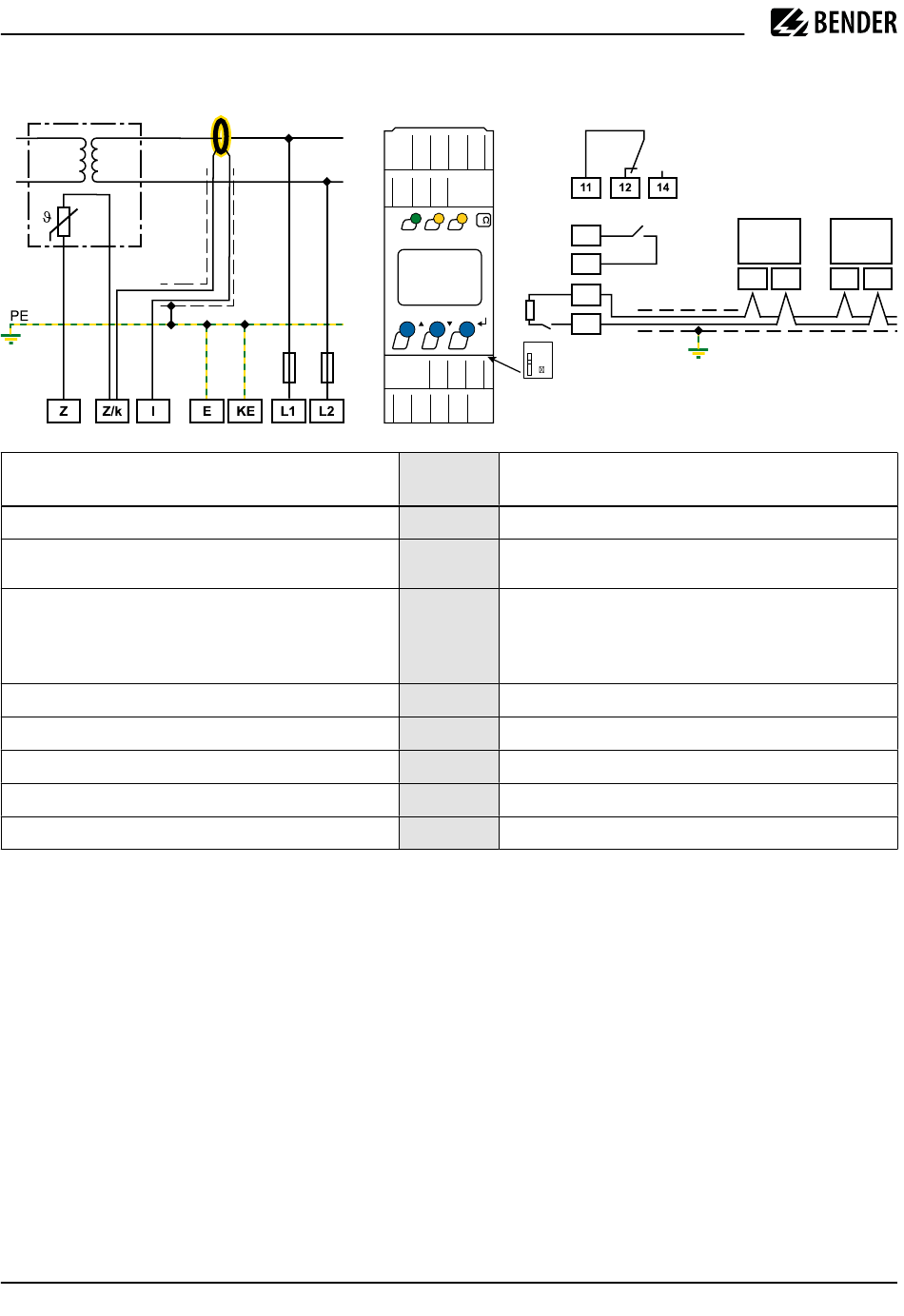

Wiring diagram

E KE L1 L2
Z/k
l
k
AL1
AL2
T1
T2
A
R
B
R
MENU
R
on
o
12
11
14
T2
A
B
Klemme /
Terminal
E, KE
Separate connections of E (earth) and KE (control earth) to PE
Connection to the IT system to be monitored; supply voltage (see
L1, L2
type plate) via fuse 6 A
isoMED427x:
Connection to PTC acc. to DIN44081
Z, Z/k
isoMED427P-PT:
Connection to PT100
Z/k, l
Connection to CT (STW2)
T1, T2
Connection to external test switch
A, B
RS-485 interface
R
Termination switch R (on/off)
11, 12, 14
Alarm relay K1

Connection procedure

1. Connect terminals E and KE to earth (PE).
2. Connect A and B to the BMS bus. The BMS bus must
be terminated at its ends!
3. Connect the measuring CT to Z/k and l.
4. Connect the temperature sensor to Z and Z/k.
5. Connect terminal L1 to L1 of the IT system
(with a 6 A fuse).
6. Connect terminal L2 to L2 of the IT system
(with a 6 A fuse).
7. Connect the alarm outputs 11/12/14.
