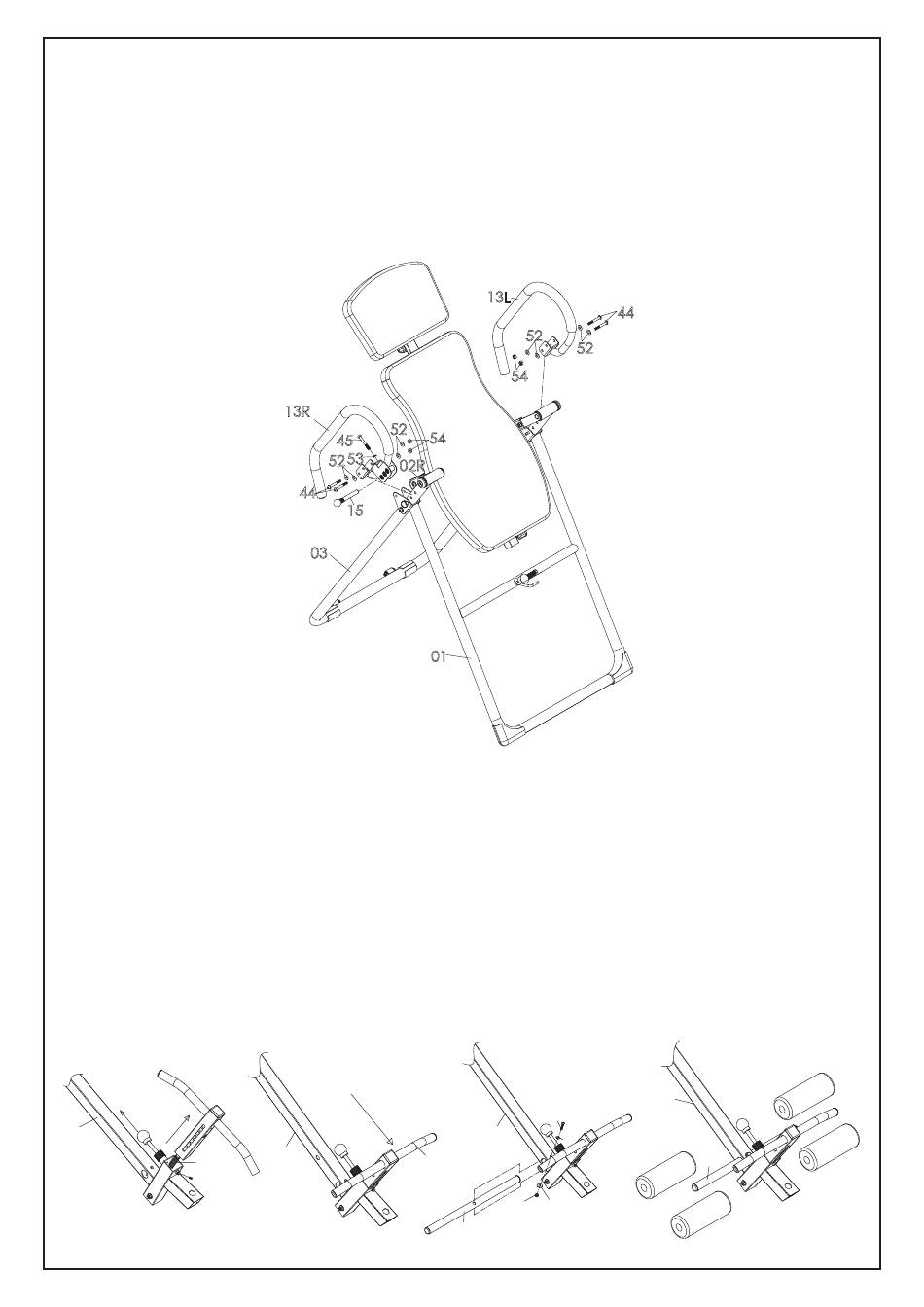

Step 5
Install the Left handlebar (13L) to the left side of the main frame, then secure it with 2 M8*55mm
Allen bolts (44), 4 M8 Flat washers (52) and 2 M8 Nylon nuts (54).
Install the Right handlebar (13R) to the right side of the main frame, then secure it with 2
M8*55mm Allen bolts (44), 4 M8 Flat washers (52) and 2 M8 Nylon nuts (54). Also secure it with
1 M8*50mm Allen bolt (45) and 1 M8 Arc washer (53). Then Screw in Knob Pin (15)
Step 6
Take the pre-assembled of Height adjustable tube (05), Pull up the Ankle brace lock pin (20), at
the same time, pull the Adjustable ankle brace (04) out of the Height adjustable tube (05)
SLOWLY. Rotate it 90 degrees counter-clockwise so that the holes face toward the Ankle brace
lock pin (20). Insert the Adjustable ankle brace (04) back into the Height adjustable tube (05),
then release Ankle brace lock pin (20) and screw 1 M6*15 Hex bolt (40).
Slide the Foam tube (12) to the Height adjustable tube (05). Then secure it by using 1M6*45mm
Allen bolt (39), 2 M6 Flat washers (50) and 1 M6 Nylon nut (51). Slide the two Foam rollers (25)
onto the Adjustable ankle brace (04) and another two Foam rollers (25) on the Foam tube (12).
