ergoline Vertical Turbo Power Montageanweisung Seite 50

50

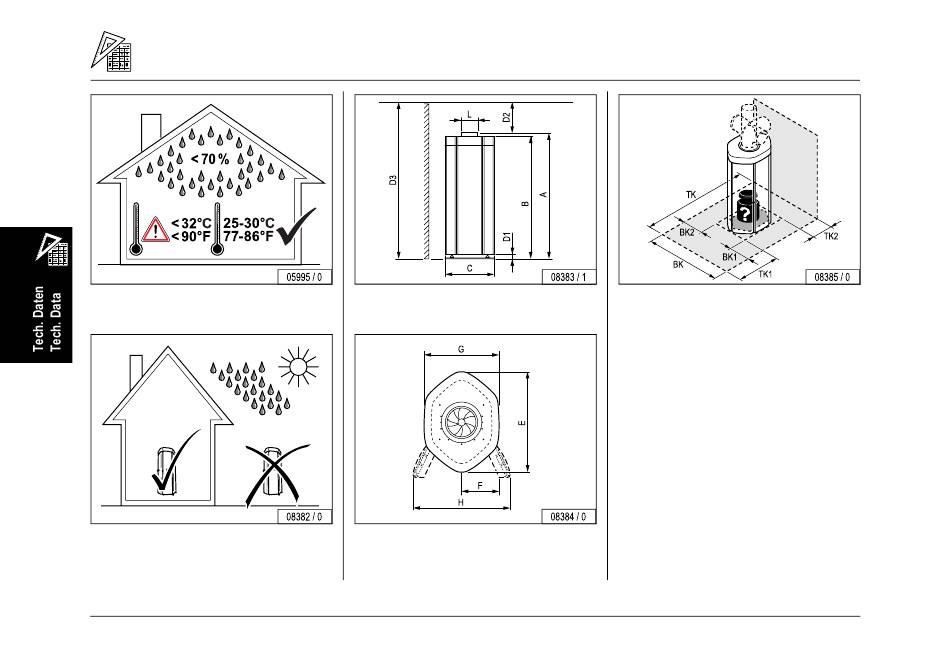

A = 2410 mm TK = 2400 mm
B = 2330 mm TK1 =
C = 1220 mm TK2 =
D1 = 65 mm BK = 1935 mm
D2 = 500 mm BK1 =
D3 = 2910 mm BK2 =
E = 1220 mm ? =
F = 480 mm
G = 935 mm
H = 1220 mm
L ∅ = 500 mm
880 mm
300 mm
500 mm
500 mm
150 kg
