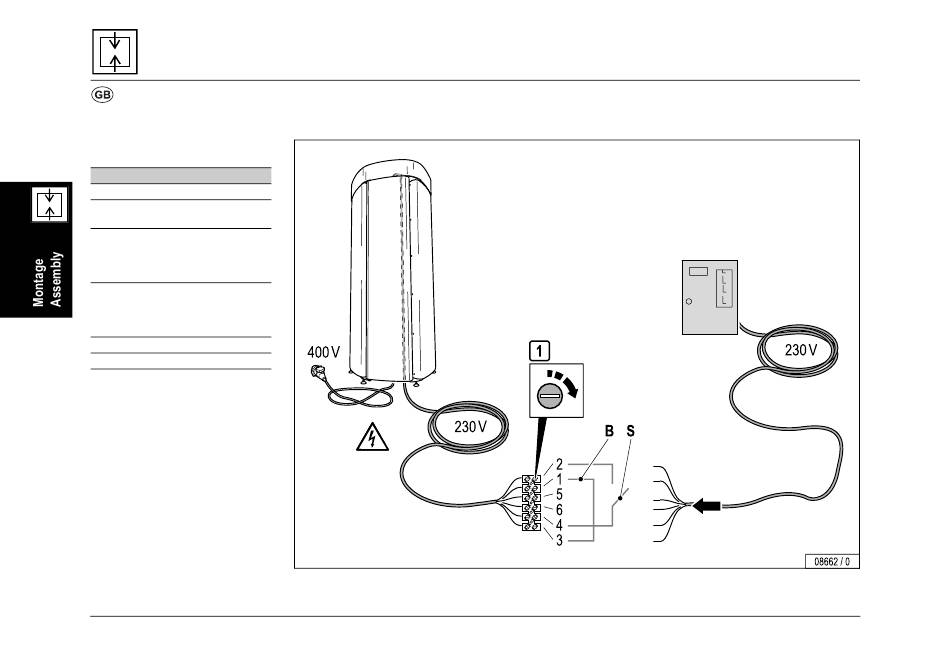

Connecting a coin device
230 Volt
B = Bridge
S = Remote start
No. Colour
1 white N
L
2 brown
230V AC
N1
Input 230 V AC
3 green
For start from external
control
L1
Input 230 V AC
4 yellow
For start from external
control
5 pink Internal Start
6 gray Internal Start
42
...
