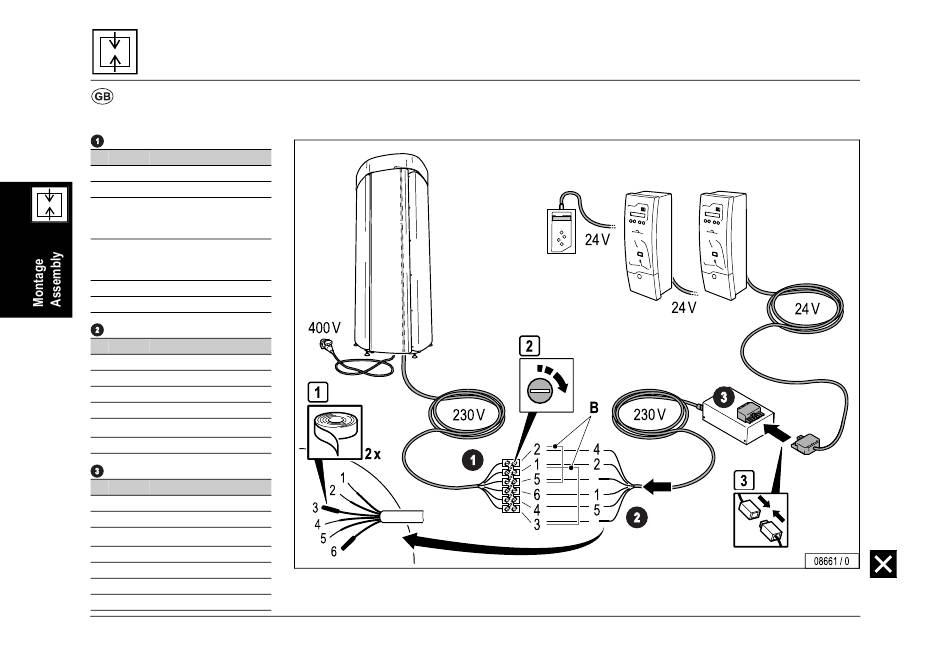

Ergoline Coin Devices 24V

B = Bridge
No. Colour Description
1 white N
2 brown L 230V AC
N1
3 green Input 230 V AC
For start from external control
L1
4 yellow Input 230 V AC
For start from external control
5 pink Internal Start
6 gray Internal Start
No. Colour Description
1 Input 230V (L1) Remote start
gr/ye Grounding equip. conductor
2 Mains 230V (N)
3 Output 230V (L1) fan
4 Mains 230V
5 Output 230V (L1) lamps
No. Colour Description
LI orange
PE Shielding
N yellow
B5 red
T6 brown
T7 green
T8 black
44
MCS III plus MCS IV plus MCS VI
