Configuration examples
In series

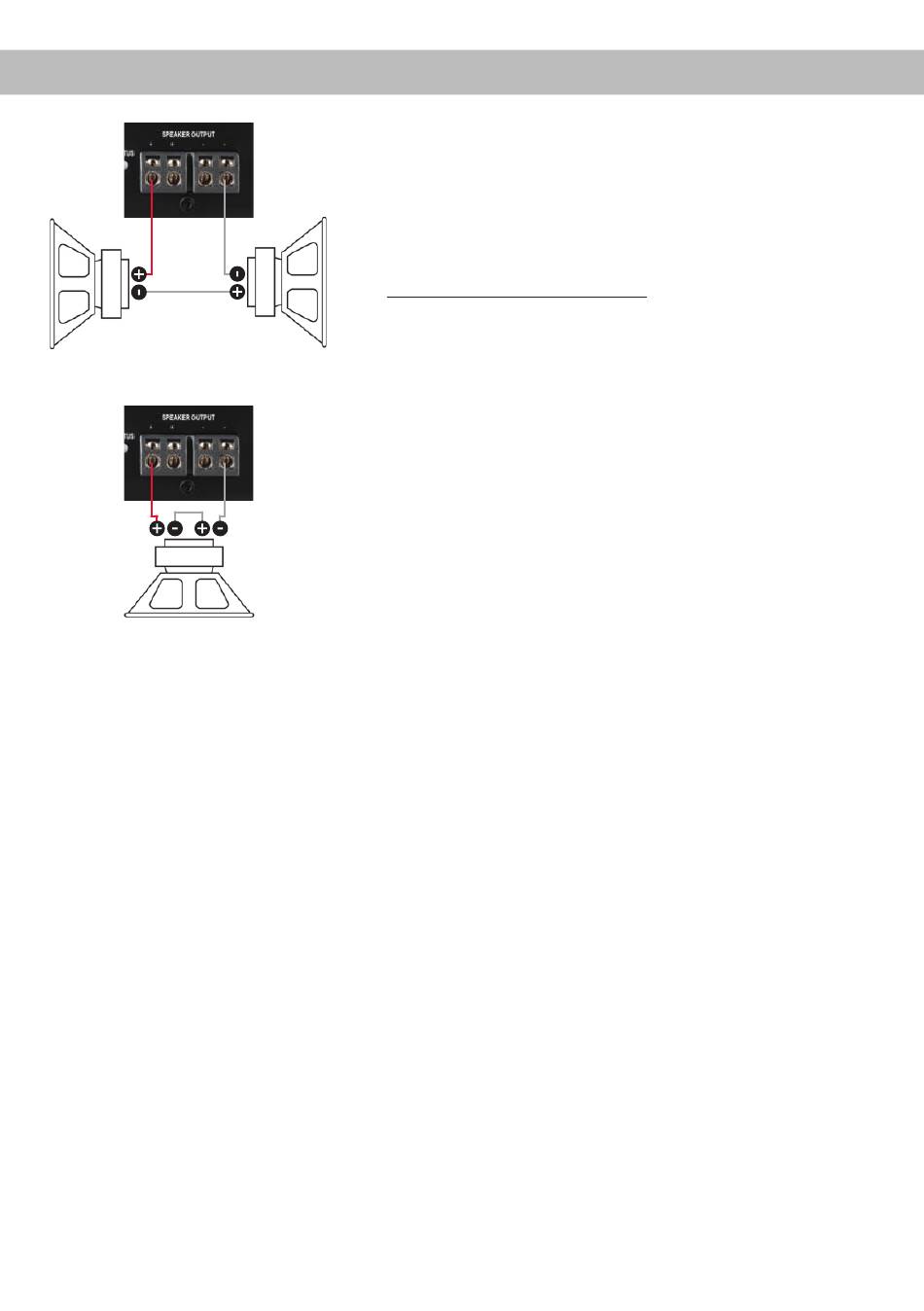

Two subwoofers with one voice coil (single voice coil) or one
subwoofer with dual voice coil are connected in series.
Note: The connection of two voice coils in series will result in
doubling the impedance!
RMS output power ≤ 1% THD+N:
Two subwoofers with 1 x 2 Ohms correspond to a total
impedance of 4 Ohms: 350 Watts
Zwei Subwoofer mit einer
Schwingspule
(Single Voice Coil)
One Subwoofer with 2 x 2 Ohms also corresponds to a total
impedance of 4 Ohms: 350 Watts
Two subwoofers with 1 x 1 Ohm correspond to a total
impedance of 2 Ohms: 600 Watts
One subwoofer with 2 x 1 Ohm also correspond to a total
impedance of 2 Ohms: 600 Watts
Note: The negative terminal of the first voice coil has to be con-
nected to the positive terminal of the second voice coil by using
Ein Subwoofer mit
a speaker wire with the same gauge as the other speaker.
Doppelschwingspule
(Dual Voice Coil)
