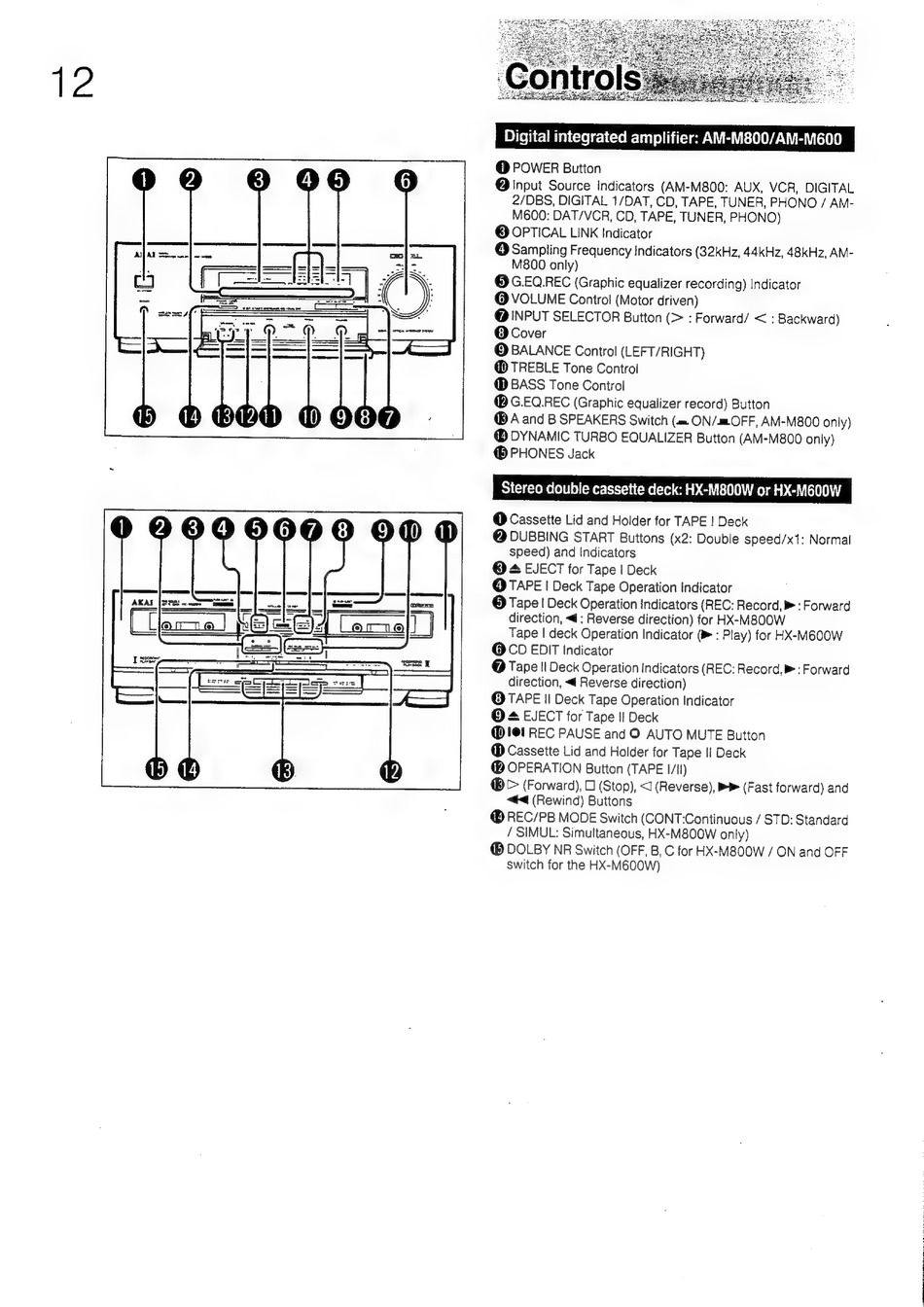

12
@ POWER Button
© OPTICAL LINK Indicator
@ VOLUME Control (Motor driven)
@ Cover
@ BALANCE Control (LEFT/RIGHT)
@ TREBLE Tone Control
@ BASS Tone Control
@G.EQ.REC (Graphic equalizer record) Button
® PHONES Jack
@ Cassette Lid and Hoider for TAPE | Deck
© 4 EJECT for Tape | Deck
QO TAPE | Deck Tape Operation Indicator
@CD EDIT Indicator
@ TAPE II Deck Tape Operation Indicator
© & EJECT for Tape I! Deck
@® Cassette Lid and Holder for Tape I] Deck
@ OPERATION Button (TAPE I/Il)
