Calibration 7/4pH
o
§
§
Man Temperature 25 ° C
o
§
§
•
Save and escape Program setup with ESC key
Exit
o
§
Priming
o
•
Priming Pump Keep Press
1) Input pH or Redox Probe
2) Input Temperature Probe (PT100)
3) Input Level Probe (Product Tank)
4) Input Flow Rate (High Voltage 230 Vac)
5) Output Relay Alarm remote (Dry contact,
Relay 250 Vac 10 A)
6) Output Relay Drive Solenoid Valve (Dry
contact, Relay 250 Vac 10 A)
7) Power Supply 230 Vac
8) Switch Power Supply
9) Connection to a chlorine generator (example)
10) Port connection for the ModBus communication
ModBus connetion
Pin N° Description
1 T+R+ (B)
2 T-R- (A)
3 GND
4 Not used
Code 0000138008
Adjust value and
It's possible to select 2 points 7 and 4 pH, 1 point only 7pH or function disable; for
Redox function disable only.
Adjust value and
pH measure only.
save
Adjust value with
for 3 seconds

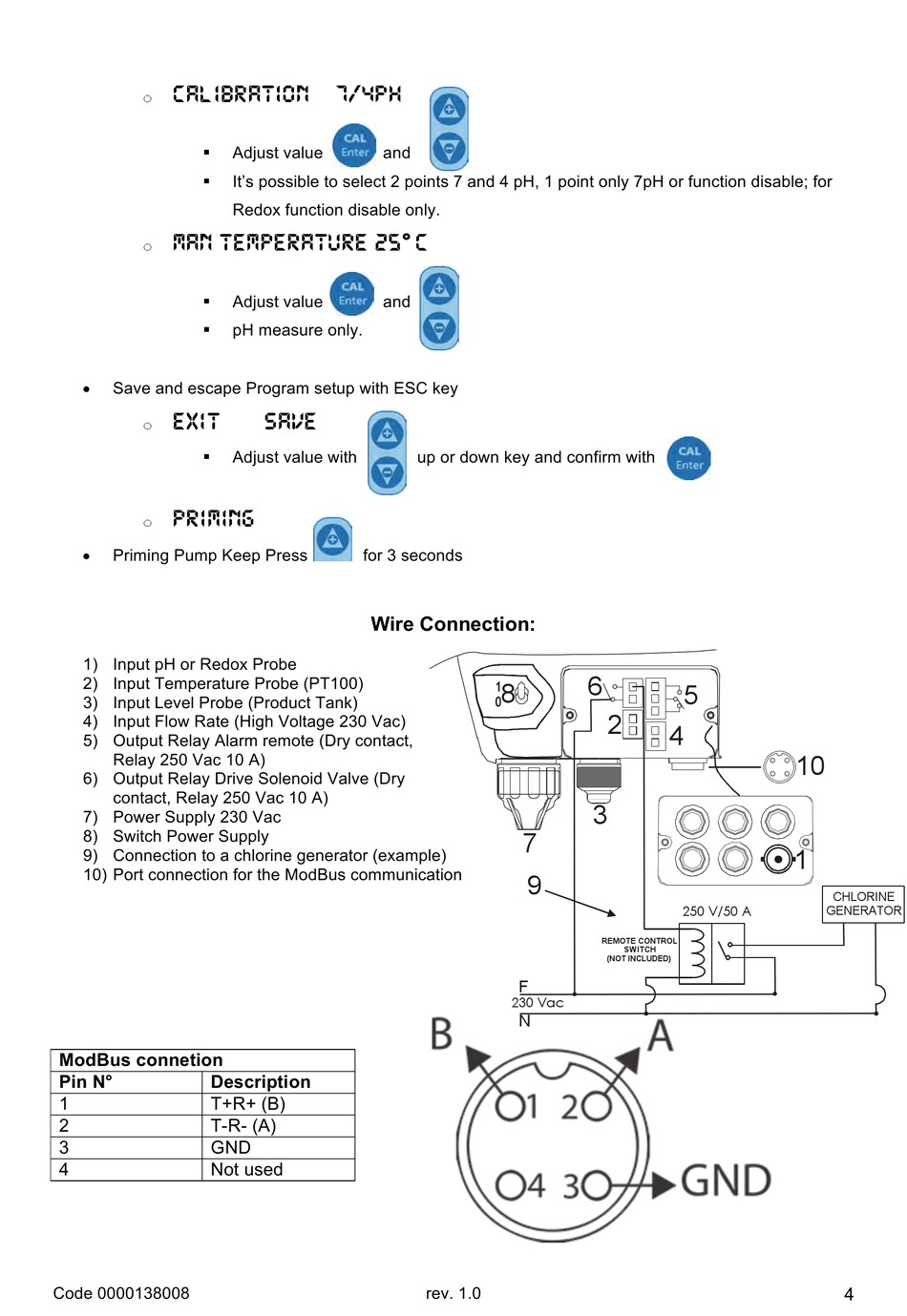

Wire Connection:
up or down key and confirm with
6
8
7
9
F
230 Vac
N
rev. 1.0
5
2
4
3
250 V/50 A
REMOTE CONTROL
SWITCH
(NOT INCLUDED)
10
1
CHLORINE
GENERATOR
4
