3.4 Mounting the accessories

3.4 Mounting the accessories
1
2
3

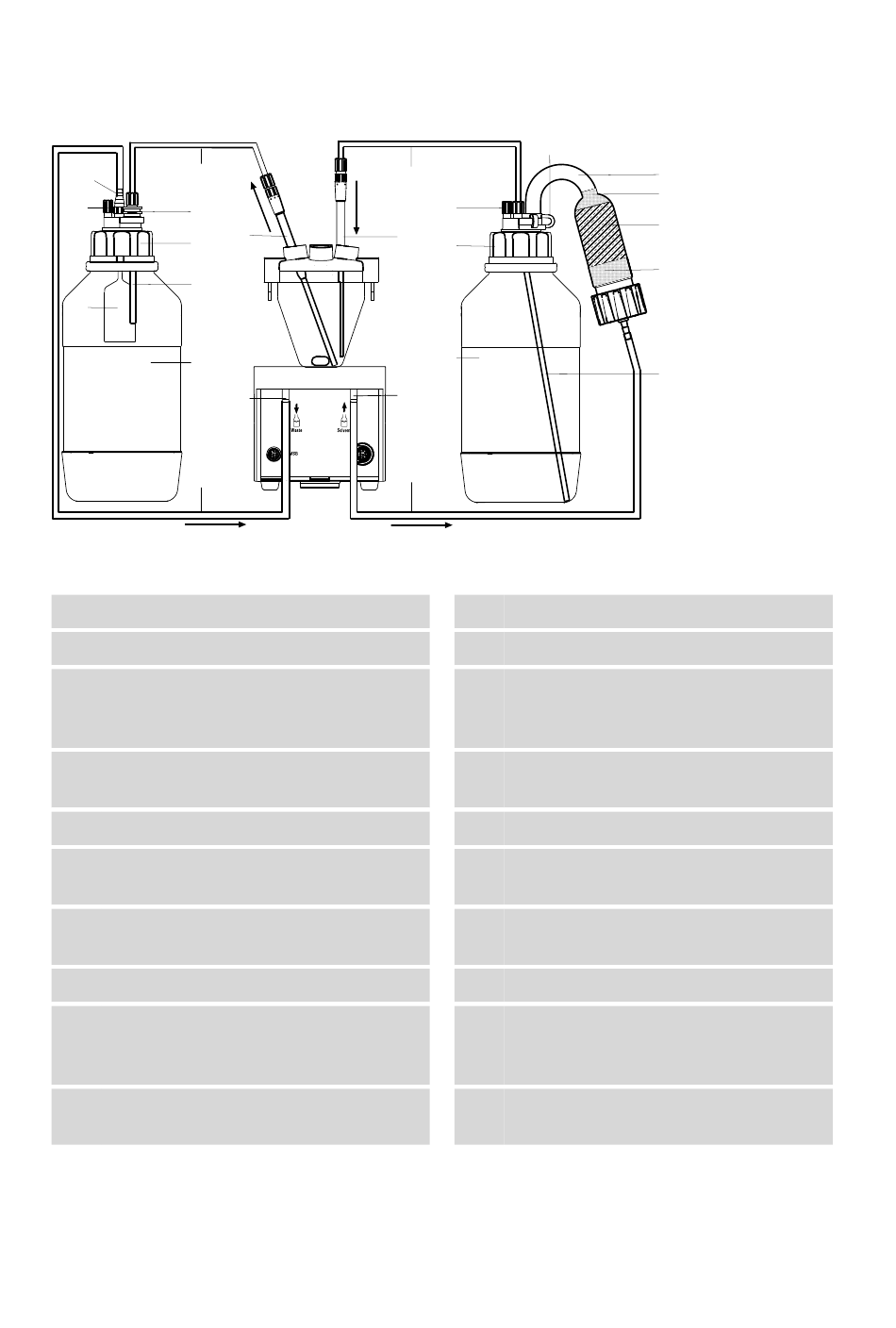

Figure 5

803 Ti Stand with volumetric titration vessel and equipment for automatic reagent
exchange.
1 Tubing adapter 6.1808.050
3 Overflow protection 6.1623.000
5 Stopper 6.1446.090
7 Cannula 6.1819.050
9 PVC tubing 6.1801.120
11 Connection nipple for PVC tubing
For aspirating the titration vessel content.
13 Transfer tip 6.1543.110
15 PVC tubing 6.1801.120
17 Bottle attachment 6.1602.105
For direct dosing out of the reagent bottle
with GL 45 thread.
19 SGJ clip 6.2023.020
￭￭￭￭￭￭￭￭
12
4
5
10
6
7
8
11
9
19
12
16
13
17
18
14
15
2 Threaded stopper 6.1446.040
4 PTFE tubing 6.1805.200
6 Bottle attachment 6.1602.105
For direct dosing out of reagent bottles with
GL 45 thread.
8 Amber glass bottle 6.1608.030
Waste bottle.
10 Aspiration tip 6.1543.120
12 PTFE tubing 6.1805.200
14 Connection nipple for PVC tubing
For aspirating solvent.
16 Threaded stopper 6.1446.040
18 Amber glass bottle 6.1608.023
Solvent bottle
20 Adsorber tube with tubing nipple
6.1609.010
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
20
21
22
21
23
803 Ti Stand
