INSTRUCTION MANUAL
Mounting the bonding
version
This type of mounting requires the parts provided
in the bonding version of the Rotoclear S3.
The unit can be glued to laminated glass or poly-
carbonate panes that do not have a special non-
stick coating. Please note the additional mounting
steps for gluing to polycarbonate.

Mounting steps

The following steps take approx. 1 hour in total.
The adhesive takes at least 6 hours to cure.
Be sure to observe the prescribed curing time of
the adhesive as well as the tightening torques.
Clean the inside of the machinery glass (Fig.
1-A) at the place of installation extensively with a
grease-dissolving agent (e.g. isopropyl alcohol
or Terostat 450). The glass side of a laminated
glass pane can also be cleaned with acetone. Do
not use acetone on polycarbonate, as it corrodes
and damages the plastic! Clean with a dry, clean
and lint-free cloth without leaving any residue. The
pane must be clean, grease-free and dry.
Determine the position of the Rotoclear S3
and mark the outer limit and the horizontal posi-
tion with a marker on the inside of the machinery
glass.
Additional steps when gluing to polycarbonate
Carefully apply the adhesive template,
smooth it out and remove the backing film.
Apply a single coat of primer (Fig. 1-B) to the
ring surface and allow to flash off for at least 10
minutes. Make sure that no droplets form.
Now remove both the inner and outer parts
of the adhesive template.
Subsequent steps for both laminated glass and
polycarbonate panes

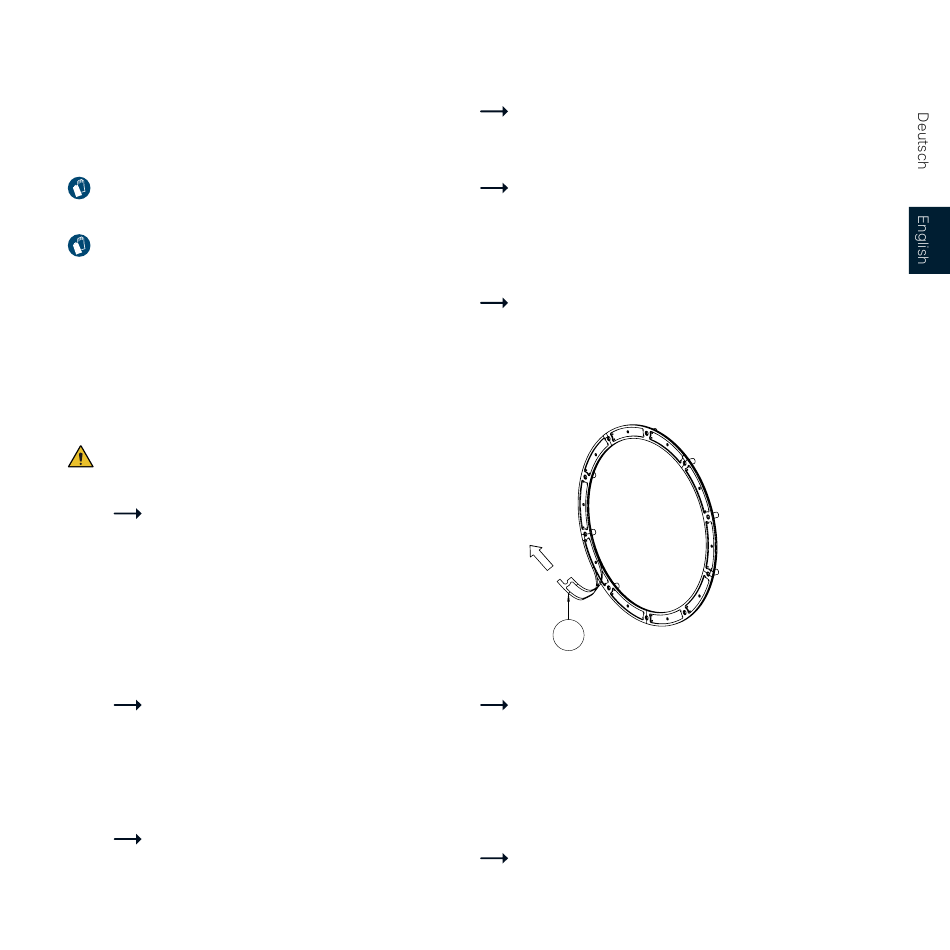

Unpack the adhesive-mounted flange (Fig.
1-C) and remove the protective film (Fig. 2-A) (5 ×)
from the adhesive pads on the back. For the best
adhesive results, please do not touch the side of
the flange facing the machinery glass with your
bare fingers.
A
Figure 2
Place the adhesive-mounted flange (Fig.
1-C) on the inside of the pane, adjusted to the de-
sired orientation and according to the labelling
on the adhesive flange, and correct if necessary.
Then, press the flange down firmly over its entire
surface so that no adhesive can escape during
the injection process in the following steps.
Check the expiry date of the two-component
adhesive (Fig. 3-A). Never use adhesive that is
past its expiry date.
