ROTOCLEAR S3

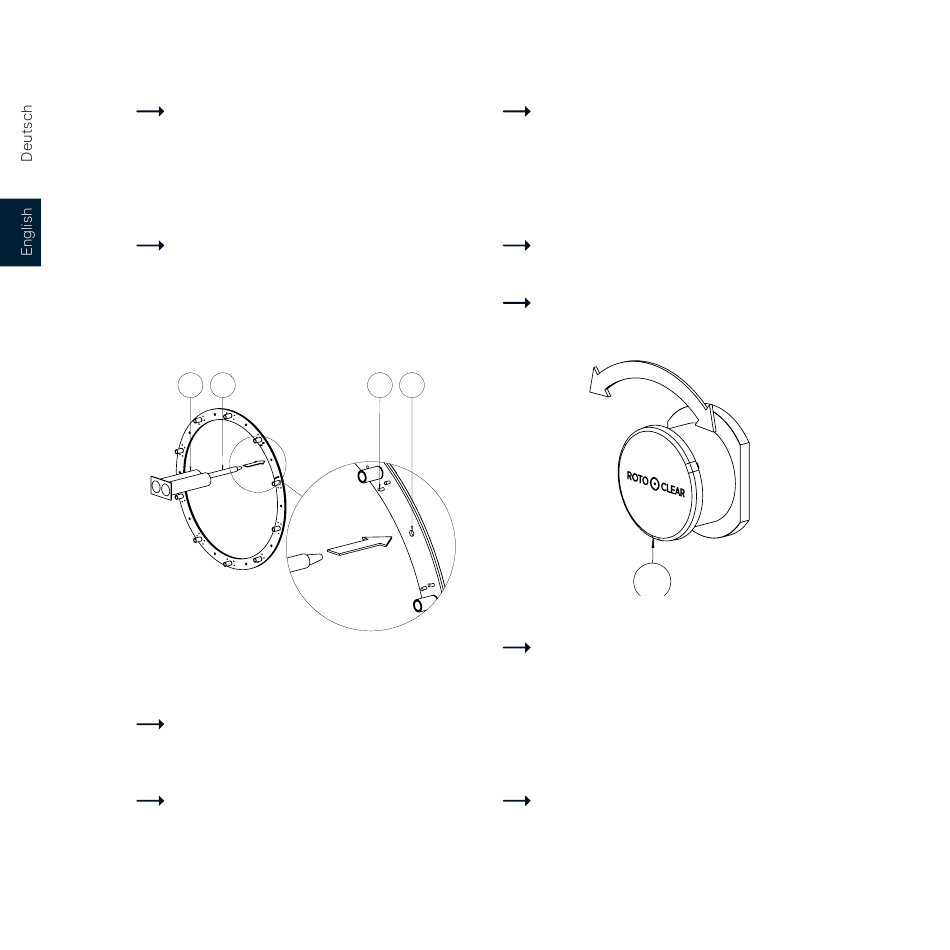

Place two-component adhesive in dosing
gun and fit on mixing nozzle (Fig. 3-B). Squeeze
out one strand of adhesive the length of the mix-
ing nozzle. The adhesive is now well-mixed and
bubble-free. Test the discharge speed with a sec-
ond strand of adhesive.
Insert the mixing nozzle into the filling hole
(Fig. 3-C) between two threaded sleeves and
carefully squeeze in adhesive until it comes out
of all four small inspection holes (Fig. 3-D) in the
pocket corners. Repeat the process nine times
until all pockets are filled.
A B
Figure 3
The adhesive cartridge as well as the remain-
ing adhesive must not be disposed of in house-
hold waste. Dispose of them properly.
Important: the flange must not be subjected
to loads or moved from its position during the cur-
ing process. You must wait at least 6 hours before
the flange can be subjected to loads (90% of the
final strength will have been achieved).
Check the strength of the adhesive-mount-
ed flange before installing Rotoclear S3. When
consistency of the adhesive (Fig. 3-D) that came
out through the inspection hole is rubbery and
hard enough to cut, the adhesive is ready to be
subjected to loads.
Cut off the adhesive residue with a knife and
clean the glass surface in and around the ring with
a lint-free cloth.
Align the logo cap (Fig. 4-A) according to the
desired orientation of the connection box.
D C
Figure 4
Place the Rotoclear S3 stator (Fig. 1-D) onto
the threaded sleeves of the bonding flange (Fig.
1-C) and fasten it using the M5 × 19 Tx 10 cylinder
bolts (Fig. 1-E). Check that the sealing ring (Fig.
1-F) is seated correctly and that the stator is tight-
ened to the correct torque of 1.1 Nm.
Clean the other side of the machinery glass.
Remove the protective film from the adhesive
pads of the cover (Fig. 1-G), stick them on to an
exact fit, and press them firmly into place. Allow
for a waiting period of at least 24 hours without
machine operation (warm-cold alternation).
