When providing an IP67 degree of protection
Use the supplied wrench (accessory) and mount the hose elbow (accessory).
Procedure
1. Remove the cap.
2. Attach the hose elbow.
Tighten the M5 screw by hand until the gasket contacts the wall, and then use the
supplied wrench to tighten an additional approx. 90°.
Gasket
Hose elbow
Attach the φ 4 mm tube.
3.
Note
Extend the tube attached to the hose elbow so that the notched part on the opposite end
from the hose elbow is not exposed to water or oil.
Supplied wrench
Cap

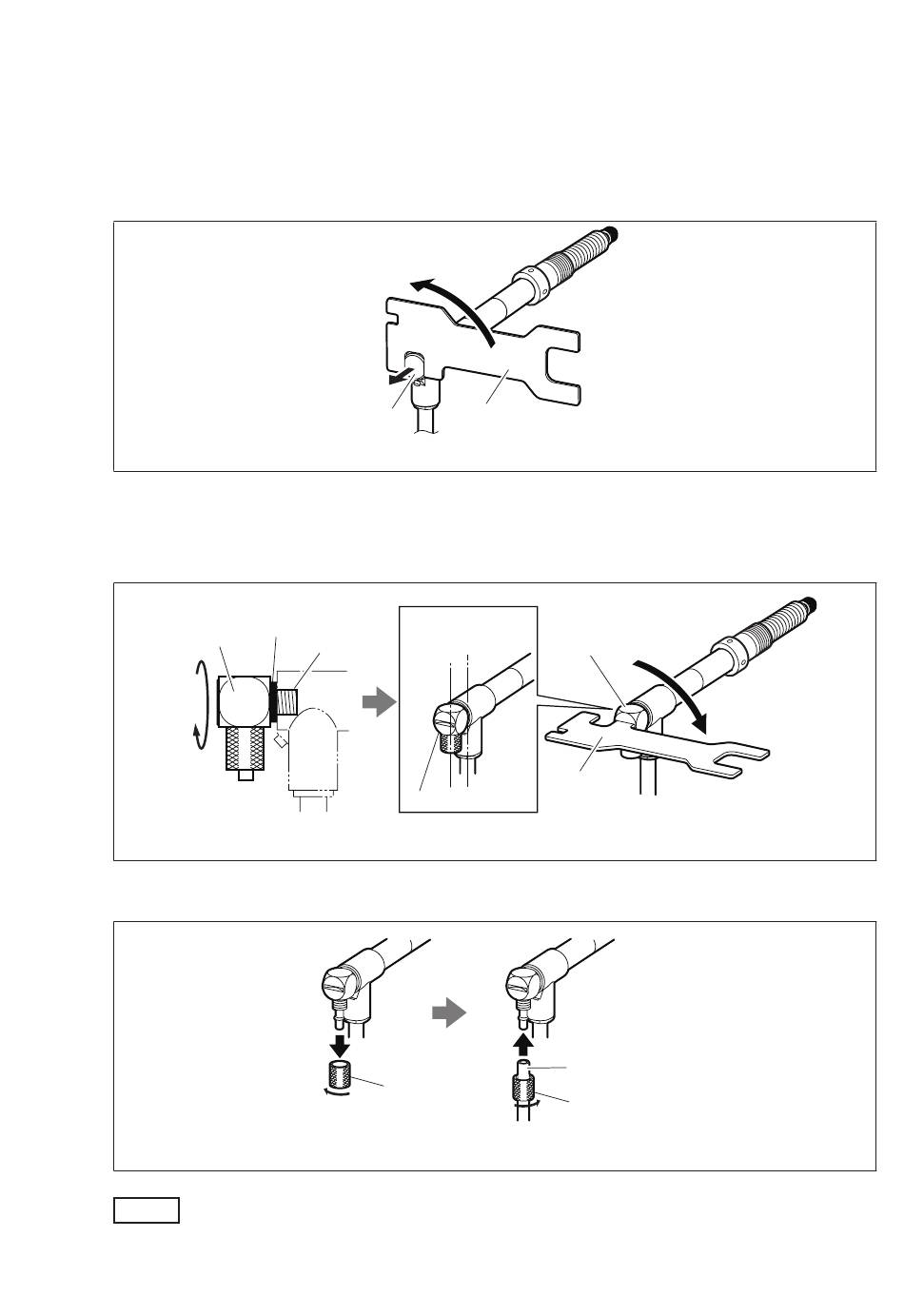

Fig. 4 Removing the cap
Tighten in the
parallel position.
M5 screw
Hose elbow
Fig. 5 Attaching the hose elbow
Fixing ring
Fig. 6 Attaching the φ4 mm tube
Hose elbow
Supplied
wrench
φ4 mm tube
Fixing ring
