assembling the unit. Cover that surface with a protective
covering and place all canopy hood parts and hardware
in it.
• In addition check whether near the installation area of the
hood (in the area accessible also with the hood mounted)
an electric socket is available.
• Carry out all the masonry work necessary (e.g.
installation of an electric socket).
Expansion wall plugs are provided to secure the hood to most
types of walls/ceilings. However, a qualified technician must
verify suitability of the materials in accordance with the type of
wall/ceiling. The wall/ceiling must be strong enough to take
the weight of the hood.
Do not tile, grout or silicone this appliance to the wall.
Surface mounting only.
Identify on the ceiling a reference point from the exact
installation center of the hood (see fig. 1), and then trace the
reference points for the holes to be made in accordance with
the dimensions shown in Fig. 2.
Make the holes in the ceiling using a suitable twist drill bit with
8 mm diameter and insert the supplied plugs.
Approach the hood to the ceiling and make the electrical
connection.
Open the stainless steel panel placed on the underside of the
product, where the four lamps are located.
The opening of the panel is made by pulling on the side
corresponding to the air outlet grill. (Fig. 3).
Support the panel with your hands while opening it.
After the opening of the panel you can access the grease filter
and after removing it, by acting on the handle, you can reach
the seat of the charcoal filter (Fig. 4)
Place the hood on the set position and secure it with the
supplied screws, see Figure 5.
Place the charcoal filter in its seat as shown in Figure 6.
Restore the grease filter removed earlier and close the steel
panel.
To close the panel, simply bring it back to the horizontal
position until the automatic hooking of the closing takes place.
Operation
Fig.7

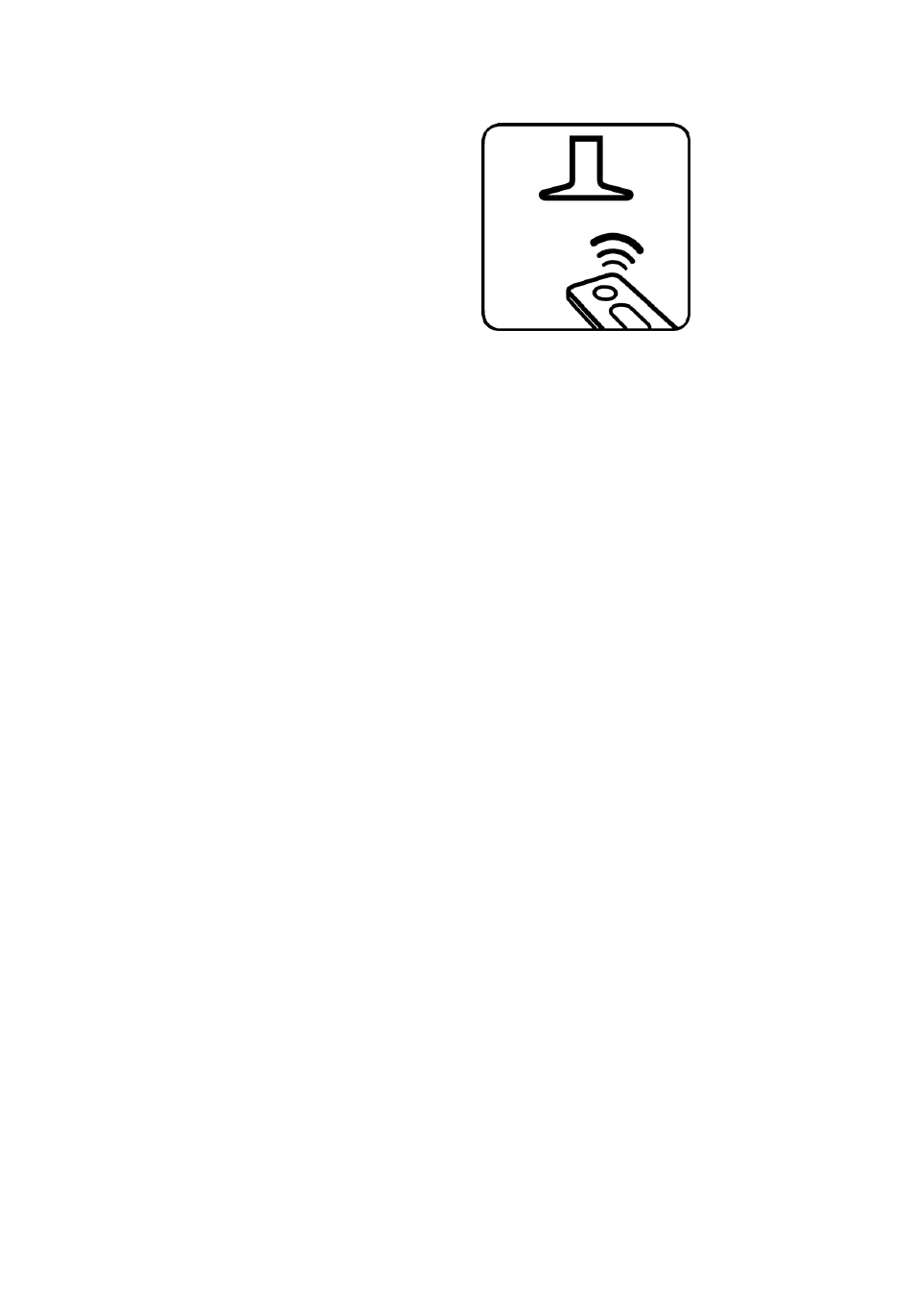

This product is designed to work with an Elica remote control,
either supplied with the product or purchased separately as an
optional.
To control the hood via remote control, the affiliation
procedure must be carried out.
CAUTION!
To begin, the hood must be disconnected and then
reconnected to the power supply and the affiliation procedure
must be carried out within the first minute of connection to the
power.
Read the instructions supplied with the remote control, which
provide detailed instructions on affiliation and correct use.
Operation anomalies
The hood does not work
Make sure that:
• There is no current blackout
• A speed has been effectively selected.
• The red reset button located above the filters inside the
hood is pressed.
The hood has low efficiency
Make sure that:
• The motor speed selected is sufficient for the quantity of
fumes present
• The charcoal filter is not worn out.
