linea luce SliM | ENG |
www.reggiani.net

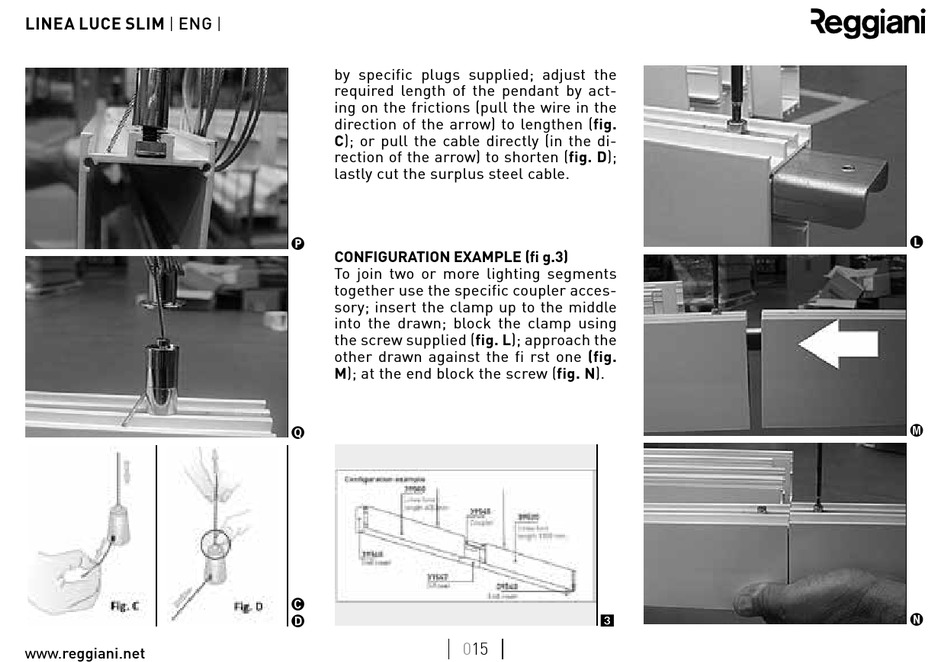

by specific plugs supplied; adjust the
required length of the pendant by act-
ing on the frictions (pull the wire in the
direction of the arrow) to lengthen (fig.
c); or pull the cable directly (in the di-
rection of the arrow) to shorten (fig. D);
lastly cut the surplus steel cable.
P
cOnFiGuRaTiOn eXaMPle (fi g.3)
To join two or more lighting segments
together use the specific coupler acces-
sory; insert the clamp up to the middle
into the drawn; block the clamp using
the screw supplied (fig. l); approach the
other drawn against the fi rst one (fig.
M); at the end block the screw (fig. n).
Q
C
D
015
3
L
M
N
