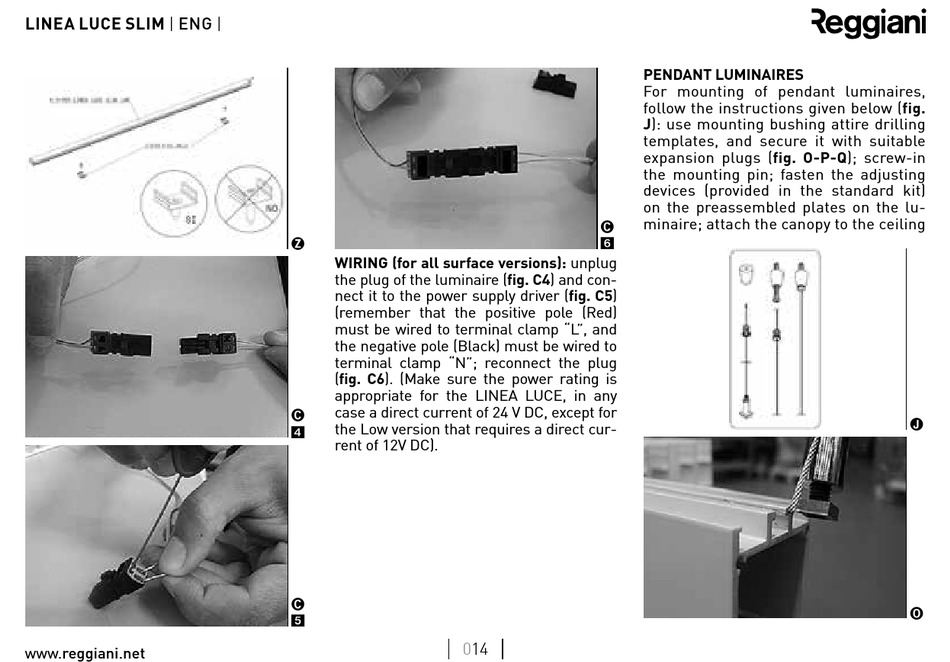

WiRinG (for all surface versions): unplug
the plug of the luminaire (fig. c4) and con-
nect it to the power supply driver (fig. c5)
(remember that the positive pole (Red)
must be wired to terminal clamp "L", and
the negative pole (Black) must be wired to
terminal clamp "N"; reconnect the plug
(fig. c6). (Make sure the power rating is
appropriate for the LINEA LUCE, in any
case a direct current of 24 V DC, except for
C
the Low version that requires a direct cur-
4
rent of 12V DC).
C
5
014
PenDanT luMinaiReS
For mounting of pendant luminaires,
follow the instructions given below (fig.
J): use mounting bushing attire drilling
templates, and secure it with suitable
expansion plugs (fig. O-P-Q); screw-in
the mounting pin; fasten the adjusting
devices (provided in the standard kit)
on the preassembled plates on the lu-
minaire; attach the canopy to the ceiling
C
6
J
O
