linea luce SliM | ENG |

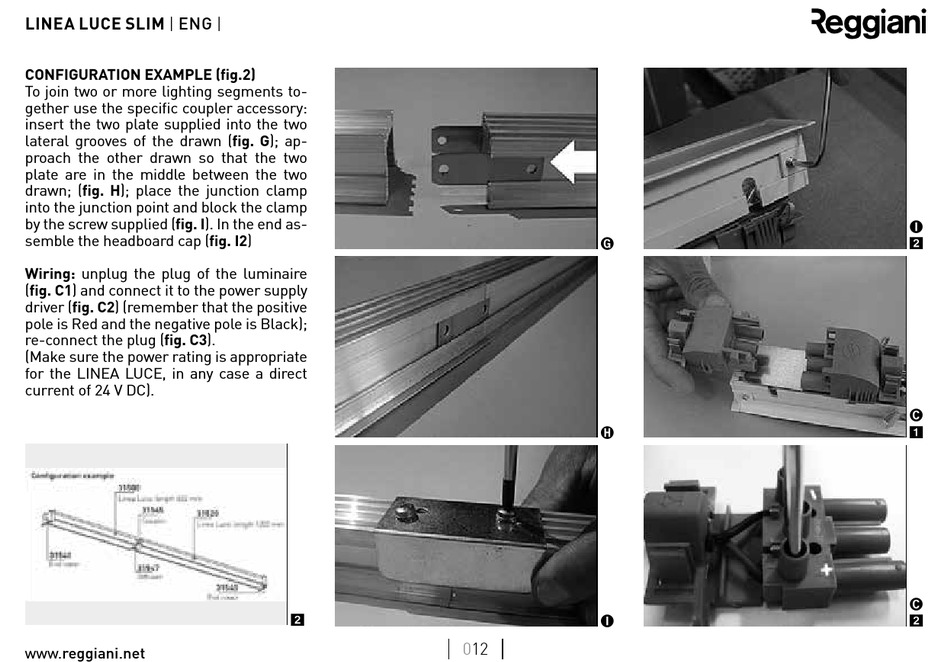

cOnFiGuRaTiOn eXaMPle (fig.2)
To join two or more lighting segments to-
gether use the specific coupler accessory:
insert the two plate supplied into the two
lateral grooves of the drawn (fig. G); ap-
proach the other drawn so that the two
plate are in the middle between the two
drawn; (fig. H); place the junction clamp
into the junction point and block the clamp
by the screw supplied (fig. i). In the end as-
semble the headboard cap (fig. i2)
Wiring: unplug the plug of the luminaire
(fig. c1) and connect it to the power supply
driver (fig. c2) (remember that the positive
pole is Red and the negative pole is Black);
re-connect the plug (fig. c3).
(Make sure the power rating is appropriate
for the LINEA LUCE, in any case a direct
current of 24 V DC).
www.reggiani.net
2
012
G
H
I
I
2
C
1
C
2
