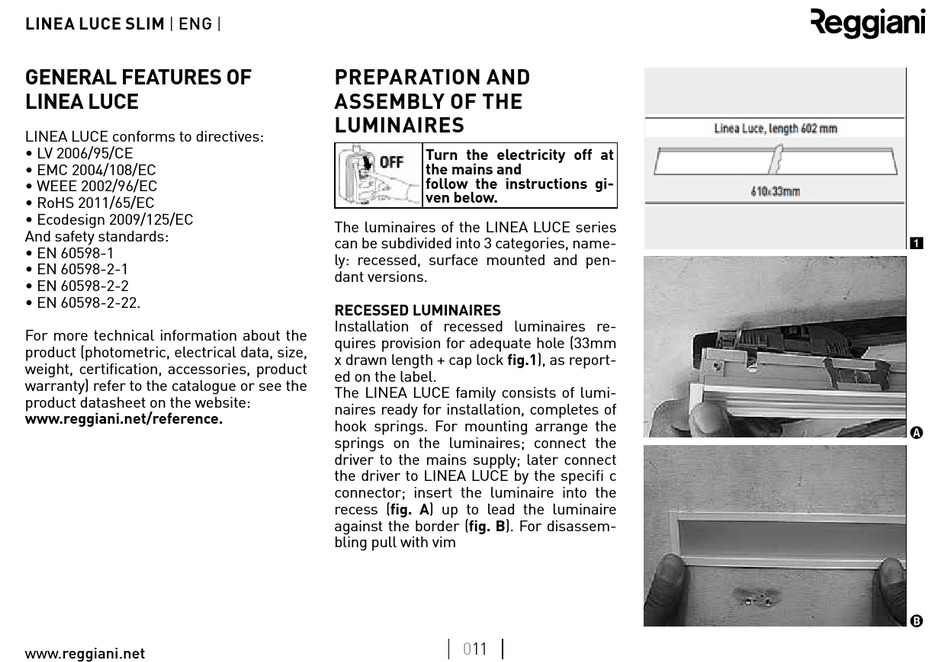

Reggiani linea luce SLIM Montageanweisungen Seite 11

linea luce SliM | ENG |
GeneRal FeaTuReS OF
linea luce
LINEA LUCE conforms to directives:
• LV 2006/95/CE
• EMC 2004/108/EC
• WEEE 2002/96/EC
• RoHS 2011/65/EC
• Ecodesign 2009/125/EC
And safety standards:
• EN 60598-1
• EN 60598-2-1
• EN 60598-2-2
• EN 60598-2-22.
For more technical information about the
product (photometric, electrical data, size,
weight, certification, accessories, product
warranty) refer to the catalogue or see the
product datasheet on the website:
www.reggiani.net/reference.
www.reggiani.net
PRePaRaTiOn anD
aSSeMBlY OF THe
luMinaiReS
Turn the electricity off at
the mains and
follow the instructions gi-
ven below.
The luminaires of the LINEA LUCE series
can be subdivided into 3 categories, name-
ly: recessed, surface mounted and pen-
dant versions.
ReceSSeD luMinaiReS
Installation of recessed luminaires re-
quires provision for adequate hole (33mm
x drawn length + cap lock fig.1), as report-
ed on the label.
The LINEA LUCE family consists of lumi-
naires ready for installation, completes of
hook springs. For mounting arrange the
springs on the luminaires; connect the
driver to the mains supply; later connect
the driver to LINEA LUCE by the specifi c
connector; insert the luminaire into the
recess (fig. a) up to lead the luminaire
against the border (fig. B). For disassem-
bling pull with vim
011
1
A
B
