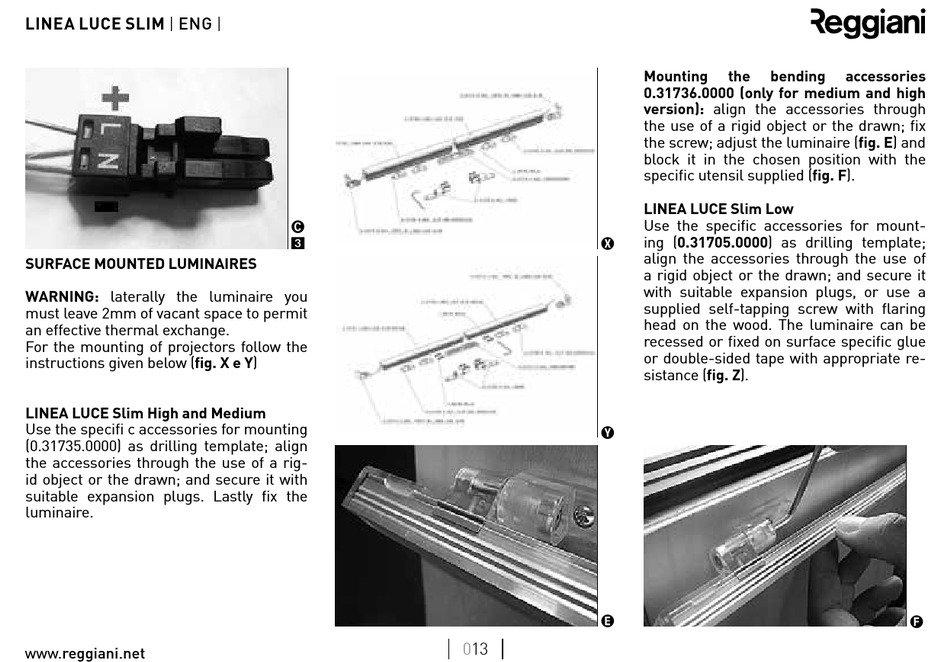

linea luce SliM | ENG |
SuRFace MOunTeD luMinaiReS
WaRninG: laterally the luminaire you
must leave 2mm of vacant space to permit
an effective thermal exchange.
For the mounting of projectors follow the
instructions given below (fig. X e Y)
linea luce Slim High and Medium
Use the specifi c accessories for mounting
(0.31735.0000) as drilling template; align
the accessories through the use of a rig-
id object or the drawn; and secure it with
suitable expansion plugs. Lastly fix the
luminaire.
www.reggiani.net
C
3
013
Mounting the bending
0.31736.0000 (only for medium and high
version): align the accessories through
the use of a rigid object or the drawn; fix
the screw; adjust the luminaire (fig. e) and
block it in the chosen position with the
specific utensil supplied (fig. F).
linea luce Slim low
Use the specific accessories for mount-
ing (0.31705.0000) as drilling template;
X
align the accessories through the use of
a rigid object or the drawn; and secure it
with suitable expansion plugs, or use a
supplied self-tapping screw with flaring
head on the wood. The luminaire can be
recessed or fixed on surface specific glue
or double-sided tape with appropriate re-
sistance (fig. Z).
Y
E
accessories
F
