6.7 DISPLAY VIA ANALOG OUTPUT

The following variables are given at the analog output (e.g. when con-
necting an external measurement instrument):
• load current (highest phase current from L1, L2, L3)
• load voltage (highest conductor voltage)
• effective power (overall power) (only in the case of ...H RLP2)
• additional variables (can be selected via PC/Bus, e.g. mains voltage,
setpoint etc.)
The variable to be given at the analog output can be configured by the
user (see chapter control mode/analog output).

DEFAULT SETTINGS

ANALOG OUTPUT
Analog output 1
Analog output 2
Analog output 3

6.8 FAULT, STATUS AND MONITORING MESSAGES

The Thyro-AX has internal fault, status and user-defined monitoring mes-
sages. Their effects can be configured with the Thyro-Tool AX software.
The reactions on the occurrence of a message( =event) can be deter-
mined by the user. As a reaction, the inhibition of the load current (pulse
inhibition), as well as the display at the fault signaling relay K1 and the
color of the display lights (red) can be configured as well as the data log-
ger and the multi-I/O outputs (s. chapter 6.8.1). Besides this the mode of
operation (open or closed circuit principle) can be configured at the fault
signaling relay K1. Fundamental fault messages which make the operation

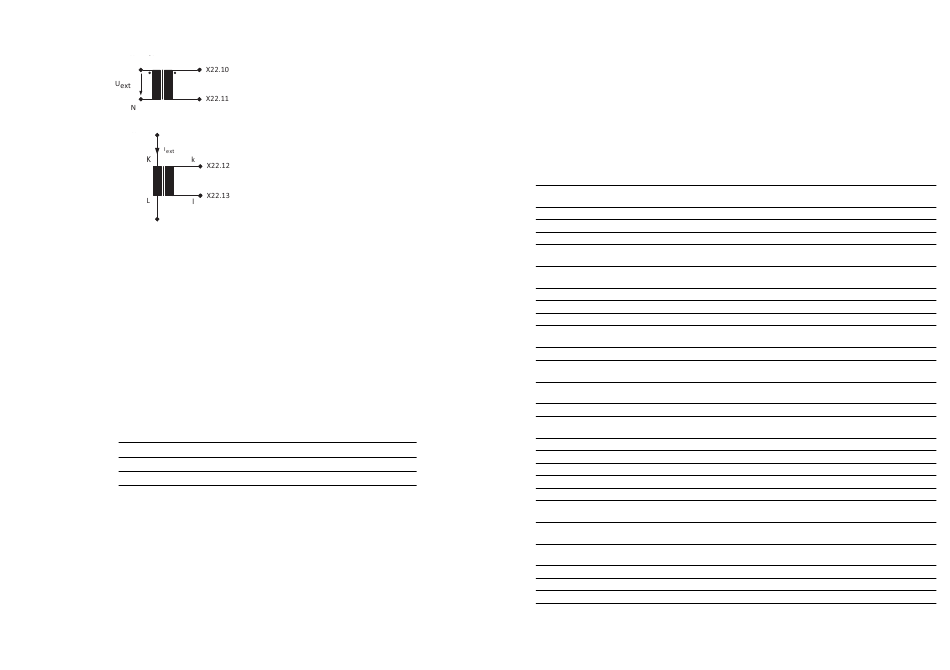

The output value of the voltage
transformer is 10V~ (at rated voltage)
and the output value of the current
transformer is 1V~ (at rated current).
The corresponding load resistor has to
be connected externally as well.
OUTPUT VARIABLE
load voltage
load current
power on the load
of the device impossible in general switch the pulse inhibition or the fault
signaling relay K1.

6.8.1 OVERVIEW

The following table indicates the various messages (events) and their
specific classification of default settings (X).
DESCRIPTION THYRO-TOOL AX MESSAGE ON
OF FAULT MESSAGE DISPLAY
NETWORK IST NOT OK SYNC ERROR SYNC ERROR
(SYNC ERROR)
HARDWARE ERROR HARDWARE FAULT HW FAULT
MINIMUM FREQUENCY FREQUENCY TO LOW FMIN
MAXIMUM FREQUENCY FREQUENCY TO HIGH FMAX
VALID FREQUENCY FREQUENCY FTOLERANCE
TOLERANCE TOLERANCE EXCEEDED
NO ROTATING FIELD/ NO ROTATING FIELD NO ROTFIELD
LEFT ROTATING FIELD (FOR AX)
PHASE L1 IS MISSING PHASE L1 MISSING NO PHASE1
PHASE L2 IS MISSING PHASE L2 MISSING NO PHASE2
PHASE L3 IS MISSING PHASE L3 MISSING NO PHASE3
SETPOINT FAILURE SETPOINT < 4 mA SETPOINT
(SETPOINT < 4 mA) (OPEN LOOP)
NO SUPPLY VOLTAGE NO SUPPLY VOLTAGE NO POWER
CONNECTION OF POWER UNIT NOCONNPART
POWER UNITS DISCONNECTED
FAILURE OF TEMPERATURE TEMPERATURE TEMPSENS
SENSOR PROBE DEFECT
FUSE FAILURE OPEN FUSE FUSE
THYRISTOR SHORT CIRCUIT THYRISTOR SHORT THYRISTOR
CIRCUIT
EEPROM ERROR MEMORY ERROR EEPROM
I2C ERROR I2C ERROR I2C
ETHERNET ERROR ETHERNET ERROR ETH
USB ERROR USB ERROR USB
FIRMWARE ERROR FIRMWARE ERROR FIRMWARE
POWER UNIT IS TOO SMALL POWER UNIT INCOMPPART
FOR TYPE INCOMPATIBLE
U-MEASURING RANGE U MEASURING U RANGE
IS EXCEEDED RANGE EXCEEDED
U-MEASURING RANGE I MEASURING I RANGE
IS EXCEEDED RANGE EXCEEDED
NEGATIVE POWER NEGATIVE POWER NEG POWER
LCD ERROR LCD ERROR LCD
PARAMETER ERROR PARAMETER ERROR PARAMETER
