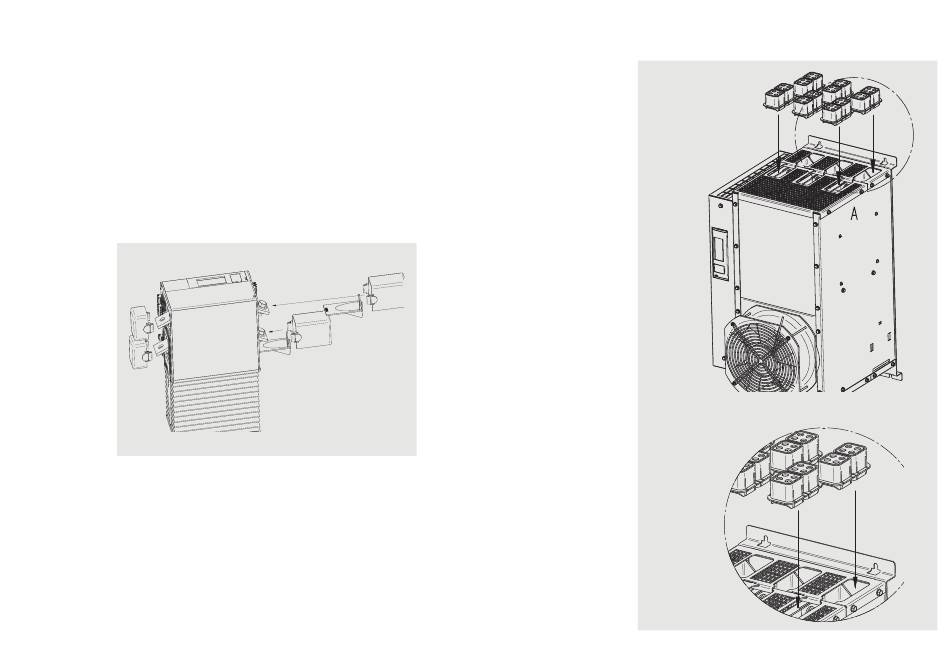

Devices of 130A/170A/240A/280A/350A :
For non-used connections:
• The blind cover for non-used connections has to be inserted into the
plug-in edge of the device
For used connections (cable is connected):
• The protection covers have to be mounted according to the direction
arrows in the figure.
• If the customer used connections are wider than the standard gaps
used for these protection covers, then the cover have to be adjusted
by the customer in accordance to the given gaps.
Devices 495A/650A:
For non-used connections:
• The blind cover for non-used connections has to be inserted into the
plug-in edge of the device
For used connections (cable is connected):
• The protection covers have to be mounted according to the direction
arrows in the figure.
• If the customer used connections are wider than the standard gaps
used for these protection covers, then the cover have to be adjusted
by the customer in accordance to the given gaps.
In Detail:
