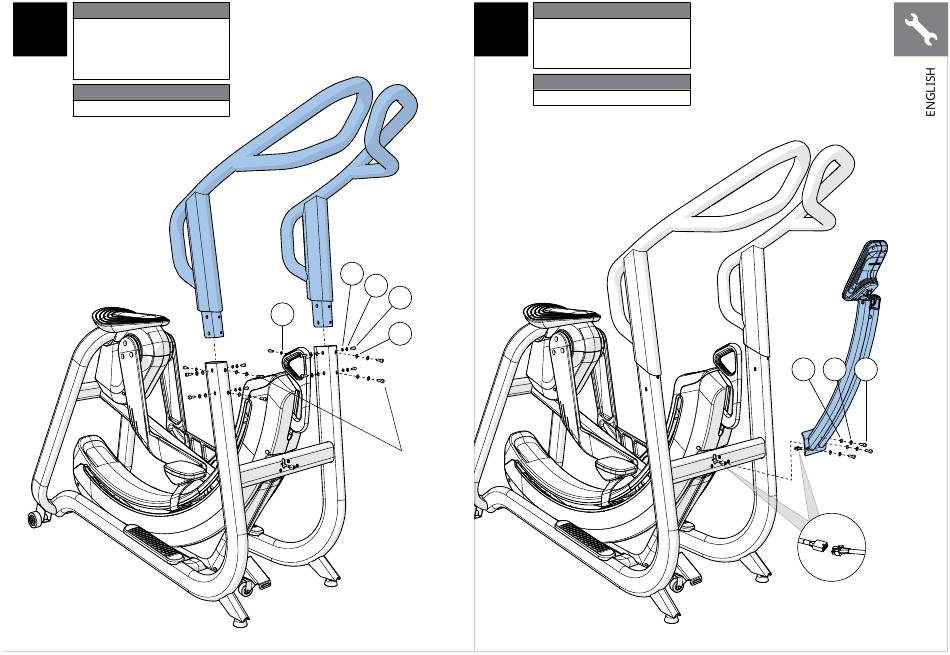

Step 1 Hardware
1
Description Qty
A Bolt (M8) 14
B Spring Washer (M8) 12
C Flat Washer (M8) 8
D Arc Washer (M8) 6
Torque Values
22.5 Nm / 16.5 ft-lb
C
B
A
D
D
Assemble
front and
rear bolts and
washers first
Step 2 Hardware
2
Description Qty
E Bolt (M6) 3
F Spring Washer (M6) 3
G Flat Washer (M6) 3
Torque Values
9.5 Nm / 7 ft-lb
G F E
