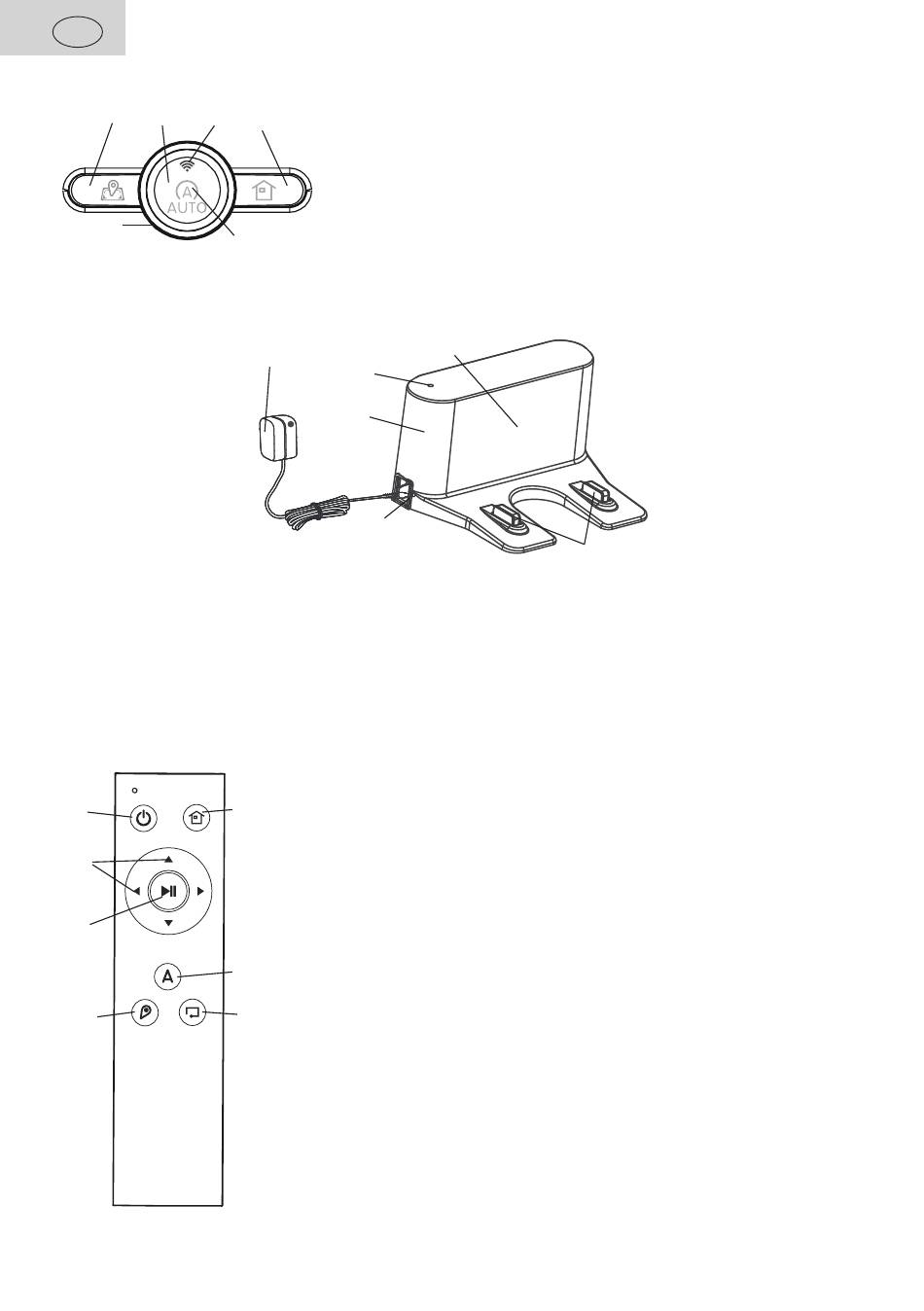

3.4 CONTROL PANEL

C3
C4
C1
C
C5
3.5 CHARGER STATION
D – Charger station
D1 – Operation indicator
D2 – Signalisation area
D3 – Charging contacts
D4 – Adapter connection port

3.6 REMOTE CONTROL

F1
F2
F7
F3
C2
C – Control panel
C1 – ON /OFF/AUTO (automatic cleaning) / STOP (PAUSE)
button
C2 – CHARGING / STOP (PAUSE)
C3 – LOCAL CLEANING button / STOP (PAUSE)
C4 – Wifi indicator
C5 – Charging indicator
E
D1
D
D4
F4
F – Remote control
F1 – ON /OFF to stand by mode
F2 – Directional buttons for manual control (FORWARD /
RIGHT/ LEFT/BACK)
F3 – Local cleaning mode
F5 F4 – Back to charger station
F5 – Automatic cleaning mode
F6
F6 – Edge cleaning mode / STOP (PAUSE)
F7 – STOP (PAUSE) / START
D2
D3
