Fig. 7.23
1
Fig. 7.24
Fig. 7.25
M
M
2
1
REPLACING THE MIDDLE AND INNER
PANES OF GLASS
1.
Make sure the door is locked open
(see fig. 7.17).
2.

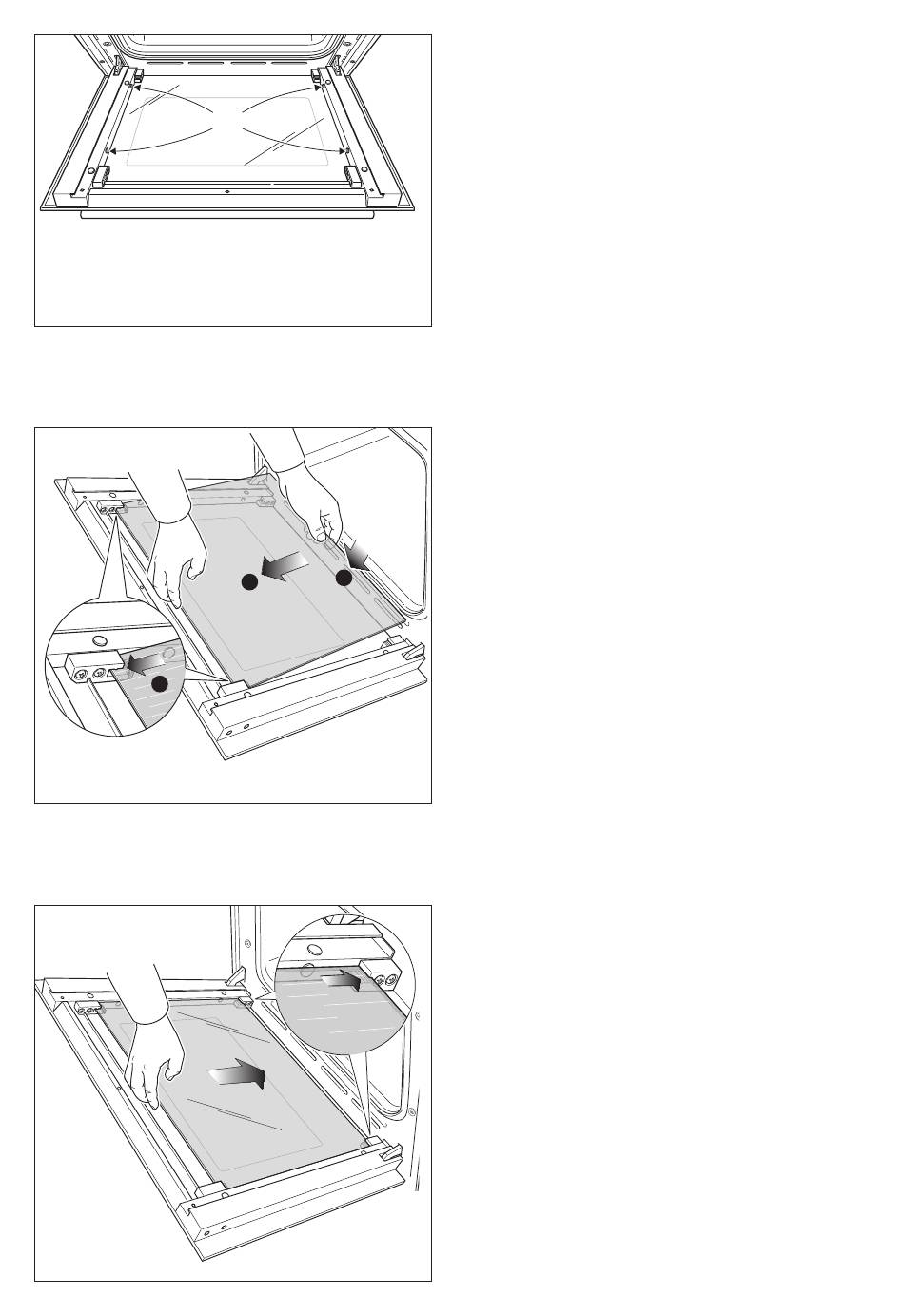

Replace the middle pane:
Check that the four rubber pads are in
place ("M" in fig. 7.23).
Check that you are holding the pane
the correct way. You should be able to
read the wording on it as it faces you.
Gently insert the top edge of the
pane into the top clamps (arrow 1 in
fig. 7.24), then lower the pane and
insert the bottom edge into the bottom
clamps (arrow 2 in fig. 7.24); and then
slide the pane into position (fig. 7.25).
