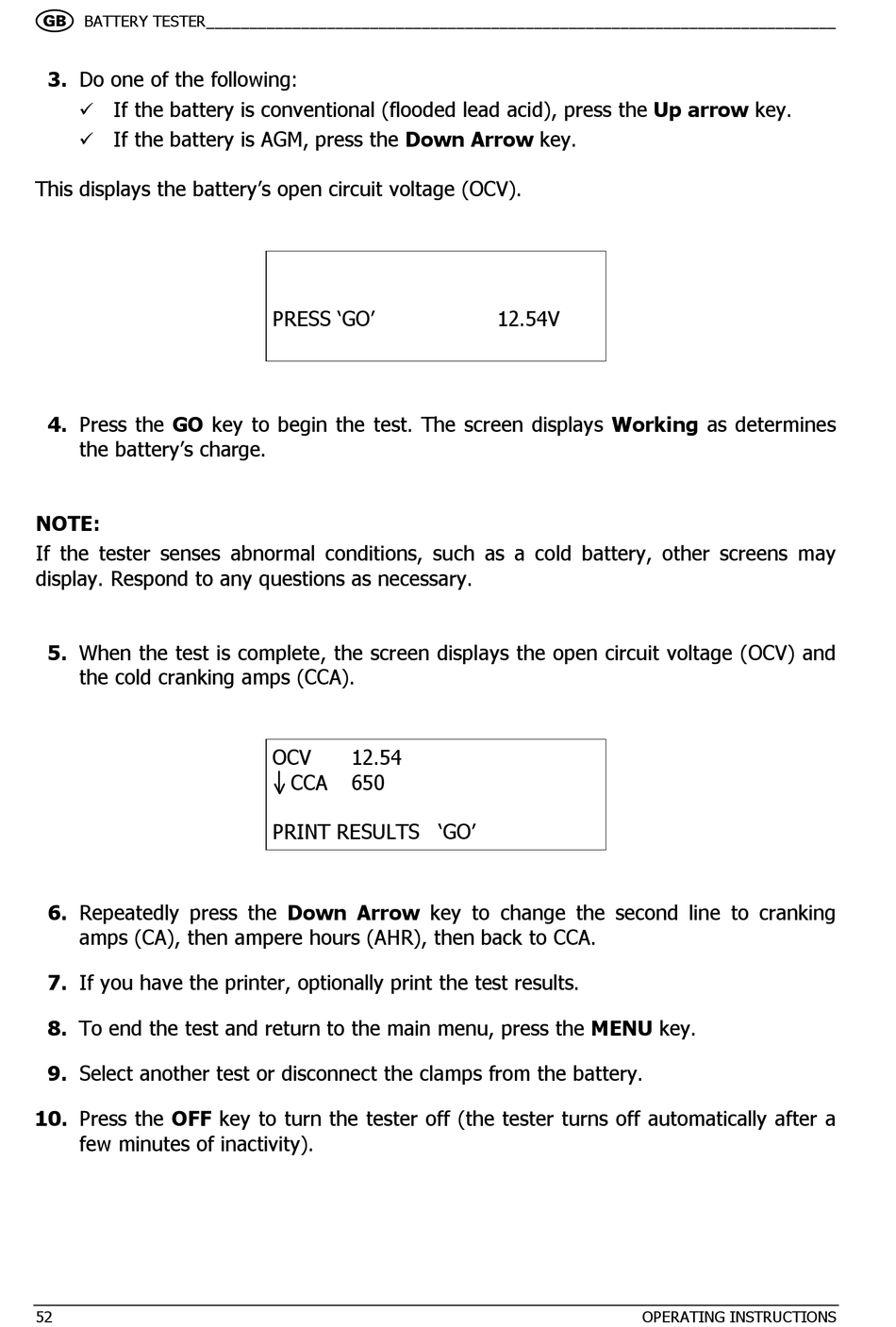

BATTERY TESTER_________________________________________________________________________
3. Do one of the following:
If the battery is conventional (flooded lead acid), press the Up arrow key.
If the battery is AGM, press the Down Arrow key.
This displays the battery's open circuit voltage (OCV).
4. Press the GO key to begin the test. The screen displays Working as determines
the battery's charge.
NOTE:
If the tester senses abnormal conditions, such as a cold battery, other screens may
display. Respond to any questions as necessary.
5. When the test is complete, the screen displays the open circuit voltage (OCV) and
the cold cranking amps (CCA).
6. Repeatedly press the Down Arrow key to change the second line to cranking
amps (CA), then ampere hours (AHR), then back to CCA.
7. If you have the printer, optionally print the test results.
8. To end the test and return to the main menu, press the MENU key.
9. Select another test or disconnect the clamps from the battery.
10. Press the OFF key to turn the tester off (the tester turns off automatically after a
few minutes of inactivity).
52
PRESS 'GO'
OCV
12.54
CCA
650
PRINT RESULTS 'GO'
12.54V
OPERATING INSTRUCTIONS
