BATTERY TESTER_________________________________________________________________________

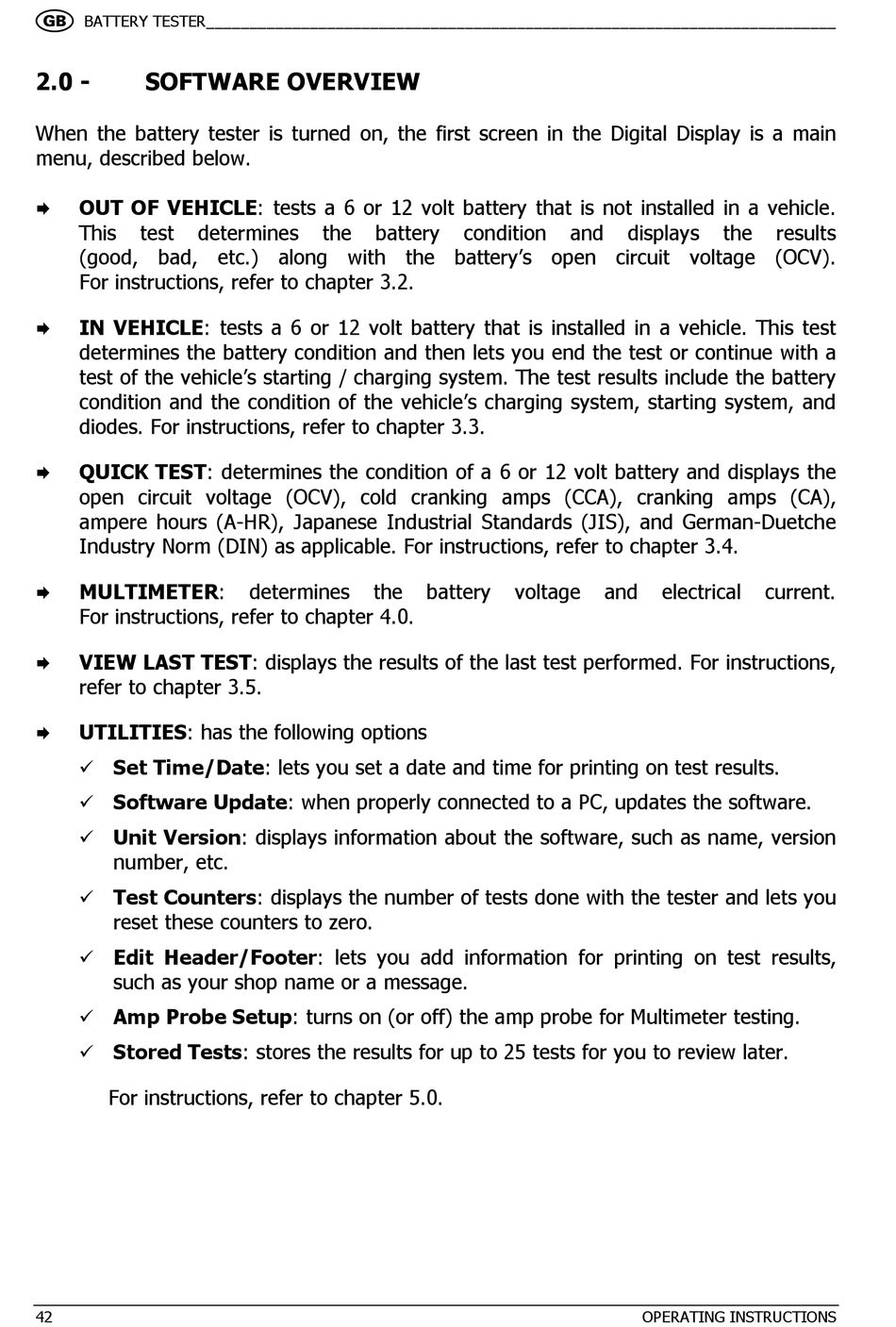

2.0 -

SOFTWARE OVERVIEW

When the battery tester is turned on, the first screen in the Digital Display is a main
menu, described below.
OUT OF VEHICLE: tests a 6 or 12 volt battery that is not installed in a vehicle.
This test determines
(good, bad, etc.) along with the battery's open circuit voltage (OCV).
For instructions, refer to chapter 3.2.
IN VEHICLE: tests a 6 or 12 volt battery that is installed in a vehicle. This test
determines the battery condition and then lets you end the test or continue with a
test of the vehicle's starting / charging system. The test results include the battery
condition and the condition of the vehicle's charging system, starting system, and
diodes. For instructions, refer to chapter 3.3.
QUICK TEST: determines the condition of a 6 or 12 volt battery and displays the
open circuit voltage (OCV), cold cranking amps (CCA), cranking amps (CA),
ampere hours (A-HR), Japanese Industrial Standards (JIS), and German-Duetche
Industry Norm (DIN) as applicable. For instructions, refer to chapter 3.4.
MULTIMETER:
For instructions, refer to chapter 4.0.
VIEW LAST TEST: displays the results of the last test performed. For instructions,
refer to chapter 3.5.
UTILITIES: has the following options
Set Time/Date: lets you set a date and time for printing on test results.
Software Update: when properly connected to a PC, updates the software.
Unit Version: displays information about the software, such as name, version
number, etc.
Test Counters: displays the number of tests done with the tester and lets you
reset these counters to zero.
Edit Header/Footer: lets you add information for printing on test results,
such as your shop name or a message.
Amp Probe Setup: turns on (or off) the amp probe for Multimeter testing.
Stored Tests: stores the results for up to 25 tests for you to review later.
For instructions, refer to chapter 5.0.
42
the battery
determines the
condition and
battery voltage
displays the
and electrical current.
OPERATING INSTRUCTIONS
results
