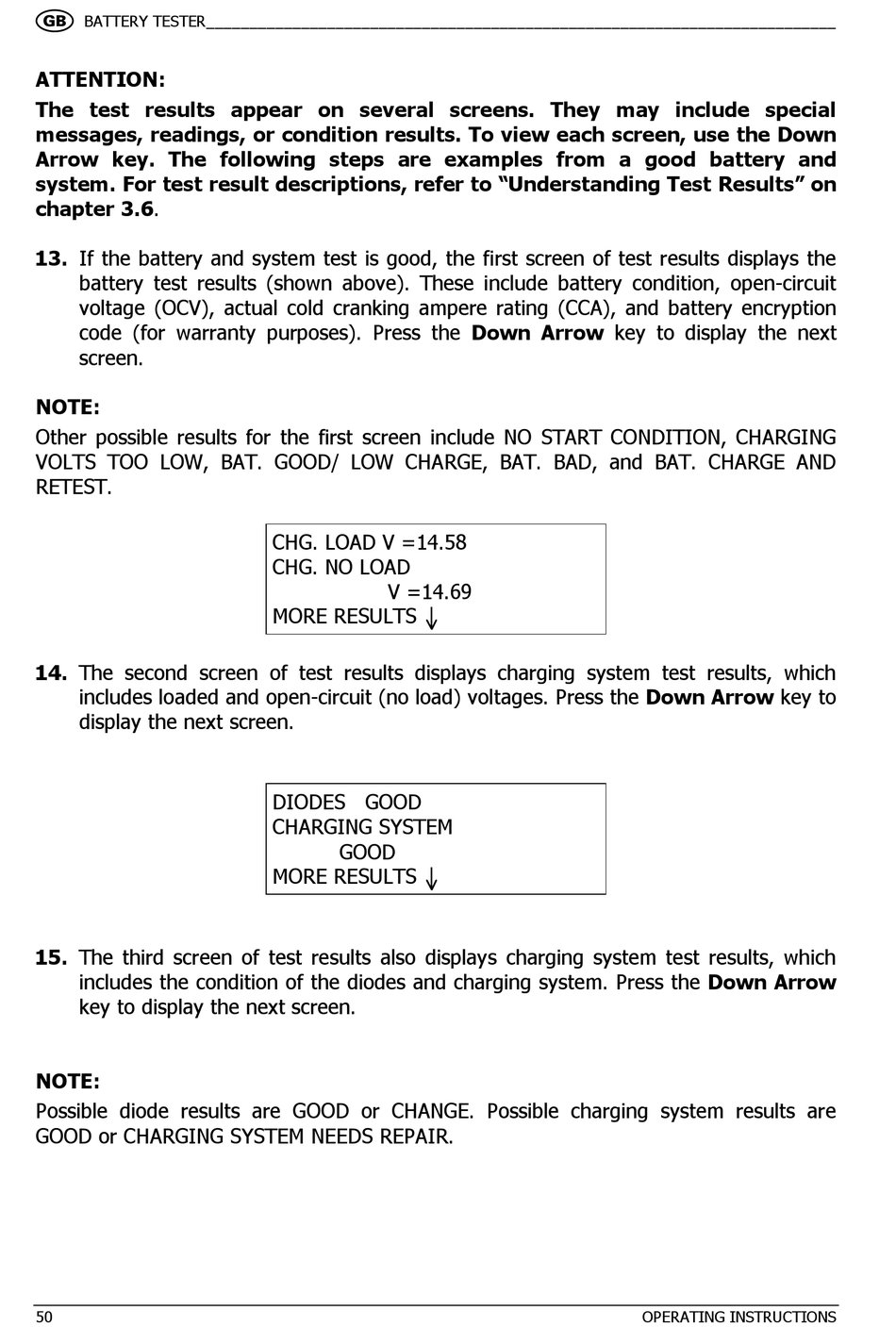

BATTERY TESTER_________________________________________________________________________
ATTENTION:
The test results appear on several screens. They may include special
messages, readings, or condition results. To view each screen, use the Down
Arrow key. The following steps are examples from a good battery and
system. For test result descriptions, refer to "Understanding Test Results" on
chapter 3.6.
13. If the battery and system test is good, the first screen of test results displays the
battery test results (shown above). These include battery condition, open-circuit
voltage (OCV), actual cold cranking ampere rating (CCA), and battery encryption
code (for warranty purposes). Press the Down Arrow key to display the next
screen.
NOTE:
Other possible results for the first screen include NO START CONDITION, CHARGING
VOLTS TOO LOW, BAT. GOOD/ LOW CHARGE, BAT. BAD, and BAT. CHARGE AND
RETEST.
14. The second screen of test results displays charging system test results, which
includes loaded and open-circuit (no load) voltages. Press the Down Arrow key to
display the next screen.
15. The third screen of test results also displays charging system test results, which
includes the condition of the diodes and charging system. Press the Down Arrow
key to display the next screen.
NOTE:
Possible diode results are GOOD or CHANGE. Possible charging system results are
GOOD or CHARGING SYSTEM NEEDS REPAIR.
50
CHG. LOAD V =14.58
CHG. NO LOAD
V =14.69
MORE RESULTS
DIODES GOOD
CHARGING SYSTEM
GOOD
MORE RESULTS
OPERATING INSTRUCTIONS
