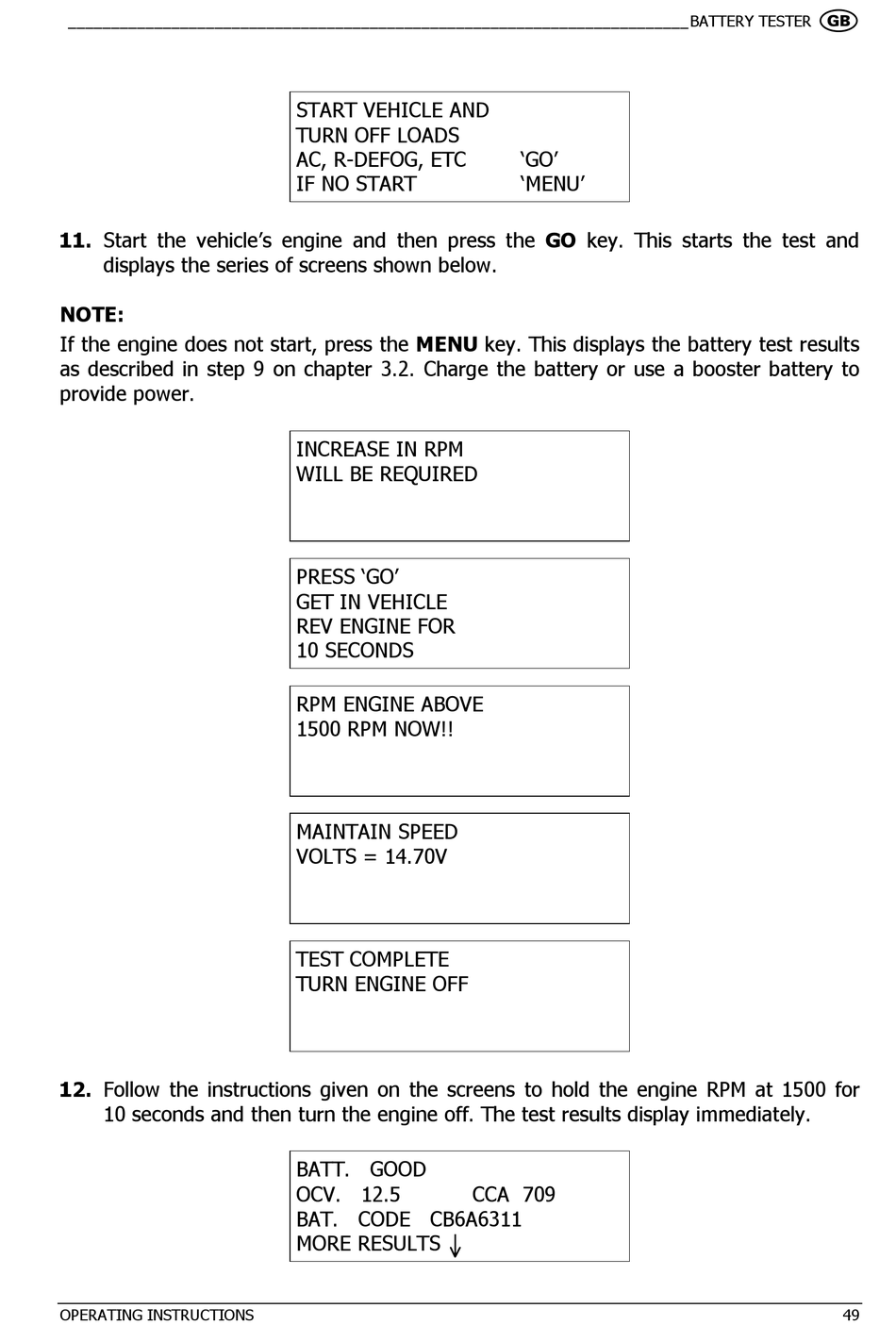

Tecnotest 3167 Bedienungsanleitung Seite 53

________________________________________________________________________BATTERY TESTER
11. Start the vehicle's engine and then press the GO key. This starts the test and
displays the series of screens shown below.
NOTE:
If the engine does not start, press the MENU key. This displays the battery test results
as described in step 9 on chapter 3.2. Charge the battery or use a booster battery to
provide power.
12. Follow the instructions given on the screens to hold the engine RPM at 1500 for
10 seconds and then turn the engine off. The test results display immediately.
OPERATING INSTRUCTIONS
START VEHICLE AND
TURN OFF LOADS
AC, R-DEFOG, ETC
IF NO START
INCREASE IN RPM
WILL BE REQUIRED
PRESS 'GO'
GET IN VEHICLE
REV ENGINE FOR
10 SECONDS
RPM ENGINE ABOVE
1500 RPM NOW!!
MAINTAIN SPEED
VOLTS = 14.70V
TEST COMPLETE
TURN ENGINE OFF
BATT. GOOD
OCV. 12.5
BAT. CODE CB6A6311
MORE RESULTS
'GO'
'MENU'
CCA 709

49
