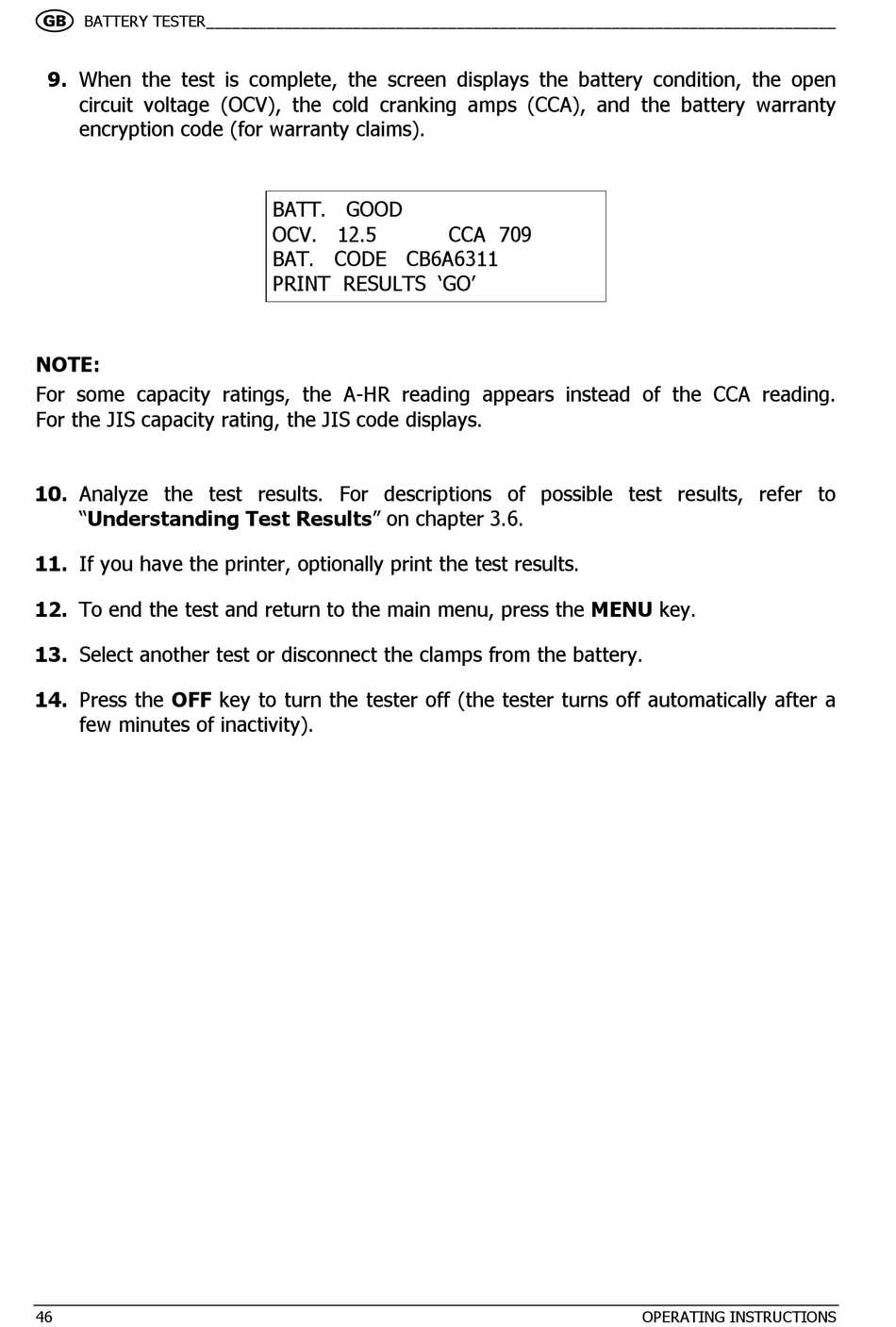

Tecnotest 3167 Bedienungsanleitung Seite 50


BATTERY TESTER_________________________________________________________________________
9. When the test is complete, the screen displays the battery condition, the open
circuit voltage (OCV), the cold cranking amps (CCA), and the battery warranty
encryption code (for warranty claims).
NOTE:
For some capacity ratings, the A-HR reading appears instead of the CCA reading.
For the JIS capacity rating, the JIS code displays.
10. Analyze the test results. For descriptions of possible test results, refer to
"Understanding Test Results" on chapter 3.6.
11. If you have the printer, optionally print the test results.
12. To end the test and return to the main menu, press the MENU key.
13. Select another test or disconnect the clamps from the battery.
14. Press the OFF key to turn the tester off (the tester turns off automatically after a
few minutes of inactivity).
46
BATT. GOOD
OCV. 12.5
BAT. CODE CB6A6311
PRINT RESULTS 'GO'
CCA 709
OPERATING INSTRUCTIONS
