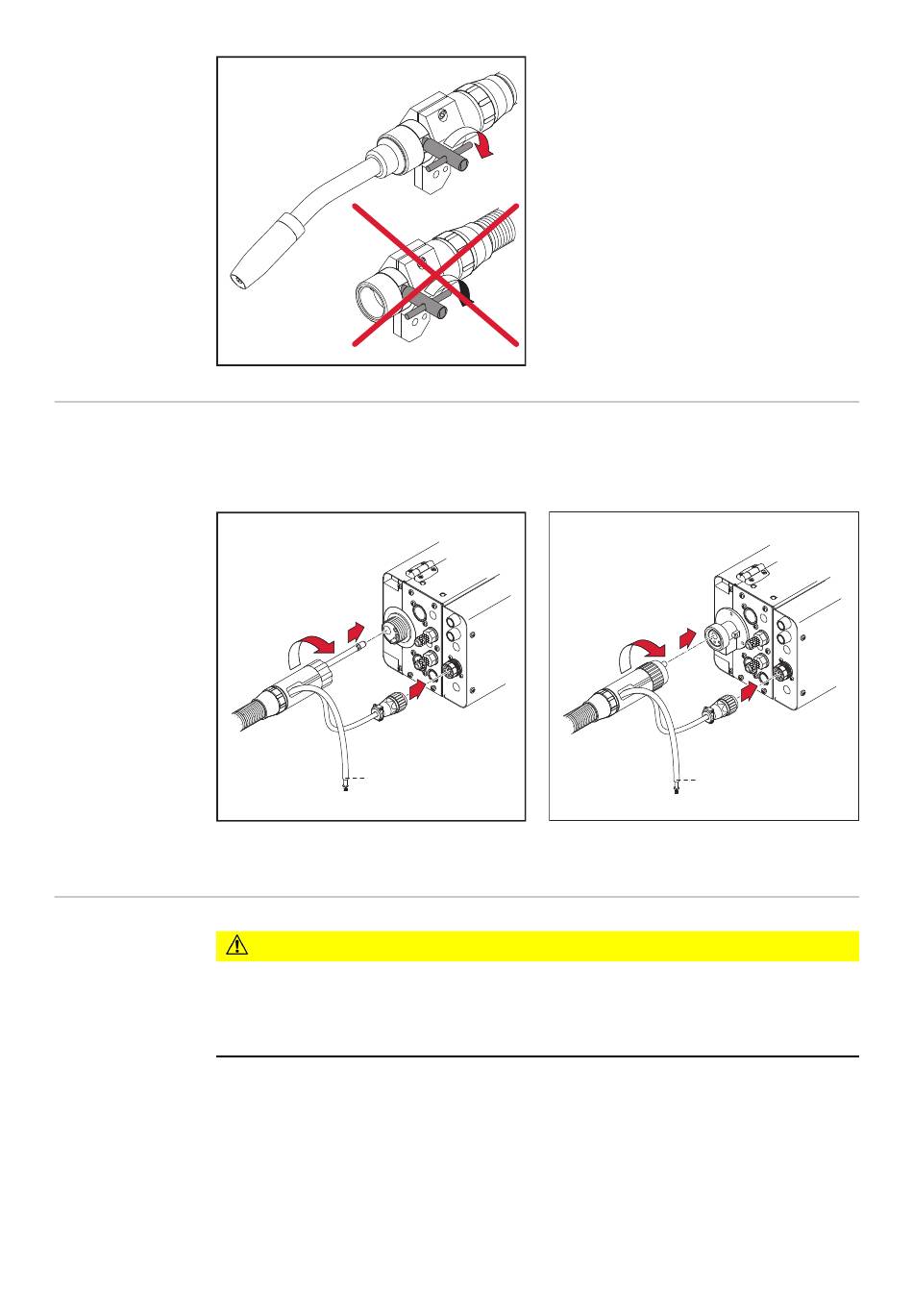

Connecting the IMPORTANT! Make sure to seal the hose end by means of the enclosed plug, if
robot hose pack the port for the torch blow-out unit is not used. Otherwise the inert gas will get
mixed with outside air, which may adversely affect the welding results.
* Port for torch blow-out unit (depending on the variant)
MTG 2500 - Re-
placing the com-
ponents
Danger of burning because of extremely hot torch.
This can result in serious injury.
▶
* gas nozzle plugged
** gas nozzle screwed
*** Key for bayonet (optional). This tool facilitates loosening and tightening of the
gas jet locking mechanism.
34
Fronius
1
2
*
CAUTION!
For replacing of components as well as cleaning and checking of compon-
ents make sure that the torch has cooled down.
Euro
3
1
2
3
*
