System Board Layout

System Board Layout
Figure 3 shows the locations of the major components on the system board.
3
2
1
34
33
32 31
30 29 28
26
27

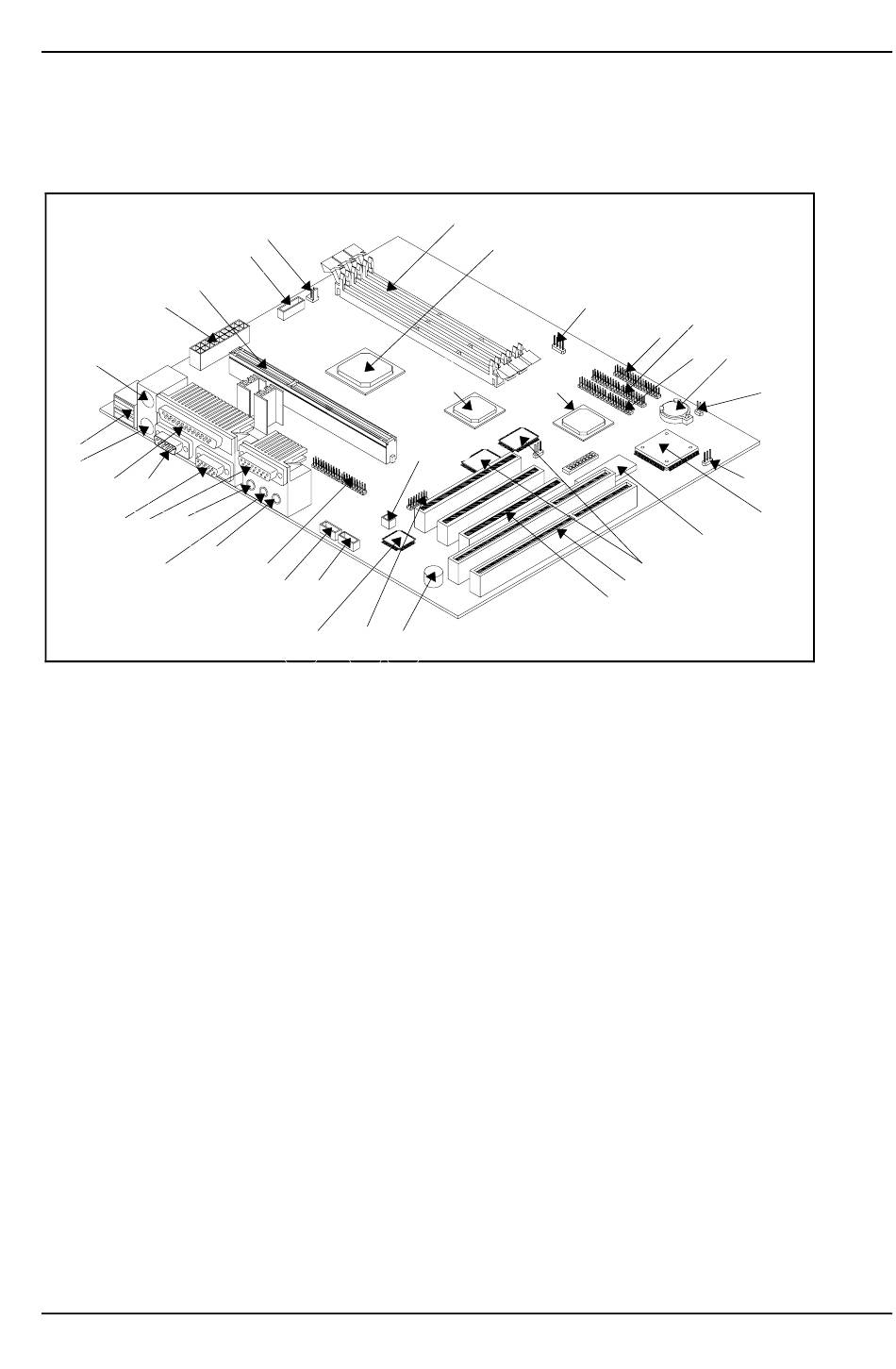

Figure 3 System Board Layout - Some components may not be present on the system board
1 = PS/2 mouse port
2 = ATX power connector
3 = CPU connector
4 = 5-pin fan power connector
5 = 2-pin fan power connector
6 = DIMM sockets
7 = Host-to-bridge controller
8 = IDE LED (light-emitting diode) connector
9 = FDD connector
10 = IDE2 connector
11 = IDE1 connector
12 = Battery
13 = Power button connector
14 = Power LED connector
15 = Ultra I/O controller
16 = System BIOS chip
17 = Video memory (SGRAM)
18 = ISA slot
19 = PCI slot
A26361-K535-Z120-1-7419
5
4
25
24
23
22 21 20
6
7
35
36
37
20 = Buzzer
21 = For CS4610 header
22 = ISA audio codec
23 = CD-in connector
24 = Fax/voice/modem connector
25 = Feature connector
26 = Mono microphone-in port
27 = Stereo line-in port
28 = Stereo line-out port
29 = Game/MIDI port
30 = COM2 port
31 = COM1 port
32 = Parallel port
33 = PS/2 keyboard port
34 = USB ports
35 = 3-D AGP video controller
36 = PCI-to-ISA bridge controller
37 = Modem ring-in connector
System Board V66XA
8
9
10
11 12
14
16
17
18
19
13
15
English - 49
