2.15 Air Grille

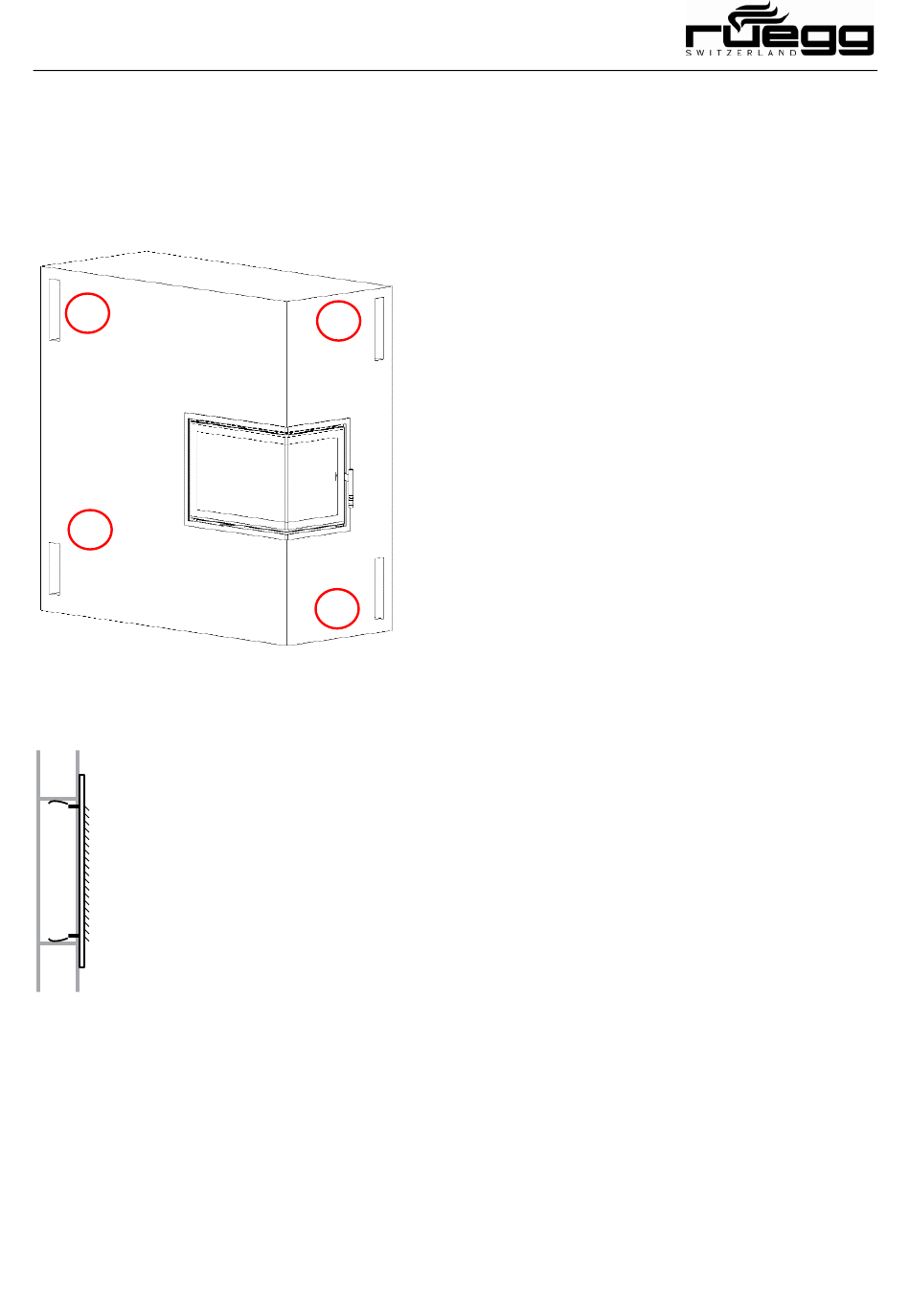

Air grilles, whose purpose is to circulate air, may be fitted to the casing of your fireplace. Ambient air
enters the fireplace casing through the bottom air grille and the heated air escapes through the top air
grille into the installation room. The air grilles can be lockable or not lockable, depending on the
design. The valves must always be fully open when the fireplace is being used.
Open or close the air grille on the corresponding gate valve.
2
1
The air grilles are fixed into the casing with clamping plates. If necessary, you can remove the air grille
by pulling it out and fit it again by pushing it back in.
Instruction Manual
1. Air grille INLET
2. Air grille EXIT
