8.3
Remote display with 2 or 3 monitor-
ing units
1. Start initial commissioning of one of the systems, hereaf-
ter known as System A. Perform only the steps 1. to 3. in
Remote display with 1 monitoring unit p. 46.
2. Replace the monitoring unit display of the next system
(System B) with the display from System A.
3. Perform initial commissioning of System B, as described
in step 1 for System A.
4. Replace the monitoring unit display of the next system
(System C) with the display from System B.
5. Perform initial commissioning of System C, as described
in step 1 for System A.
6. Perform steps 4. to 7. in Remote display with 1 monitor-
ing unit. The following applies:

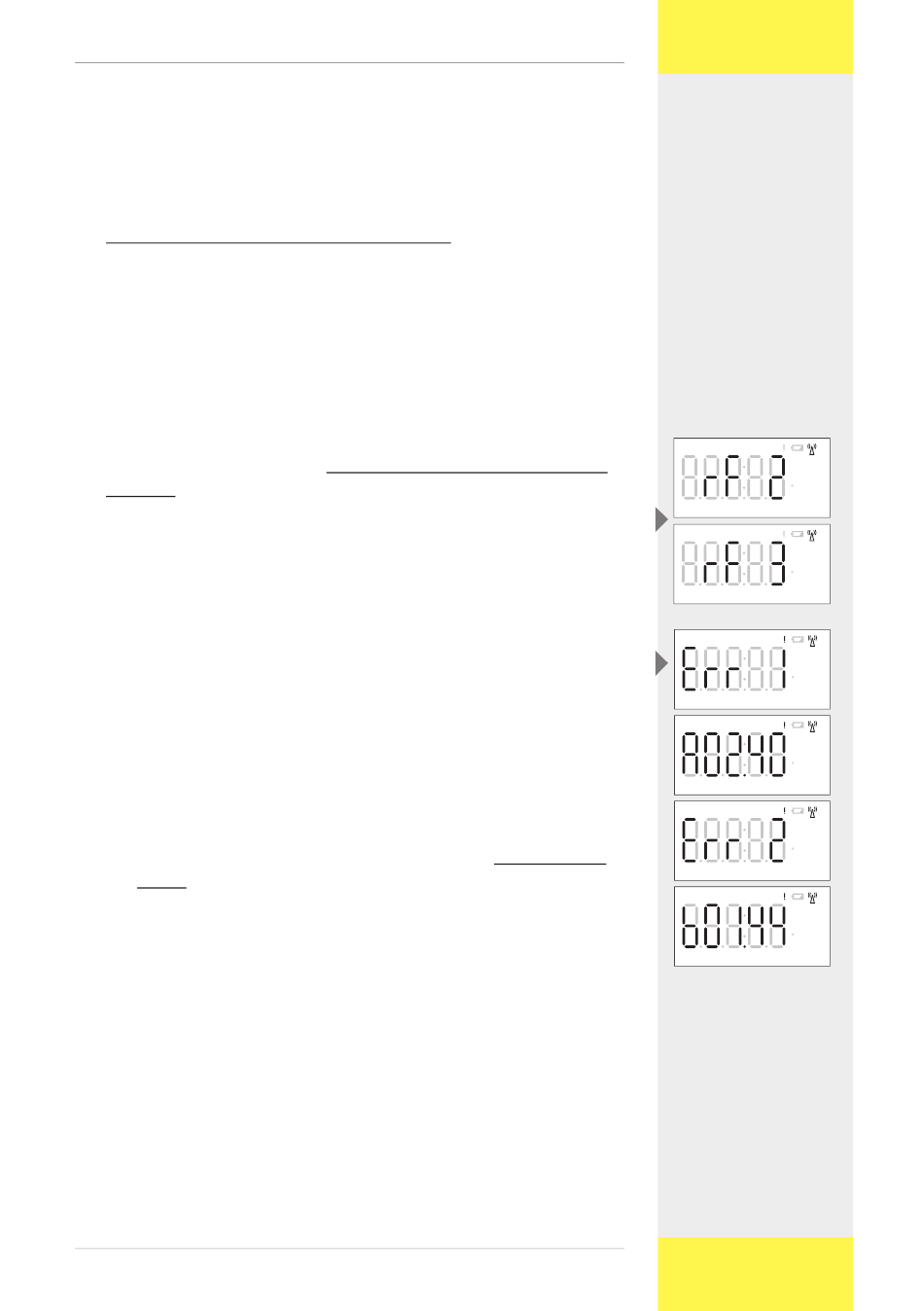

After the display test, the number of HF connections
–
that have been established is displayed: rF 2 or rF 3.
The system is now ready for operation.
The specified output and power values are now the
–
respective summed values of the three individual
systems.
System messages are displayed alternately:
–
• Error message: Err and the error number
• System letter A, B or C (A, b, C), inverter number
and error code
Example (see adjacent Fig.):
Err 1 / A02.40
Err 2 / b01.44
More information on this is provided in Display mes-
sages.
