Initial commissioning
8.1
Monitoring unit
Function

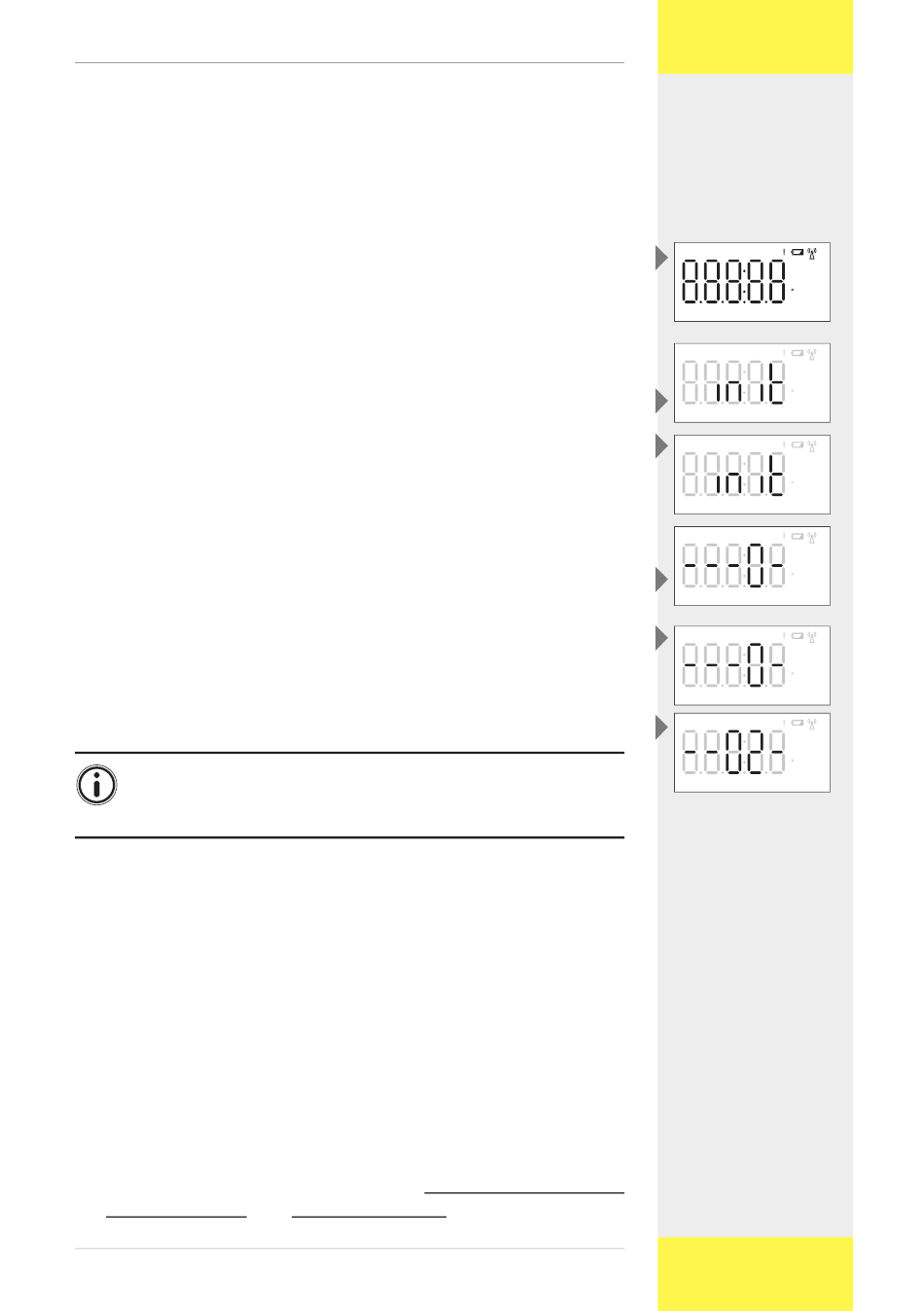

When switched on for the first time, the monitoring unit
performs the following steps:
1. Display test: All symbols illuminate at the same time for
approx. 2 seconds.
2. The monitoring unit detects the units that are connected
to the system (irradiation sensors
and inverters). During the process the display shows the
following information:
init, IRRAD and TEMP while searching for sensors
–
init and POWER while searching for inverters
–
3. Once all system components have been detected, the
display shows the system configuration in 3 steps:
IRRAD: no irradiation sensors
–
TEMP: no temperature sensors
–
POWER: number of detected inverters
–
1)
Note
The possibility of connecting irradiation and tempera-
ture sensors is not implemented.
4. After displaying the system information the display shows
the Total energy generated by the system. The following
applies:
–
When one or more system messages are displayed alter-
nately (e.g. Err 1 and 01.40), then the grid voltage of
inverter 01 lies outside the specified range of 230 V ± 20 %.
At this point this is not an error because 230 V was not
present when the monitoring unit was switched on ans the
inverter must wait 20 seconds before it can become active.
–
The system messages disappear after a short period of
time.
–
An exclamation mark „!" is displayed when at least 1
system message is present.
More information on this is provided in Remote display with 1
monitoring unit and Display messages.
