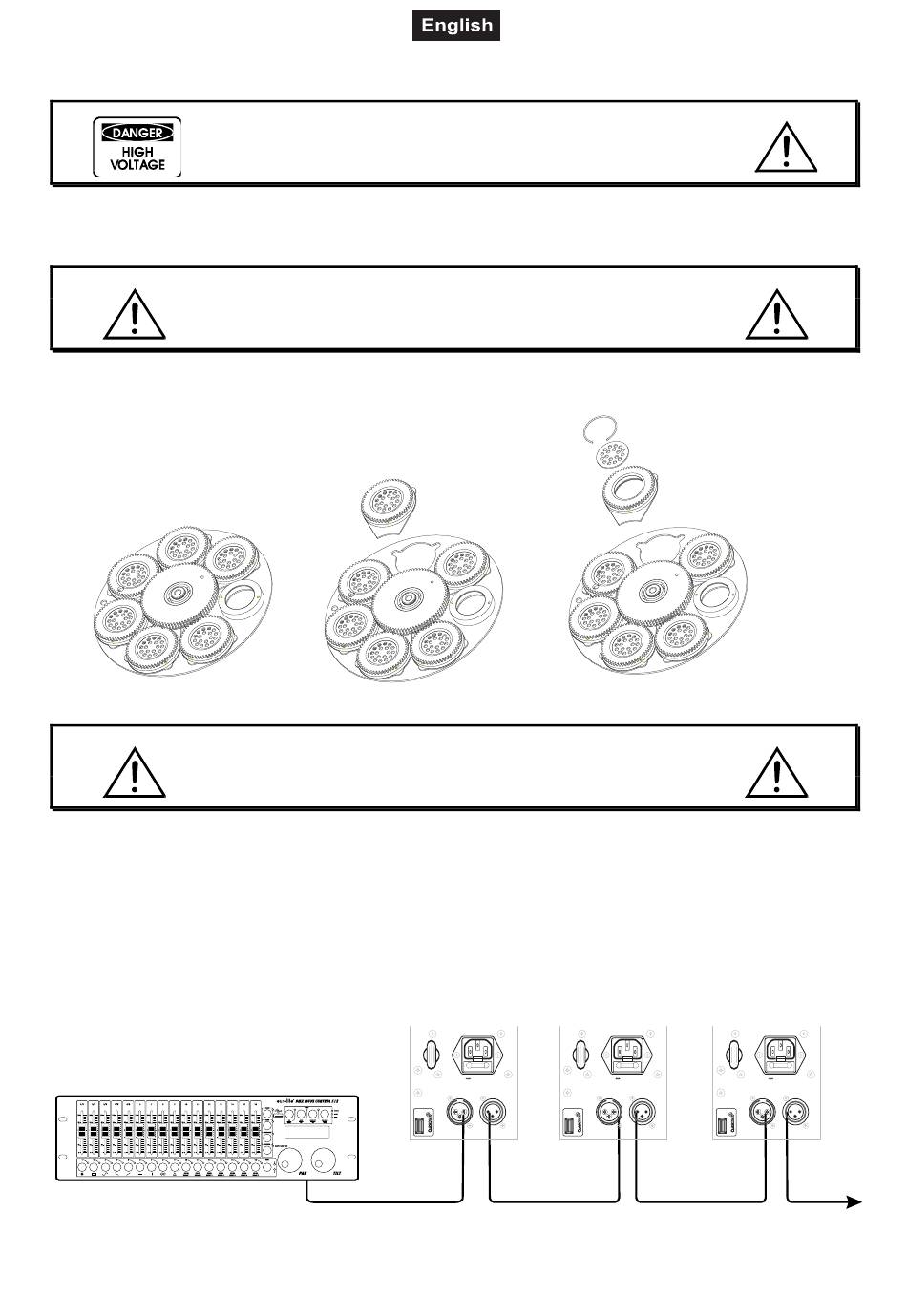

Inserting/Exchanging gobos

If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged, please
follow the instructions below:
Remove the fixation-ring with an appropriate tool. Remove the gobo and insert the new gobo. Press the
fixation-ring together and insert it in front of the gobo.

CONNECTIONS

DMX512 control

DMX Controller DMX Controller DMX Controller
Install the gobos with the device switched off only.
Unplug from mains before!
Never unscrew the screws of the rotating gobo
as the ball bearing will otherwise be opened!
Slot-in gobo-system for exchanging gobos without tools!
Inserting/Exchanging gobos as described above.
Program Program Program
Chase32 Step100 Chase32 Step100 Chase32 Step100
DANGER!
CAUTION!
Notes!
Device 1
Starting Address 1 Starting Address 11
POWER
SAFETY EYELET SAFETY EYELET
100-240V ~
50/60 Hz
T1A/250V
DMX IN DMX OUT
21/28
Device 2 Device 2 Device 3
Starting Address 21
POWER
SAFETY EYELET
100-240V ~
50/60 Hz
T1A/250V
DMX IN DMX OUT DMX IN
