3.

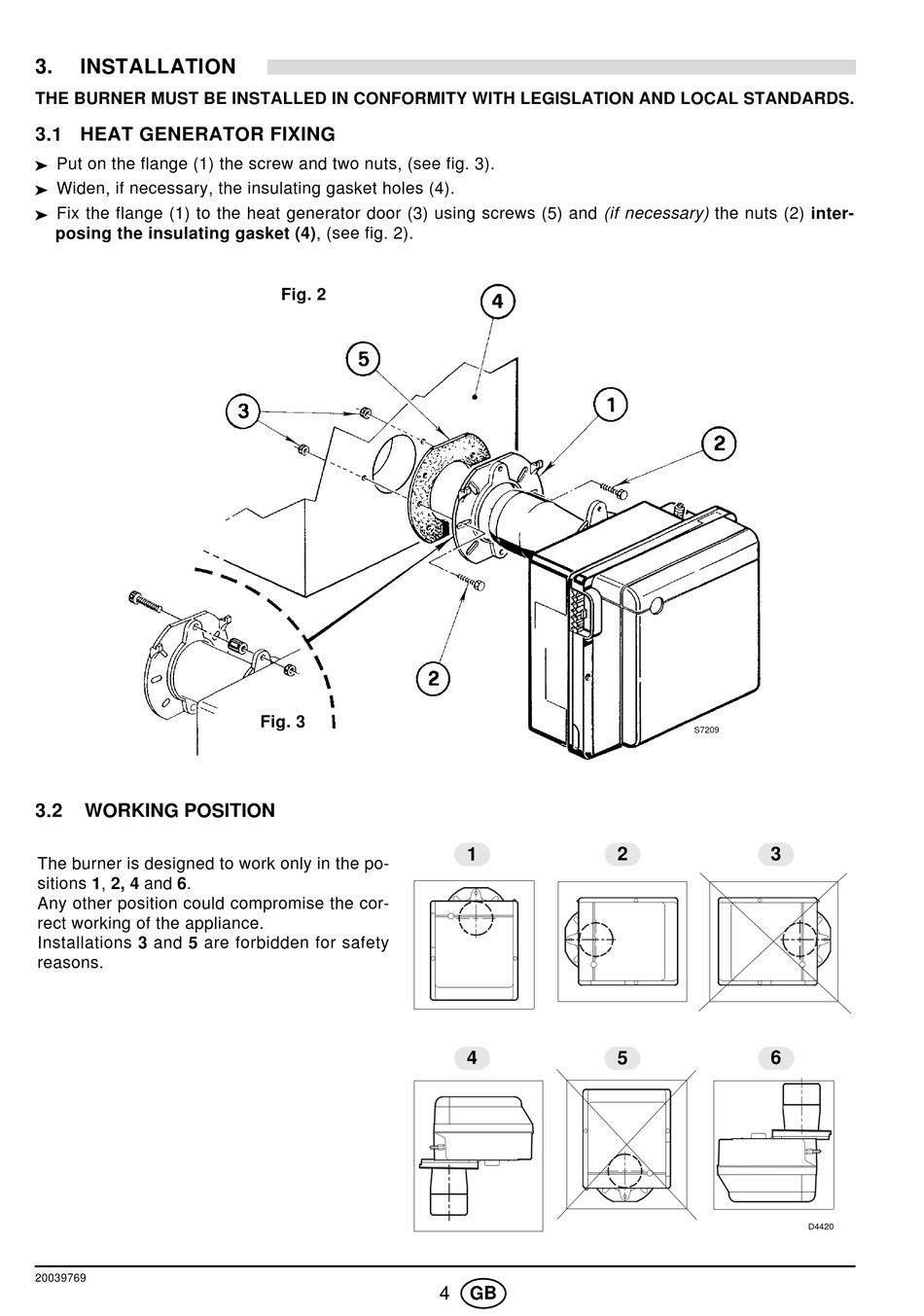

INSTALLATION
THE BURNER MUST BE INSTALLED IN CONFORMITY WITH LEGISLATION AND LOCAL STANDARDS.

3.1 HEAT GENERATOR FIXING

Put on the flange (1) the screw and two nuts, (see fig. 3).
Widen, if necessary, the insulating gasket holes (4).
Fix the flange (1) to the heat generator door (3) using screws (5) and (if necessary) the nuts (2) inter-
posing the insulating gasket (4), (see fig. 2).
3.2

WORKING POSITION

The burner is designed to work only in the po-
sitions 1, 2, 4 and 6.
Any other position could compromise the cor-
rect working of the appliance.
Installations 3 and 5 are forbidden for safety
reasons.
20039769
Fig. 2
Fig. 3
1
4
4 GB
S7209
2
3
5
