9.11 Linking the robotic mower and
docking station
The robotic mower can only be
operated if it correctly receives the
wire signal emitted by the docking
station. ( 11.16)

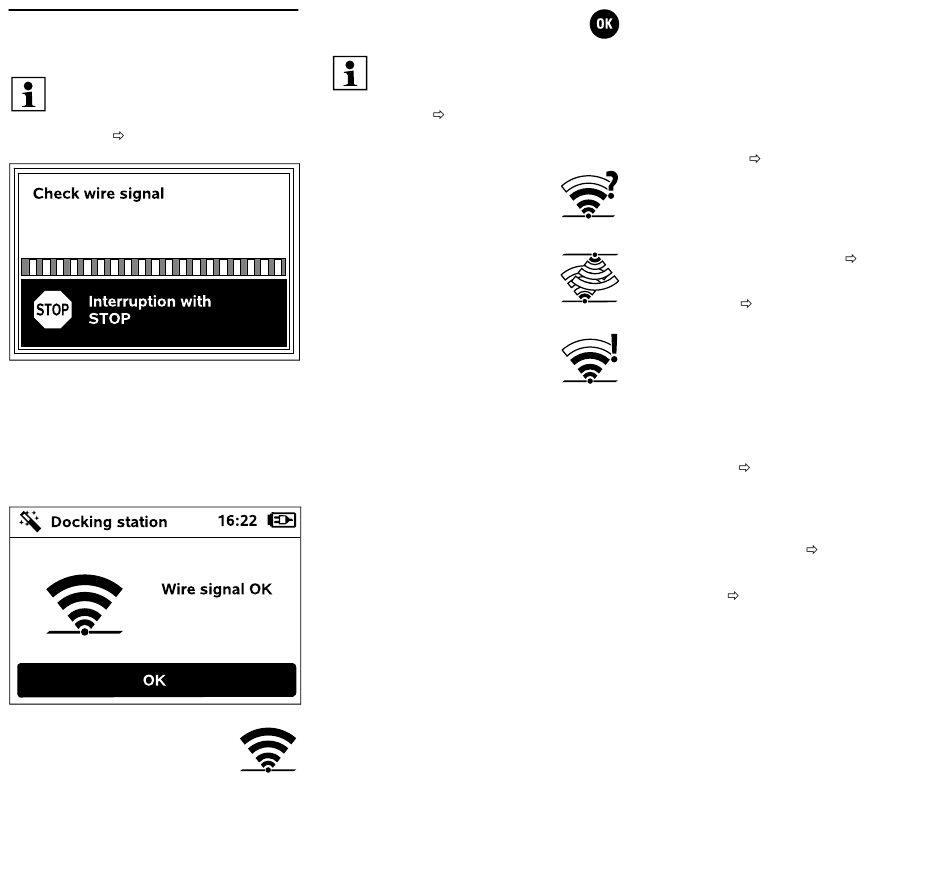

Checking the wire signal may take several
minutes. The red STOP button on top of
the machine terminates the link, the
previous installation assistant step is
called up.
Normal reception
Wire signal OK:
The text "Wire signal OK"
appears on the display. The
robotic mower and docking
station are correctly linked.
132
Continue initial installation by
pressing the OK button.
RMI 422 PC:
"Standard" energy mode is
activated following successful
linking. ( 11.9)
Interrupted reception
The robotic mower receives no
wire signal:
The text "No wire signal"
appears on the display.
The robotic mower receives a
faulty wire signal:
The text "Check wire signal"
appears on the display.
The robotic mower receives a
reversed-polarity wire signal:
The text "Connections swapped
or iMOW® outside" appears on
the display.
Possible cause:
– Temporary malfunction
– Robotic mower is not docked
– Perimeter wire has been connected
incorrectly (reversed polarity)
– Docking station is switched off or not
connected to mains supply
– Faulty plug connections
– Minimum perimeter wire length not
reached
– A coiled power cable in the vicinity of
the docking station
– Perimeter wire ends excessively long or
not sufficiently twisted together
– Perimeter wire break
– Extraneous signals such as a mobile
phone or the signal from another
docking station
– Live underground cables, reinforced
concrete or disruptive metals in the
ground under the docking station
– Maximum length of the perimeter wire
exceeded ( 12.1)
Remedy:
– Repeat linking without other corrective
action
– Dock the robotic mower (
– Connect the perimeter wire ends
correctly ( 9.10)
– Check the docking station mains
connection, roll out the power cable in
the vicinity of the docking station, do not
set down coiled
– Check the seating of the wire ends in
the terminal block, shorten excessively
long wire ends and twist the wire ends
together ( 9.10)
– For smaller mowing areas with a wire
length of less than 80 m, the AKM 100
supplied must be installed together with
the perimeter wire ( 9.9)
– Check the LED indicator on the docking
station ( 13.1)
– Repair the wire break
– Switch off mobile phones or nearby
docking stations
– Change the position of the docking
station or remove interference sources
under the docking station
– Use a perimeter wire with larger cross
section (special accessory)
0478 131 9963 F - EN
15.6)
