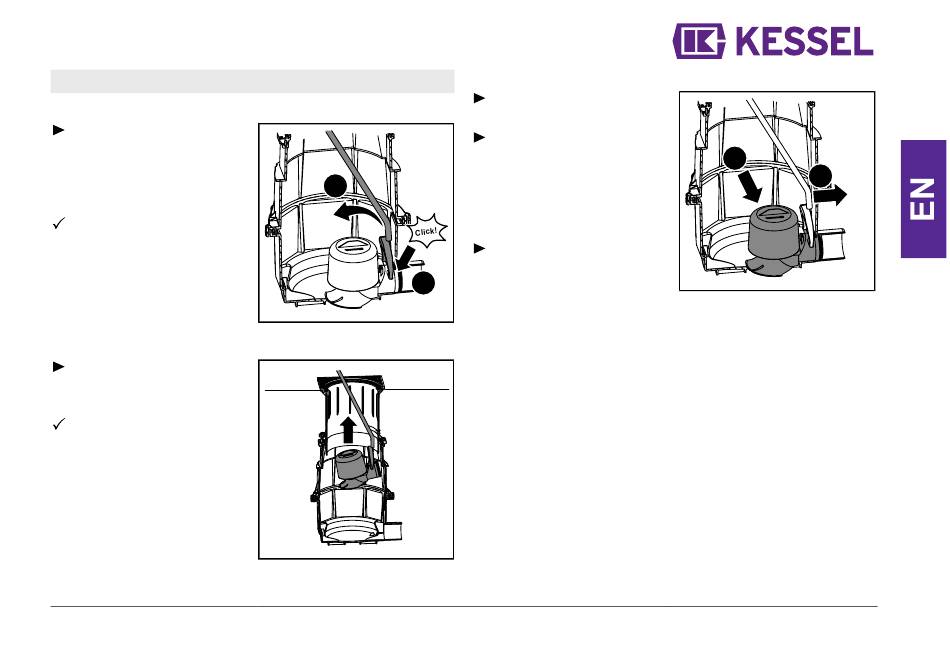

3.2 Odour trap
Odour trap removal
Press the lift-out device
onto the odour trap so that
the two tabs on the side
latch into the pins of the
odour trap (1).
The odour trap is automat-
ically pulled out of the seal
seat (2) by tilting the rod to
the back.
Cleaning the pipe
The odour trap can now
be pulled upwards on the
lift-out device.
The pipe cross-section is
clear for cleaning.
010-050
Odour trap installation
Coat the seals with lubri-
cant.
Position odour trap with
lift-out device at the front
on the pipe; it is pushed
2
forwards into the seal seat
automatically by tilting the
rod (2).
Remove the lift-out device
from the odour trap by
1
pulling it upwards.
Installation and operating instructions
1
2
