Configuring the MMI

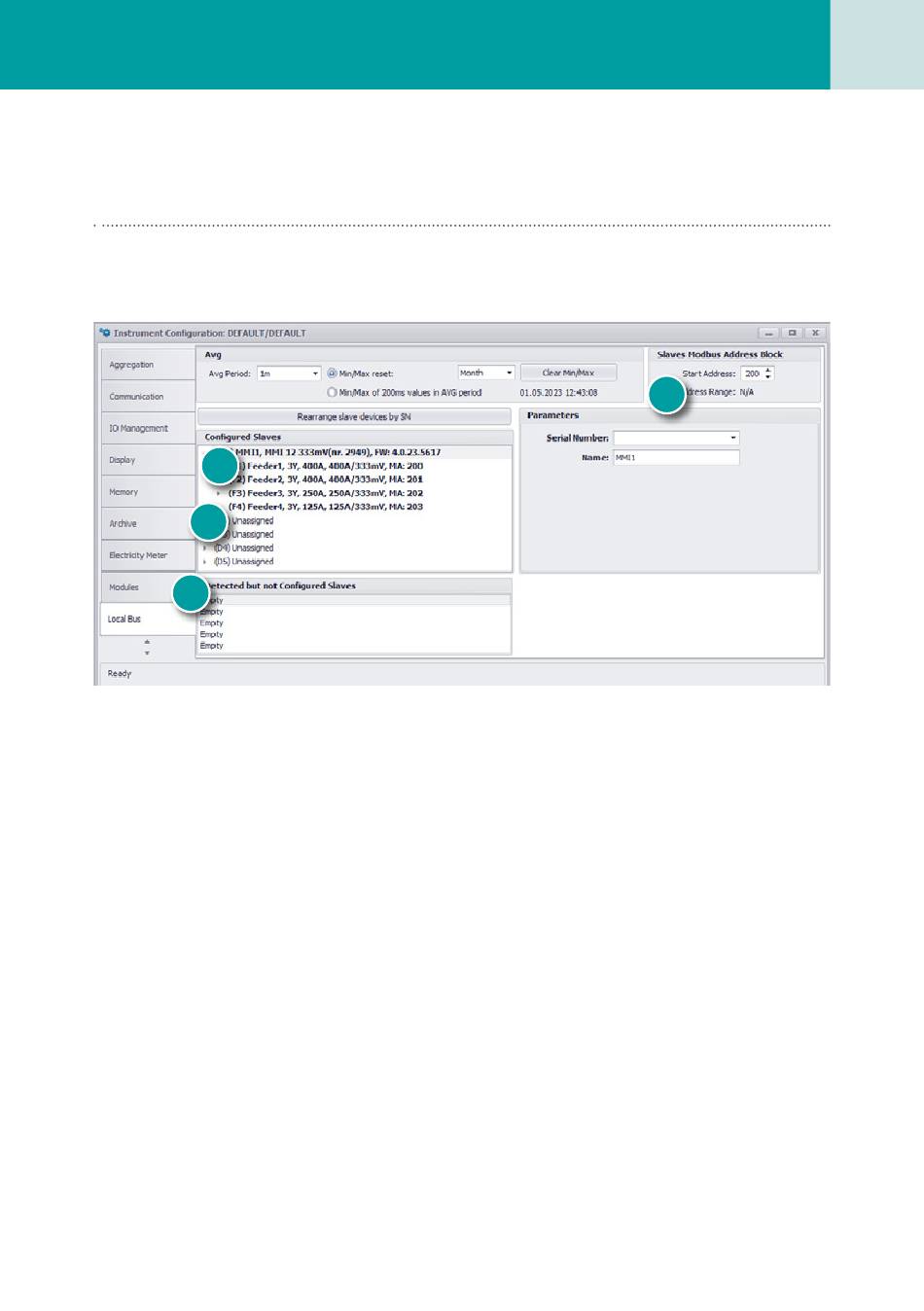

After you are connected to the UMD 98LB, you can configure the connect-
ed MMIs in the configuration under "Local Bus".
3
2
1
1. Detected but not Configured Slaves
All (max. 5) MMIs that are connected via the Local Bus but not yet con-
figured in the UMD are displayed here.
2. Assigning MMI
D1 – D5 are the available slots on the Local Bus that can be occupied
with MMIs. Under "Parameter", the respective module can be added by
selecting the serial number and a name can be assigned.
3. Selecting current input
F1 – F4 are the respective 3-phase inputs at the MMI.
They can be activated and configured under "Parameter".
4. Device address
The individual device addresses of the MMI inputs start from 200 by de-
fault. The first module thus has the addresses from 200 (F1) – 203 (F4).
Notice:
Recording of the Local Bus data must be activated in the "Archive" tab.
