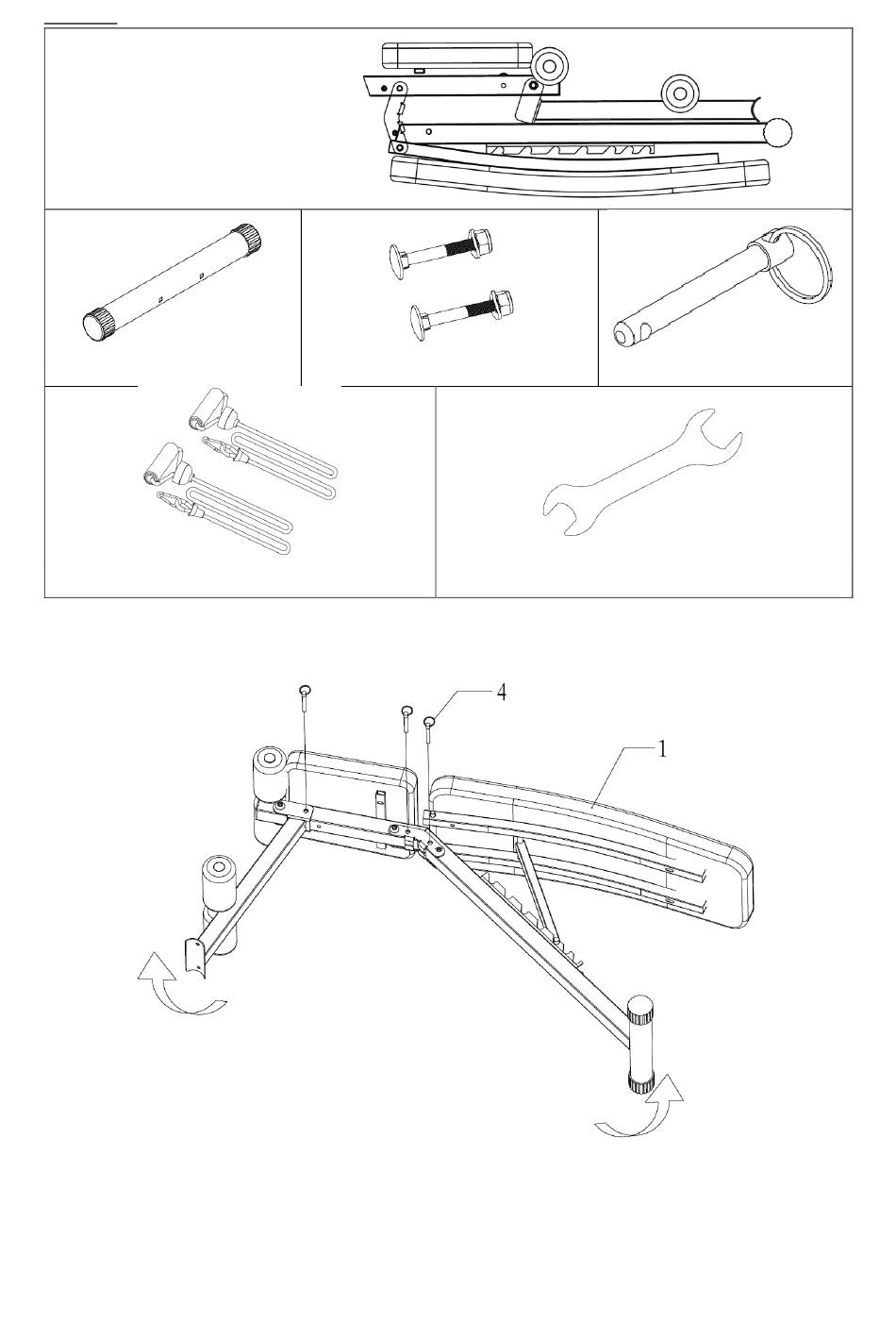

PART LIST
#1. Main frame – 1PCS
#3. Carriage screw M8*60 -2PCS
#2. Support tube – 1PCS
#4. Plug D10*60 – 3PCS
#5. Pull cord – 2PCS
#6. Open wrench – 1PCS
ASEMBLY MANUAL
Assembly step 1
Step 1: Remove the main frame group (1) from the package, open the main frame group in the
direction indicated by the arrow, and place the main frame group on the ground side in the direction
of the above figure and align the corresponding p in holes. Then Insert the three pins d10*60(4) into
the pin holes respectively (as shown in the figure above).
