Setting the system

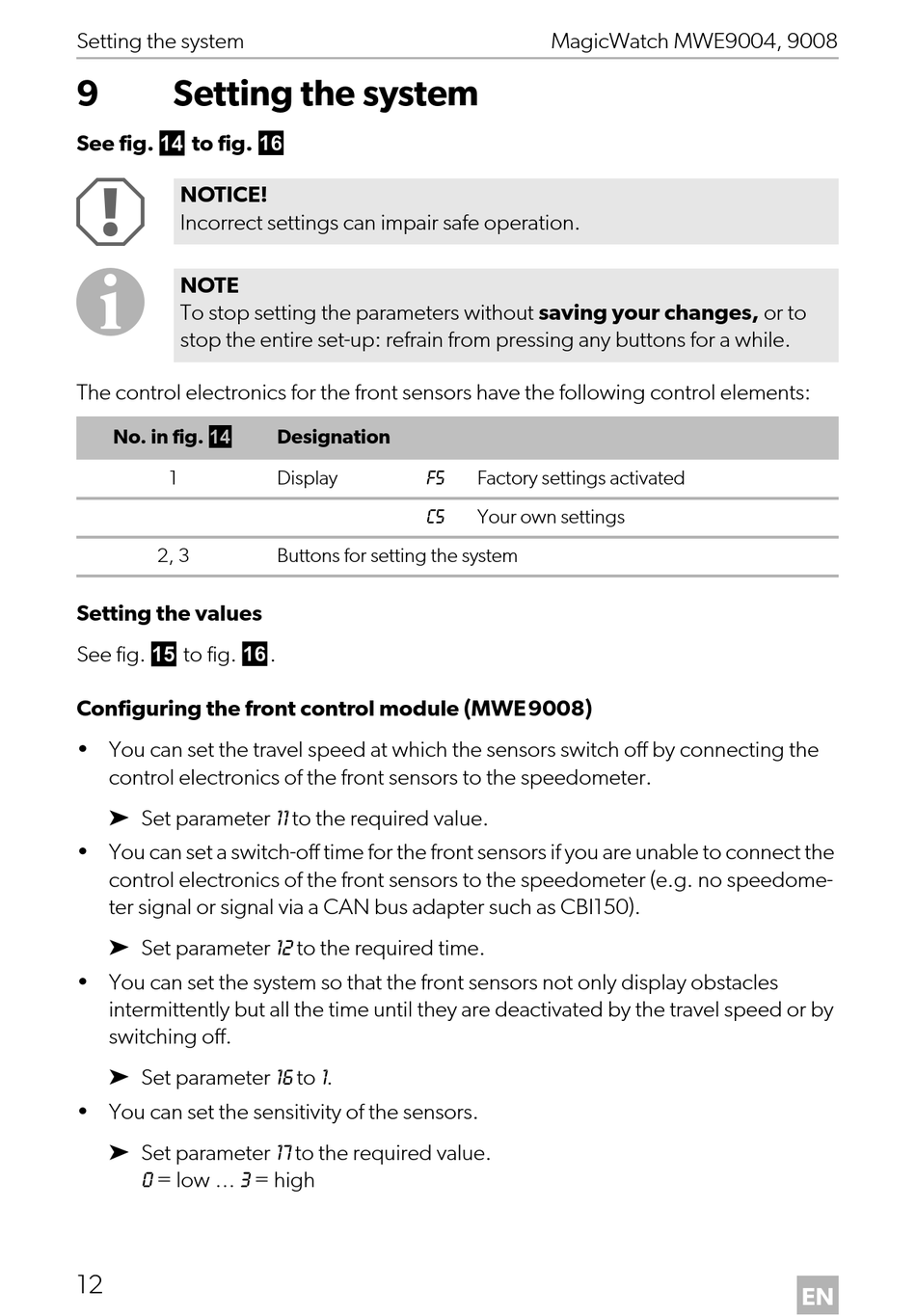

9 Setting the system
See fig. d to fig. f
A
NOTICE!
Incorrect settings can impair safe operation.
I
NOTE
To stop setting the parameters without saving your changes, or to
stop the entire set-up: refrain from pressing any buttons for a while.
The control electronics for the front sensors have the following control elements:
No. in fig. d
1
2, 3
Setting the values
See fig. e to fig. f.
Configuring the front control module (MWE9008)
• You can set the travel speed at which the sensors switch off by connecting the
control electronics of the front sensors to the speedometer.
➤ Set parameter 11 to the required value.
• You can set a switch-off time for the front sensors if you are unable to connect the
control electronics of the front sensors to the speedometer (e.g. no speedome-
ter signal or signal via a CAN bus adapter such as CBI150).
➤ Set parameter 12 to the required time.
• You can set the system so that the front sensors not only display obstacles
intermittently but all the time until they are deactivated by the travel speed or by
switching off.
➤ Set parameter 16 to 1.
• You can set the sensitivity of the sensors.
➤ Set parameter 17 to the required value.
0 = low ... 3 = high
12
Designation
Display
F5
C5
Buttons for setting the system
MagicWatch MWE9004, 9008
Factory settings activated
Your own settings
EN
