UK | 10 Mounting of soffit elements PP 45 LE, PP 45 LEV and PP 45 LEW90
NOTICE
Damage to unit and damage to brickwork
caused by condensate in the event of in-
correct mounting where condensate runs
towards the internal wall if the wall sleeve
and soffit duct are at too slight an incline.
Mount wall sleeve and soffit duct with incline
of 1 to 2 % to the condensate outlet side.
Mounting wall sleeve
1. Fit wall sleeve according to Chapter 8.1.
The wall sleeve must protrude 20 to 25 mm
beyond the external wall so that the soffit
element can be attached.

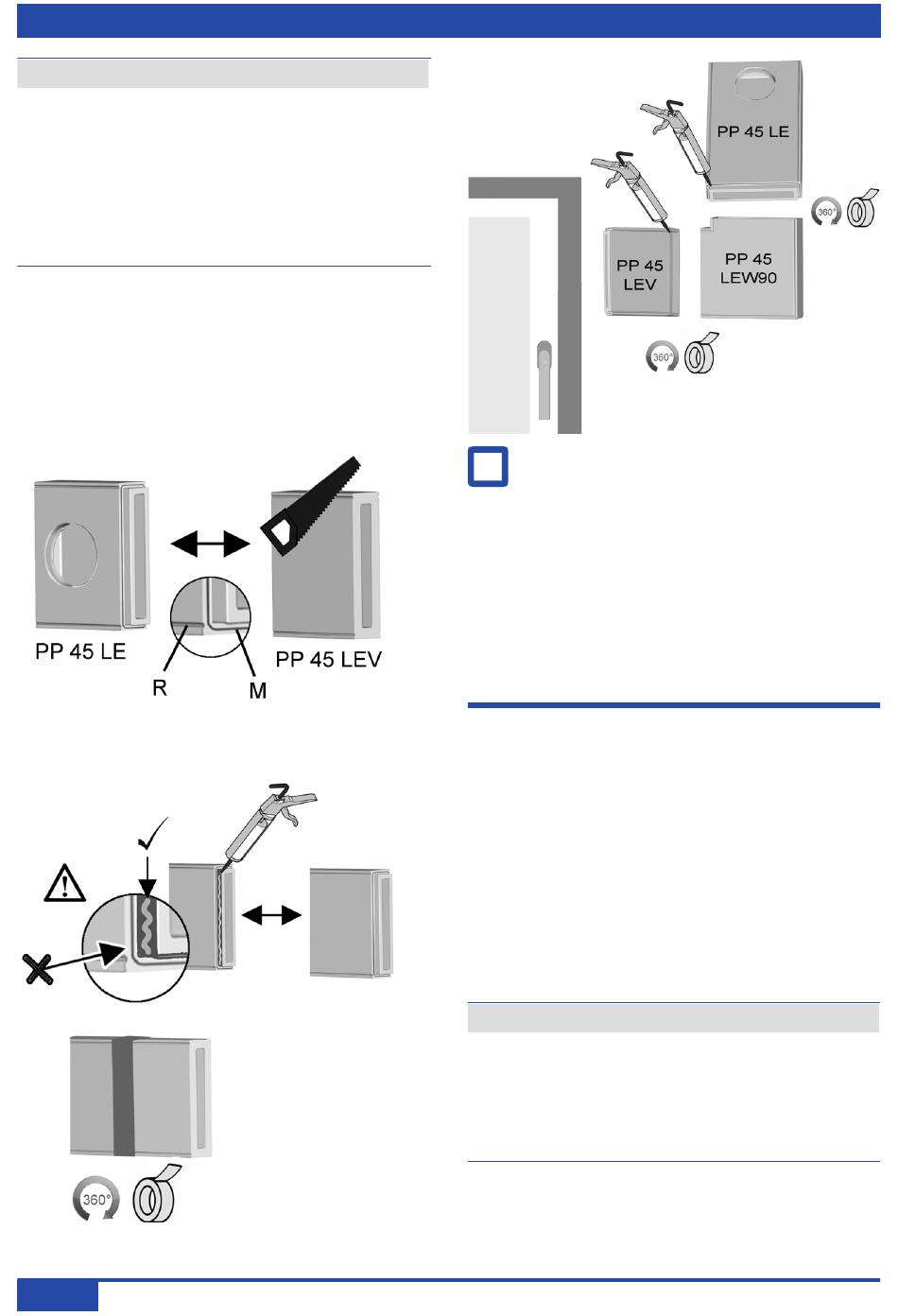

Preparing soffit element
R Longitudinal rib
M Mounting adhesive
34
For extensions PP 45 LEV or 90°
i
angle elements PP 45 LEW90: Apply
mounting adhesive [M] all around slot
on face end. Glue the soffit element with
the extension or angle. Be sure to seal
around the couplings, e.g. with adhe-
sive tape. Saw off extension to desired
installation dimension. Ensure that soffit
terminates flush with installation location.
Mounting soffit element
1. On external wall side, slide rubber seal [2]
onto protruding wall sleeve.
2. Slide soffit element onto wall sleeve/rub-
ber seal up to stop. The soffit duct must be
flush with the wall. Shorten wall sleeve if
the soffit duct protrudes beyond the wall.
3. Align soffit duct and ensure an incline of
1 to 2 % towards the window.
4. Secure soffit element.
NOTICE
Incorrect screw connection will result in
unit damage. If screwing directly to the wall,
drill holes with a max. diameter of 8 mm exac-
tly in the groove [R]. Never drill the soffit duct
at any other point.
