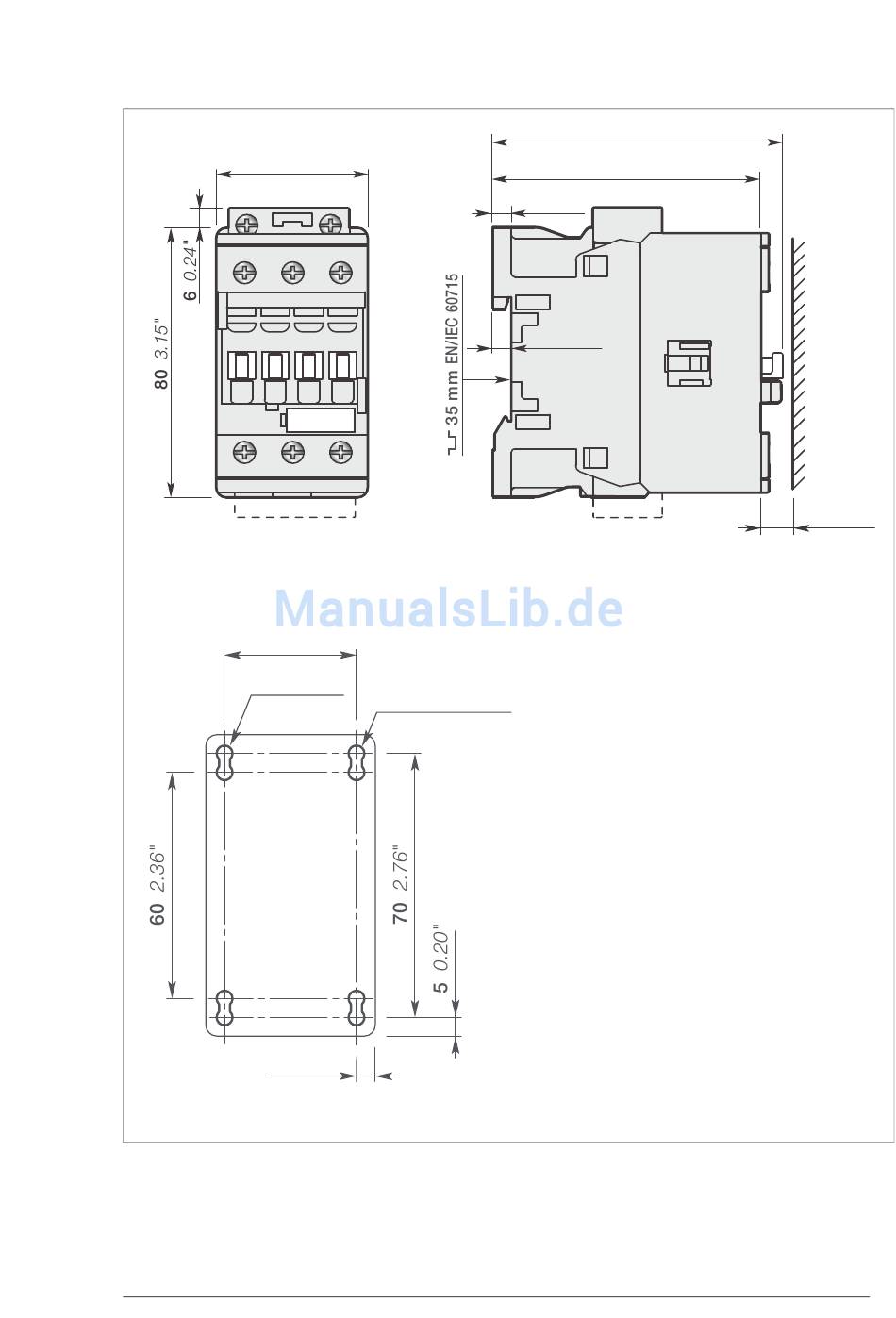

AF26-30-00-13_contactor dimensions.pdf

AF26-30-00-13

AF26-30-00-13
86 3.39"
45 1.77"
80 3.15"
5.5 0.22"
5.5 0.22"
10 0.39"
AF26, AF30, AF38
35 1.38"
2 x
ø 4.2 0.17"
M4 8-32 UNC
Drilling pattern
5 0.20"
www.abb.com
AF26, AF30, AF38
