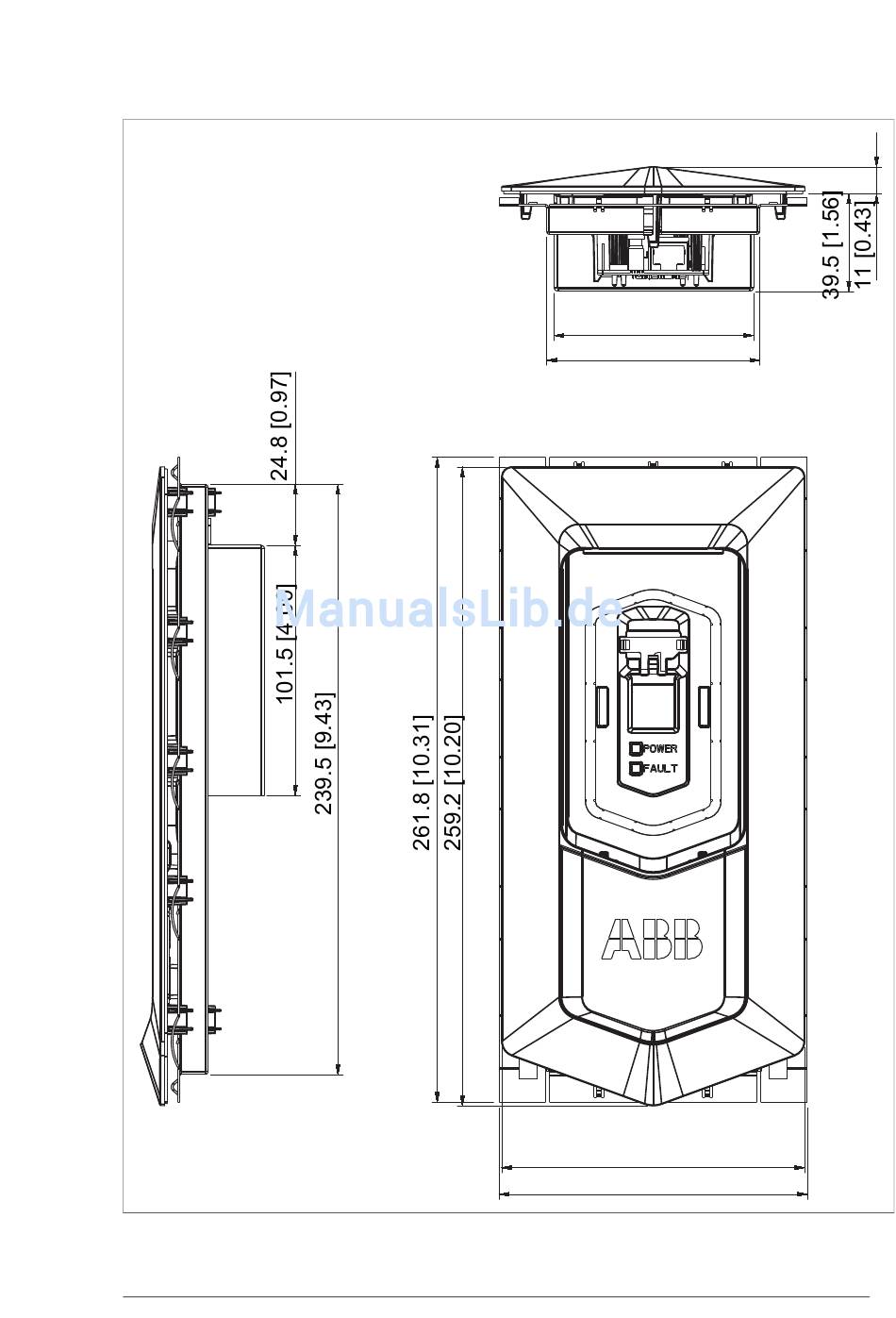

ACX-AP-x control panel with door mounting kit
DPMP-01 Montagesatz
Cutting in the cabinet door:
109 mm × 223 mm (4.29 in. × 8.78 in.)
Plate thickness:
1.5...2.5 mm (0.059...0.098 in.)
Dimension drawings 155
Maßzeichnungen 179
81.0 [3.19]
86.5 [3.41]
123.1 [4.85]
125.0 [4.92]
