Operation
5.3
Setting and operation WEZ-6
•
First measure the thickness of the vertical long leg of the object to be gripped (L-stone).
•
Then adjust the opened (locked) implement (WEZ) with the movable gripping jaws (9) on the
crossbar with adjustment holes (10) to the smallest possible gripping width.
•
To do this, open the lynch pin (A) and then remove the pin (B) and, after adjusting the gripping
range, reinsert it and secure it with the lynch pin (A). → see picture A
•
Before lifting the bare implement (WEZ without load), make sure that the automatic changing
device (4) is engaged and that the implement thus remains open.
IMPORTANT: the suspension eye (1) must be in the rear position (see Fig. B1 "empty stroke") of
the suspension lug (2). → Picture B/Picture B1
10
53100347 / 53100439
A
B
9

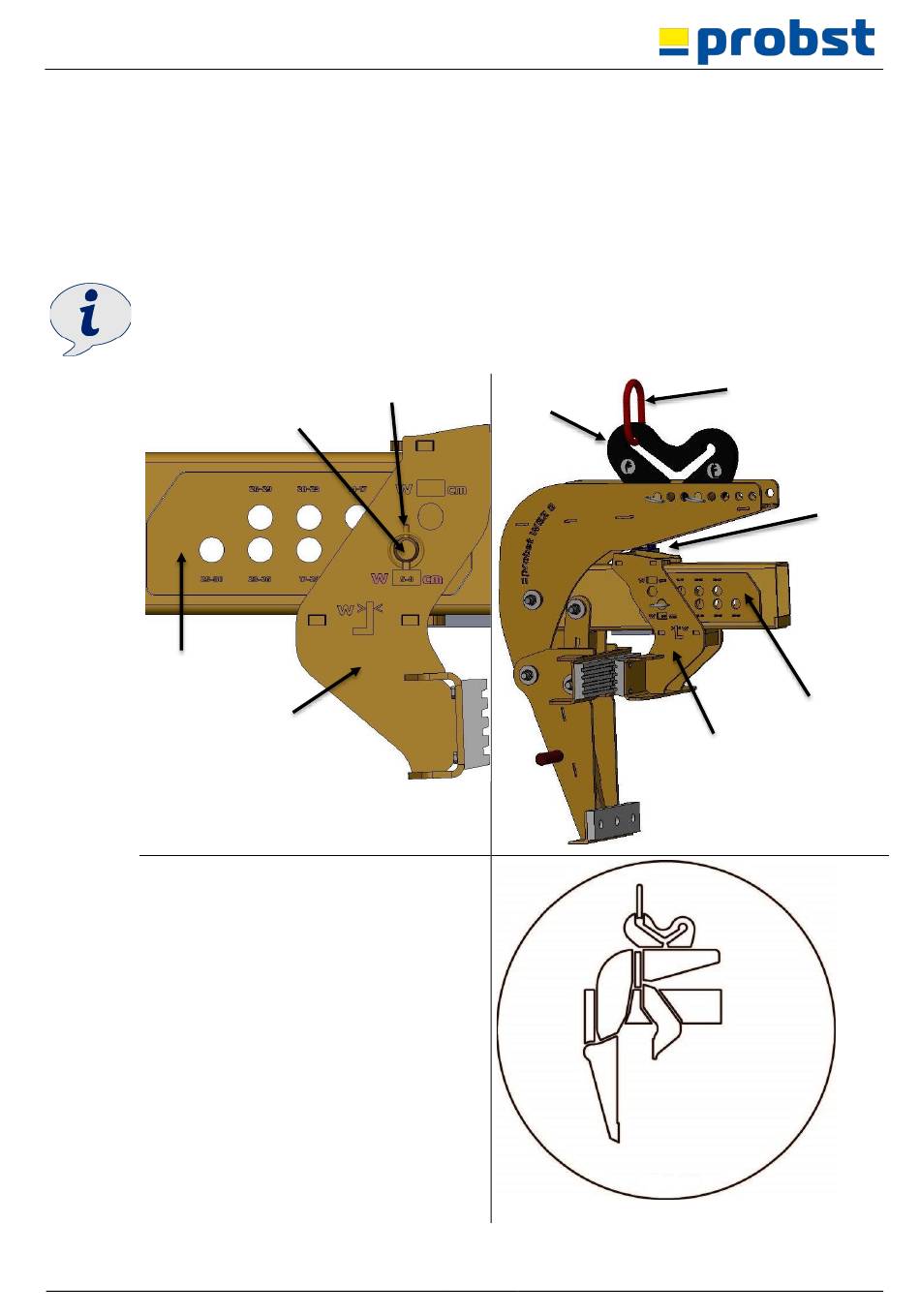

Picture A
2
Picture B1 (Position idle stroke)
21 / 29
1
4
10
9
Picture B
