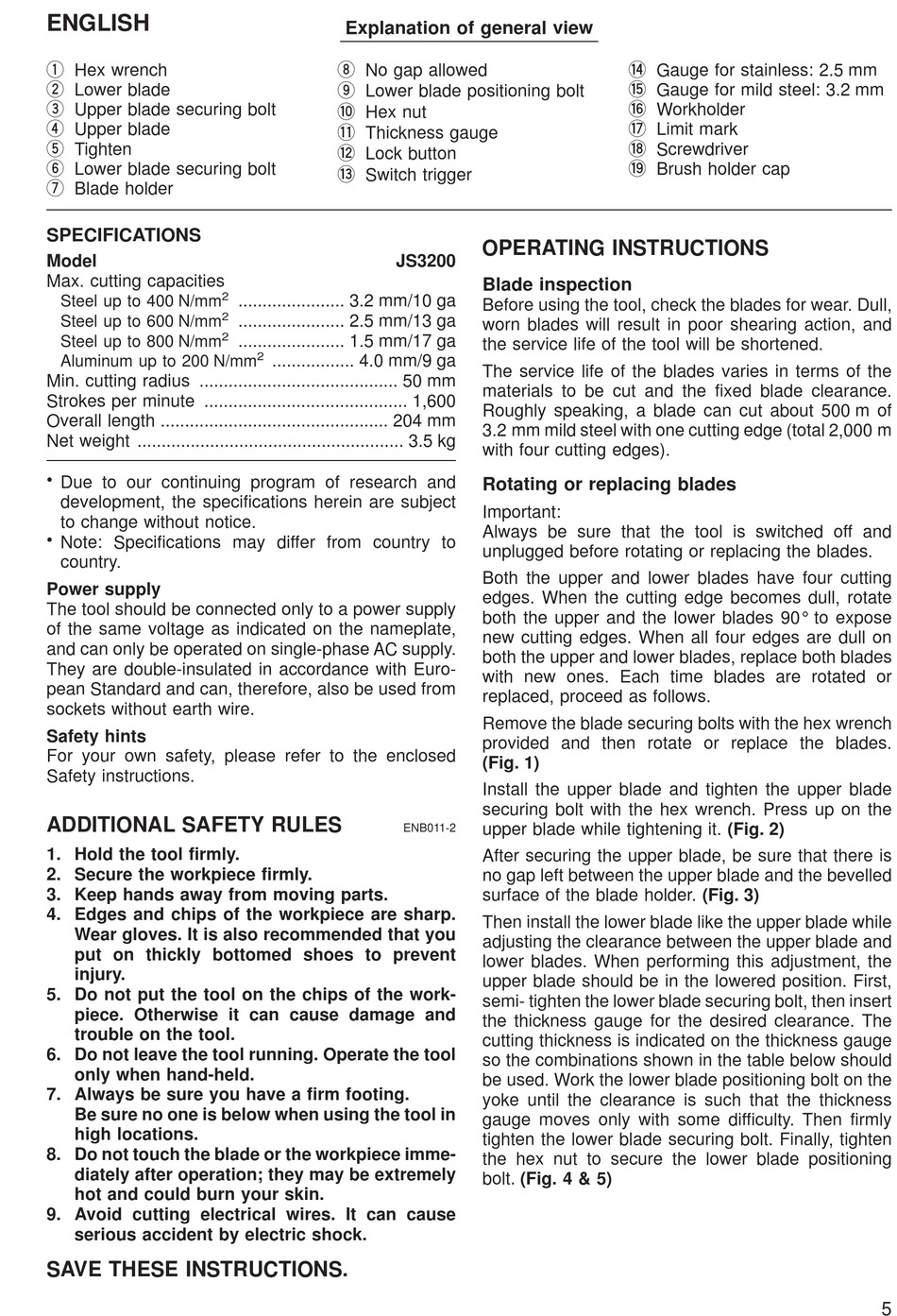

ENGLISH
1 Hex wrench
2 Lower blade
3 Upper blade securing bolt
4 Upper blade
5 Tighten
6 Lower blade securing bolt
7 Blade holder

SPECIFICATIONS

Model
Max. cutting capacities
Steel up to 400 N/mm
Steel up to 600 N/mm
Steel up to 800 N/mm
Aluminum up to 200 N/mm
Min. cutting radius ......................................... 50 mm
Strokes per minute .......................................... 1,600
Overall length ............................................... 204 mm
Net weight ....................................................... 3.5 kg
• Due to our continuing program of research and
development, the specifications herein are subject
to change without notice.
• Note: Specifications may differ from country to
country.
Power supply
The tool should be connected only to a power supply
of the same voltage as indicated on the nameplate,
and can only be operated on single-phase AC supply.
They are double-insulated in accordance with Euro-
pean Standard and can, therefore, also be used from
sockets without earth wire.
Safety hints
For your own safety, please refer to the enclosed
Safety instructions.

ADDITIONAL SAFETY RULES

1. Hold the tool firmly.
2. Secure the workpiece firmly.
3. Keep hands away from moving parts.
4. Edges and chips of the workpiece are sharp.
Wear gloves. It is also recommended that you
put on thickly bottomed shoes to prevent
injury.
5. Do not put the tool on the chips of the work-
piece. Otherwise it can cause damage and
trouble on the tool.
6. Do not leave the tool running. Operate the tool
only when hand-held.
7. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
8. Do not touch the blade or the workpiece imme-
diately after operation; they may be extremely
hot and could burn your skin.
9. Avoid cutting electrical wires. It can cause
serious accident by electric shock.
SAVE THESE INSTRUCTIONS.
Explanation of general view
8 No gap allowed
9 Lower blade positioning bolt
0 Hex nut
q Thickness gauge
w Lock button
e Switch trigger
2
...................... 3.2 mm/10 ga
2
...................... 2.5 mm/13 ga
2
...................... 1.5 mm/17 ga
2
................. 4.0 mm/9 ga
OPERATING INSTRUCTIONS
JS3200
Blade inspection
Before using the tool, check the blades for wear. Dull,
worn blades will result in poor shearing action, and
the service life of the tool will be shortened.
The service life of the blades varies in terms of the
materials to be cut and the fixed blade clearance.
Roughly speaking, a blade can cut about 500 m of
3.2 mm mild steel with one cutting edge (total 2,000 m
with four cutting edges).
Rotating or replacing blades
Important:
Always be sure that the tool is switched off and
unplugged before rotating or replacing the blades.
Both the upper and lower blades have four cutting
edges. When the cutting edge becomes dull, rotate
both the upper and the lower blades 90° to expose
new cutting edges. When all four edges are dull on
both the upper and lower blades, replace both blades
with new ones. Each time blades are rotated or
replaced, proceed as follows.
Remove the blade securing bolts with the hex wrench
provided and then rotate or replace the blades.
(Fig. 1)
Install the upper blade and tighten the upper blade
securing bolt with the hex wrench. Press up on the
upper blade while tightening it. (Fig. 2)
ENB011-2
After securing the upper blade, be sure that there is
no gap left between the upper blade and the bevelled
surface of the blade holder. (Fig. 3)
Then install the lower blade like the upper blade while
adjusting the clearance between the upper blade and
lower blades. When performing this adjustment, the
upper blade should be in the lowered position. First,
semi- tighten the lower blade securing bolt, then insert
the thickness gauge for the desired clearance. The
cutting thickness is indicated on the thickness gauge
so the combinations shown in the table below should
be used. Work the lower blade positioning bolt on the
yoke until the clearance is such that the thickness
gauge moves only with some difficulty. Then firmly
tighten the lower blade securing bolt. Finally, tighten
the hex nut to secure the lower blade positioning
bolt. (Fig. 4 & 5)
r Gauge for stainless: 2.5 mm
t Gauge for mild steel: 3.2 mm
y Workholder
u Limit mark
i Screwdriver
o Brush holder cap
