Table of contents
I. Operation and display...................................................29
1. General function ..........................................................30
2. Safety advice ...............................................................30
3. Disposal .......................................................................30
4. Inserting/replacing batteries ........................................31
5. Setting the date and time.............................................32
6. Installation on the radiator ...........................................33
7. Adapting run ................................................................40
8. Setting the weekly program .........................................40
9. Operating Modes .........................................................45
10. Configuration menu ...................................................45
11. Display content in normale Mode ..............................46
12. Boost function ............................................................46
13. Setting the holiday function .......................................47
14. Comfortable temperature and reduced temperature .47
15. Child safeguard/operating lock ..................................48
16. Activating heating pause (battery saving) ..................48
17. Setting the frost protection Mode...............................49
18. „Window open" function .............................................49
19. Setting the offset temperature ...................................50
20. Restoring the factory settings ....................................50
21. Intended use ..............................................................51
22. Troubleshooting and maintenance ............................51
23. Scope of delivery .......................................................52
24. Technical data ............................................................52
Please read this manual carefully in order to help you put the de-
vice into operation. Keep the manual handy so you can refer to it
at a later date!
1. English edition 07/2012
Documentation © 2012 eQ-3 AG, Germany.
All rights reserved.
CC-RT-O-CnL-W-R5-2, V1.3, Art-No. 130811
28 28

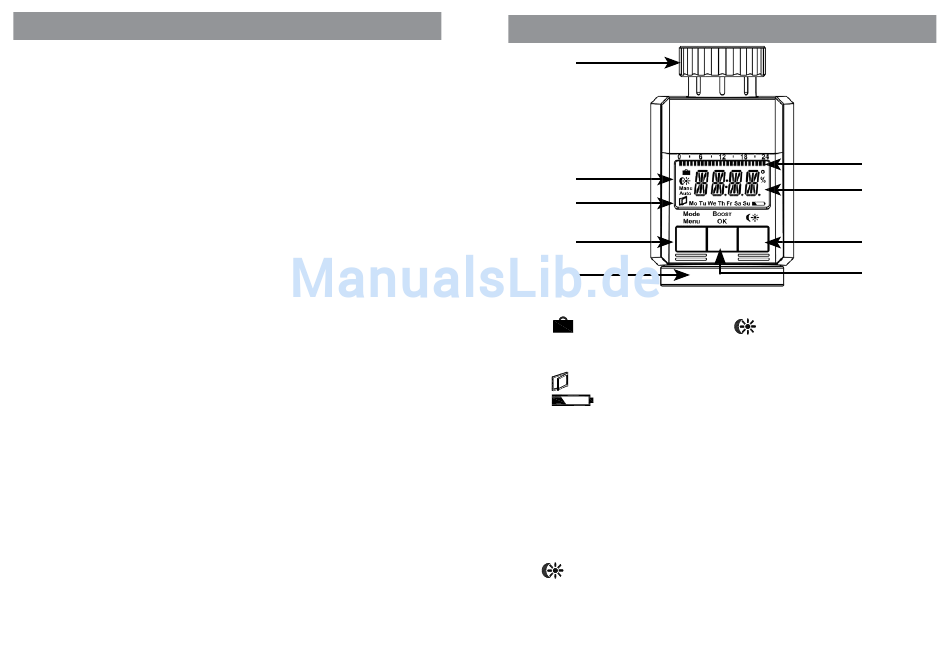

I. Operation and display
A
B
C
G
D
A
Union nut for fitting on the heating valve
B ( ) Holiday function, (
comfortable temperature, (Manu) manual Mode,
(Auto) automatic Mode
C ( ) „Window open" symbol, weekday,
( ) „Battery empty" symbol
D Selector dial: perform settings (e.g. temperature)
E
Set switching time periods in the weekly program
F Temperature display, time/date display, menu items,
functions
G Mode/Menu key: press the key briefly to change bet-
ween automatic Mode, manual Mode and holiday func-
tion; press the key longer than 3 seconds to open the
configuration menu
H -key: switching between reduced temperature/com-
fortable temperature
I Boost-/OK-key: in automatic and manual Mode, ac-
tivation of the Boost function; in the holiday function
and in the Confirm/Save menu
E
F
H
I
) reduced temperature/
