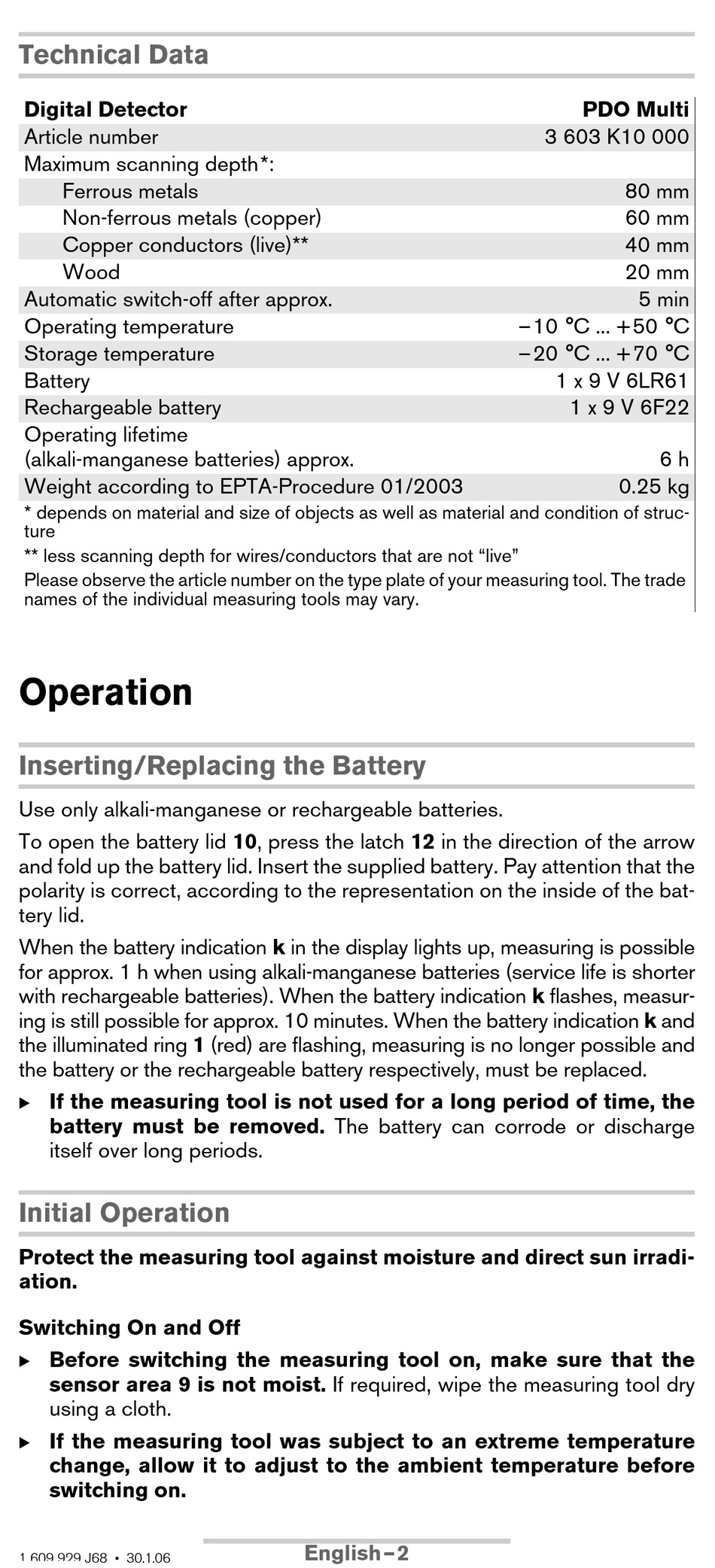

Technical Data; Inserting/Replacing The Battery; Initial Operation - Bosch PDO Multi Bedienungsanleitung

Technical Data

Digital Detector
Article number
Maximum scanning depth*:
Ferrous metals
Non-ferrous metals (copper)
Copper conductors (live)**
Wood
Automatic switch-off after approx.
Operating temperature
Storage temperature
Battery
Rechargeable battery
Operating lifetime
(alkali-manganese batteries) approx.
Weight according to EPTA-Procedure 01/2003
* depends on material and size of objects as well as material and condition of struc-
ture
** less scanning depth for wires/conductors that are not "live"
Please observe the article number on the type plate of your measuring tool. The trade
names of the individual measuring tools may vary.
Operation

Inserting/Replacing the Battery

Use only alkali-manganese or rechargeable batteries.
To open the battery lid 10, press the latch 12 in the direction of the arrow
and fold up the battery lid. Insert the supplied battery. Pay attention that the
polarity is correct, according to the representation on the inside of the bat-
tery lid.
When the battery indication k in the display lights up, measuring is possible
for approx. 1 h when using alkali-manganese batteries (service life is shorter
with rechargeable batteries). When the battery indication k flashes, measur-
ing is still possible for approx. 10 minutes. When the battery indication k and
the illuminated ring 1 (red) are flashing, measuring is no longer possible and
the battery or the rechargeable battery respectively, must be replaced.
B If the measuring tool is not used for a long period of time, the
battery must be removed. The battery can corrode or discharge
itself over long periods.

Initial Operation

Protect the measuring tool against moisture and direct sun irradi-
ation.
Switching On and Off
B Before switching the measuring tool on, make sure that the
sensor area 9 is not moist. If required, wipe the measuring tool dry
using a cloth.
B If the measuring tool was subject to an extreme temperature
change, allow it to adjust to the ambient temperature before
switching on.
1 609 929 J68 • 30.1.06
English–2
PDO Multi
3 603 K10 000
80 mm
60 mm
40 mm
20 mm
5 min
–10 °C ... +50 °C
–20 °C ... +70 °C
1 x 9 V 6LR61
1 x 9 V 6F22
0.25 kg
6 h
